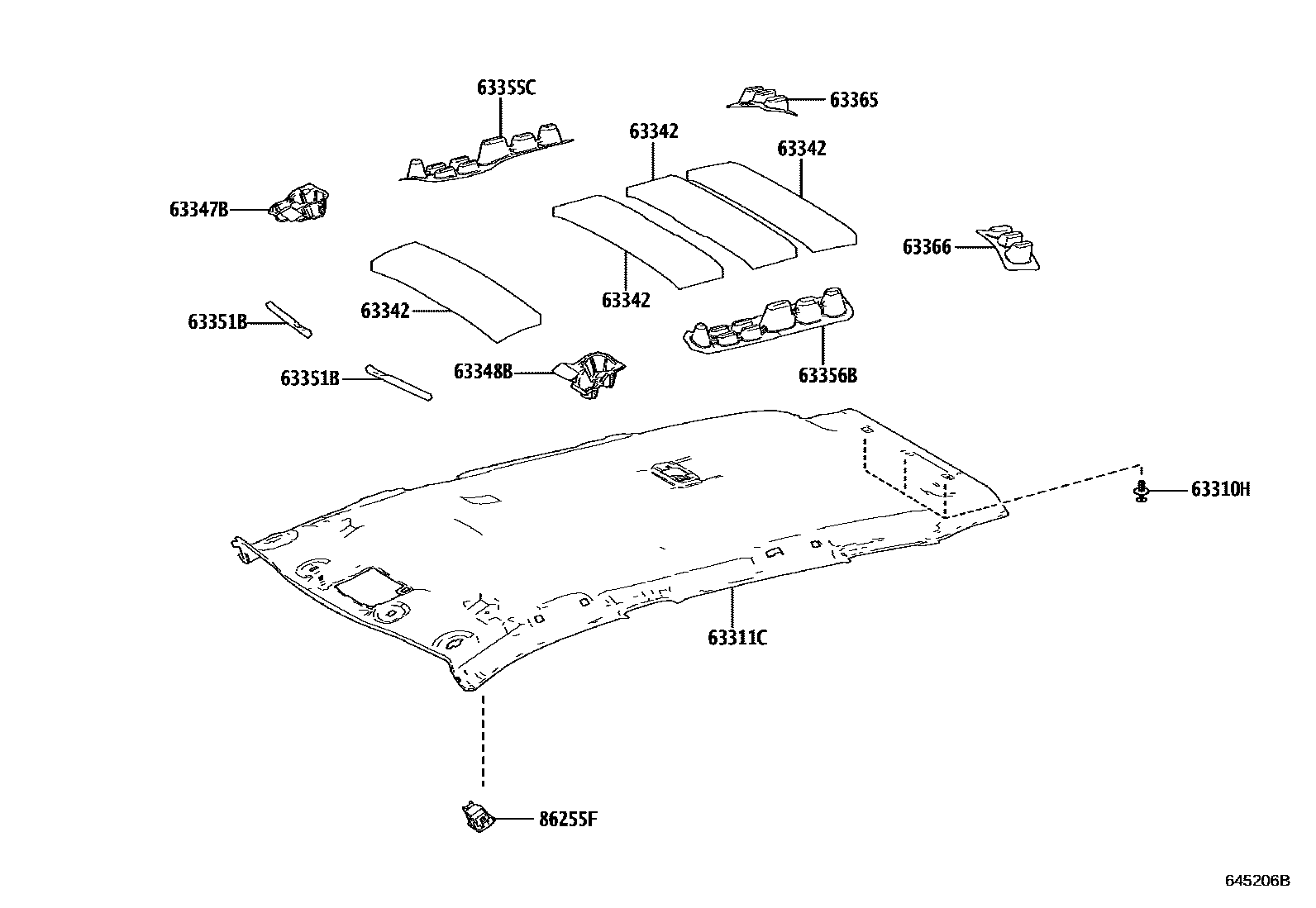

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1MOON ROOF

63310HCLIP(FOR ROOF HEADLINING)

main90467-05168-A0×3iMXGA1#..XLE202109-202211

FROMAGE,TRIM0#

main90467-05168-B1×3iMXGA1#..L,LE; MXGA1#..XLE202109-202211

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#

main90467-05168-C0×3iMXGH15..S,SE; MXGH15..XSE202412

BLACK,TRIM1#,2#; BLACK,TRIM2#

63311CHEADLINING, ROOF

main63310-0A250-B0iMXGA1#..L202109-202211

LT.GRAY,TRIM1#,2#

main63310-0A570-B0iMXGA1#..L202211-202412

LT.GRAY,TRIM1#,2#

main63310-0A570-C1iMXGH15..S202412

BLACK,TRIM1#,2#

main63310-0A280-A0supersedes 63310-0A260-A0iMXGA1#..XLE202109-202211

MOON ROOF-WITH,FROMAGE,TRIM0#

main63310-0A280-B0supersedes 63310-0A260-B0iMXGA1#..LE; MXGA1#..XLE202109-202211

MOON ROOF-WITH,LT.GRAY,TRIM1#,2#; MOON ROOF-WITH,LT.GRAY,TRIM2#

main63310-0A590-A0supersedes 63310-0A580-A0iMXGA1#,MXGH15..XLE202211-202412

MOON ROOF-WITH,FROMAGE,TRIM0#

main63310-0A590-B0supersedes 63310-0A580-B0iMXGA1#,MXGH15..LE; MXGA1#,MXGH15..XLE202412

MOON ROOF-WITH,LT.GRAY,TRIM1#,2#; MOON ROOF-WITH,LT.GRAY,TRIM2#

main63310-0A590-C1supersedes 63310-0A580-C1iMXGH15..SE; MXGH15..XSE202412

MOON ROOF-WITH,BLACK,TRIM1#,2#; MOON ROOF-WITH,BLACK,TRIM2#

63342PAD, ROOF SILENCER, NO.2

main63342-0A070×4iMXGA1#,MXGH15; MXGA1#,MXGH15..LE,SE,XLE,XSE202412

MOON ROOF-WITH

63347BPAD, ROOF SIDE RAIL SILENCER, RH

main63347-0A010iMXGA1#,MXGH15202412

63348BPAD, ROOF SIDE RAIL SILENCER, LH

main63348-0A010iMXGA1#,MXGH15202412

63351BPAD, ROOF HEADLINING

main63351-0A010×2iMXGA1#,MXGH15202412

63355CPAD, ROOF HEADLINING, RH

main63355-0A010iMXGA1#202109-202211

63356BPAD, ROOF HEADLINING, LH

main63356-0A010iMXGA1#,MXGH15202211-202412

63365SUPPORT, ROOF HEADLINING, NO.5

main63365-0A010iMXGA1#,MXGH15202211-202412

63366SUPPORT, ROOF HEADLINING, NO.6

main63366-0A010iMXGA1#,MXGH15202211-202412

86255FCASE, MICROPHONE

main86255-0C010-A0×2iMXGA1#,MXGH15..XLE202412

FROMAGE,TRIM0#

main86255-0C010-B0×2iMXGA1#,MXGH15..L,LE; MXGA1#,MXGH15..XLE202211-202412

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#

main86255-0C010-C0×2iMXGH15..S,SE; MXGH15..XSE202412

BLACK,TRIM1#,2#; BLACK,TRIM2#

main86255-78010-A4iMXGA1#..XLE202109-202211

FROMAGE,TRIM0#

main86255-78010-B1iMXGA1#..L; MXGA1#..LE; MXGA1#..XLE202109-202211

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#

11 parts on this diagram · 2 diagrams in section
