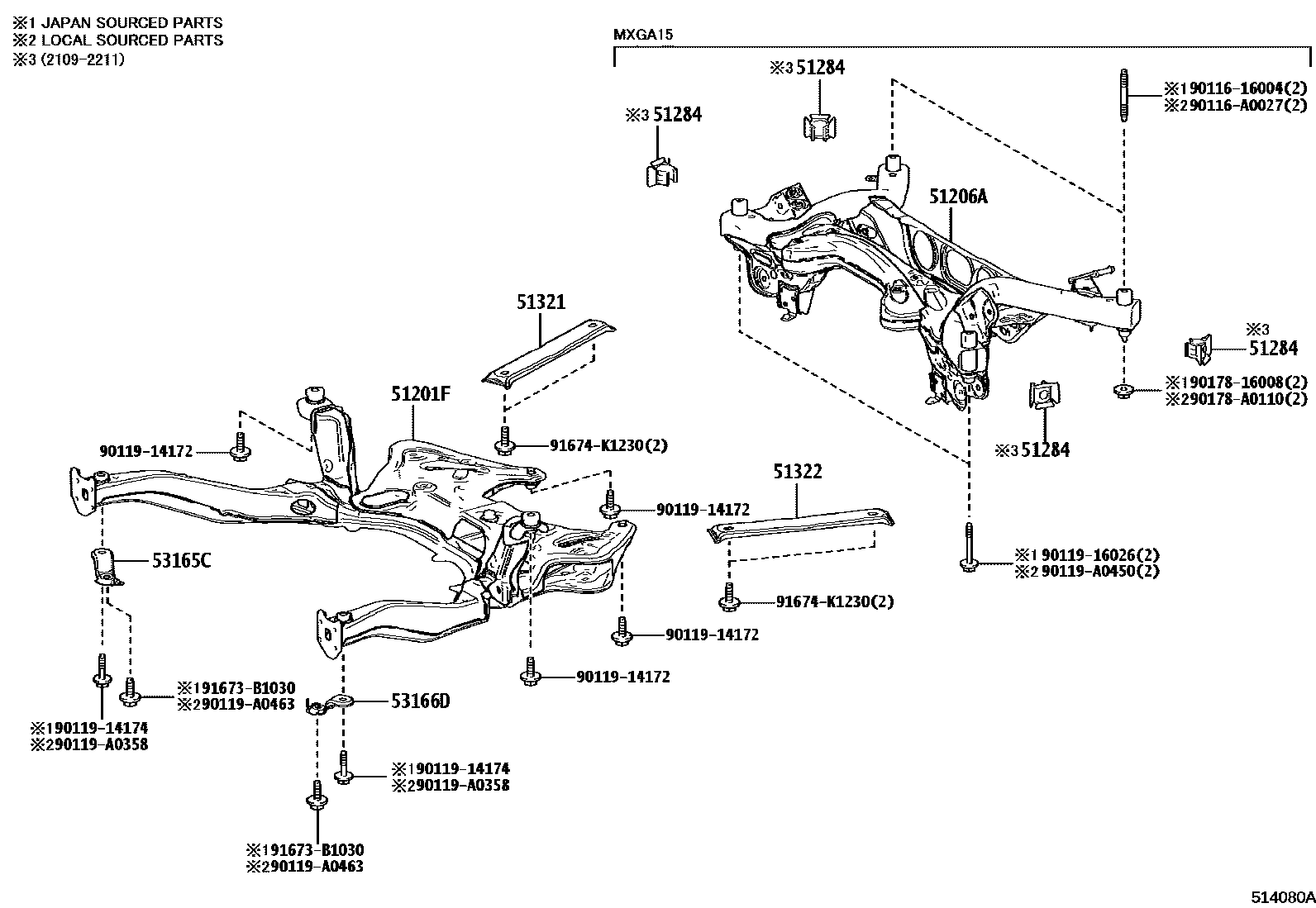

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER

51201FCROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0A040iMXGA1#,MXGH15202412

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0A010iMXGA15202109-202208

main51206-0A011iMXGA15202412

main51206-0A020iMXGH15202305-202412

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-02020×4iMXGA15202109-202211

51321GUSSET, CROSSMEMBER, NO.2 RH

main51321-0A030iMXGA1#,MXGH15202412

51322GUSSET, CROSSMEMBER, NO.2 LH

main51321-0A030iMXGA1#,MXGH15202412

53165CSUPPORT, RADIATOR, CENTER RH

main53165-0A020iMXGA1#,MXGH15202412

53166DSUPPORT, RADIATOR, CENTER LH

main53166-0A020iMXGA1#,MXGH15202412

9011616004

main90116-16004

90116A0027

main90116-A0027

9011914172

main90119-14172

9011914174

main90119-14174

9011916026

main90119-16026

90119A0358

main90119-A0358

90119A0450

main90119-A0450

90119A0463

main90119-A0463

9017816008

main90178-16008

90178A0110

main90178-A0110

91673B1030

main91673-B1030

91674K1230

main91674-K1230

19 parts on this diagram · 3 diagrams in section
