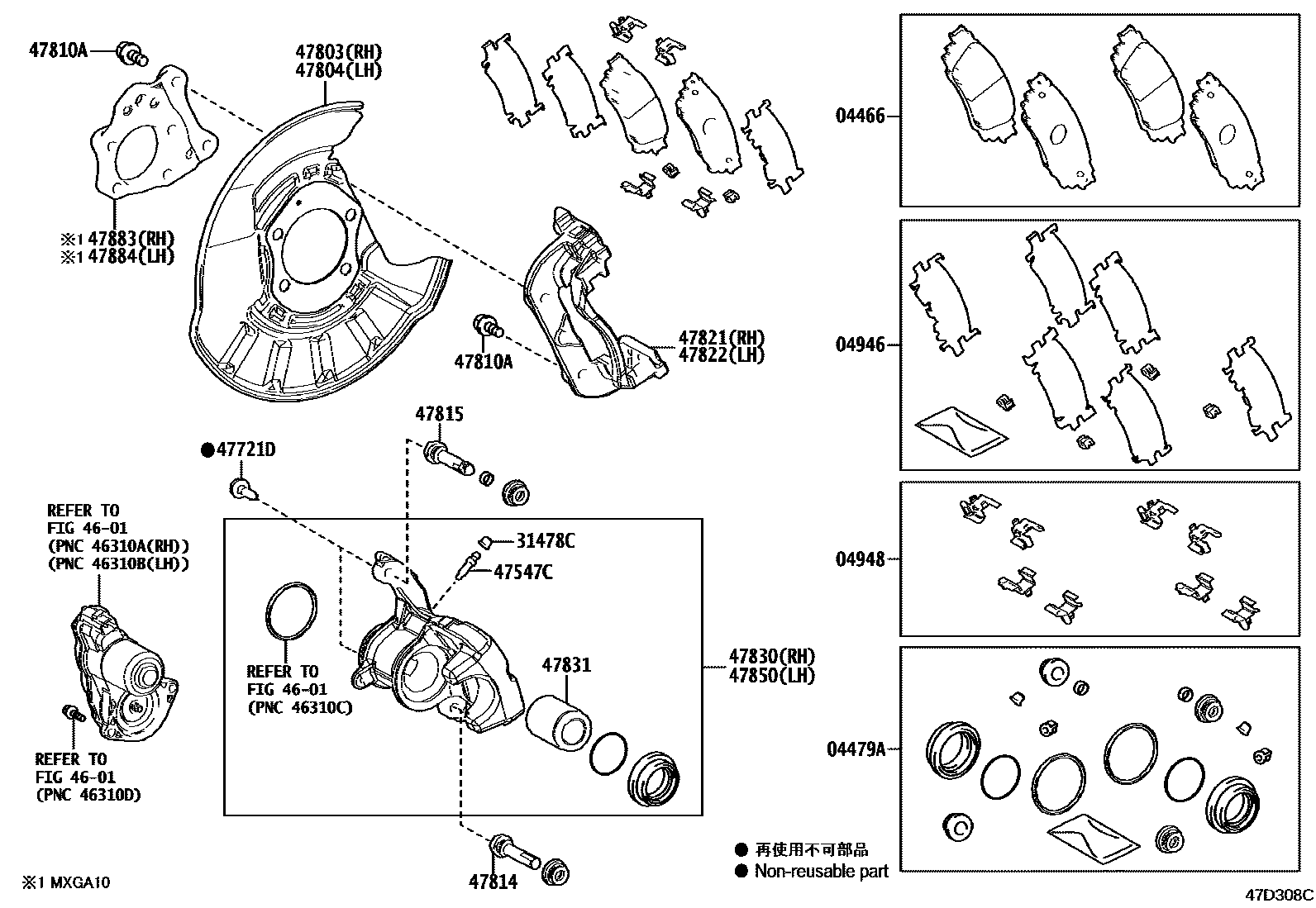

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02380iMXGA1#202109-202211

MARK NBK D6360

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02420iMXGA1#202109-202204

main04479-02540iMXGA1#202205-202211

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02120iMXGA1#,MXGH15202412

04948FITTING KIT, DISC BRAKE, REAR

main04948-33060iMXGA1#,MXGH15202412

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×4iMXGA10; MXGA15202109-202211

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iMXGA10; MXGA15,MXGH15202412

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA614×4iMXGA1#202109-202211

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-06010iMXGA15,MXGH15202412

main47803-0A010iMXGA10202412

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-06010iMXGA15,MXGH15202211-202412

main47804-0A010iMXGA10202412

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90080-10067×4iMXGA10202211-202412

(L)

main90080-10395×4iMXGA15,MXGH15202412

(L)

main90105-12174×4iMXGA15202109-202211

(J)

main90105-12208×4iMXGA10202109-202211

(J)

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-0R050×2iMXGA1#,MXGH15202412

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0R050×2iMXGA1#,MXGH15202412

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-06170iMXGA1#,MXGH15202211-202412

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-06160iMXGA1#,MXGH15202412

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0R050iMXGA10; MXGA15,MXGH15202412

47831PISTON, REAR DISC BRAKE

main47831-0A020×2iMXGA1#,MXGH15202211-202307

main47831-0E090×2iMXGA1#202109-202211

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0R050iMXGA1#,MXGH15202412

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-0A040iMXGA10202412

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-0A040iMXGA10202412

20 parts on this diagram · 1 diagram in section
