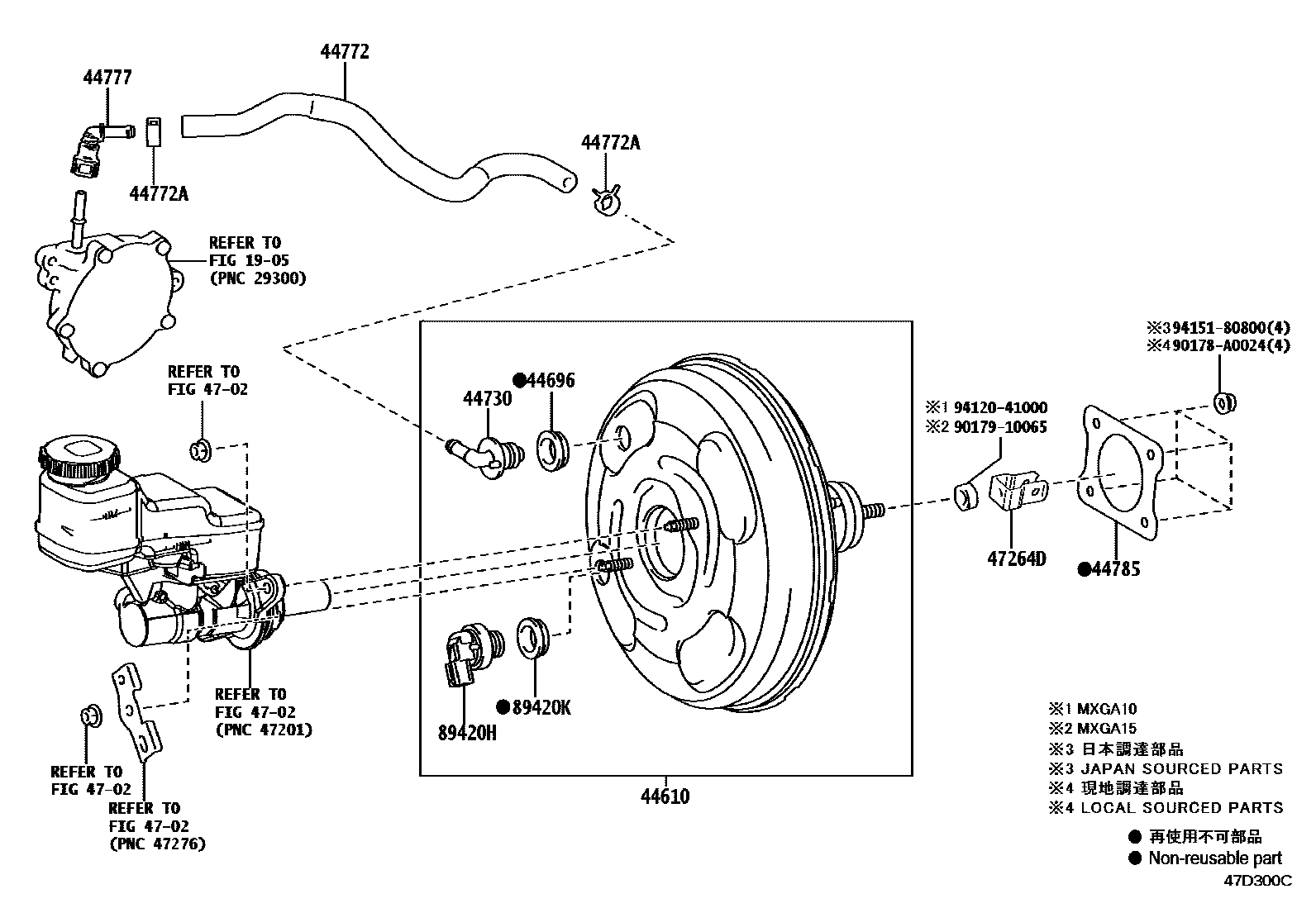

BRAKE BOOSTER & VACUUM TUBE

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-0A060iMXGA1#202109-202211

main44610-0A090iMXGA1#202412

44696GROMMET, CHECK VALVE

main90080-48071iMXGA1#202412

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMXGA1#202412

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02160iMXGA1#202412

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iMXGA1#202412

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMXGA1#202109-202211

44785GASKET, BRAKE BOOSTER

main44785-02060iMXGA1#202109-202211

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMXGA10202211-202412

main47264-16030iMXGA15202109-202211

89420HSENSOR ASSY, VACUUM

main89421-52020iMXGA1#202109-202211

main89421-71040iMXGA1#202412

89420KGROMMET, VACUUM SENSOR

main90080-48071iMXGA1#202412

90178A0024

main90178-A0024

9017910065

main90179-10065

9412041000

main94120-41000

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
