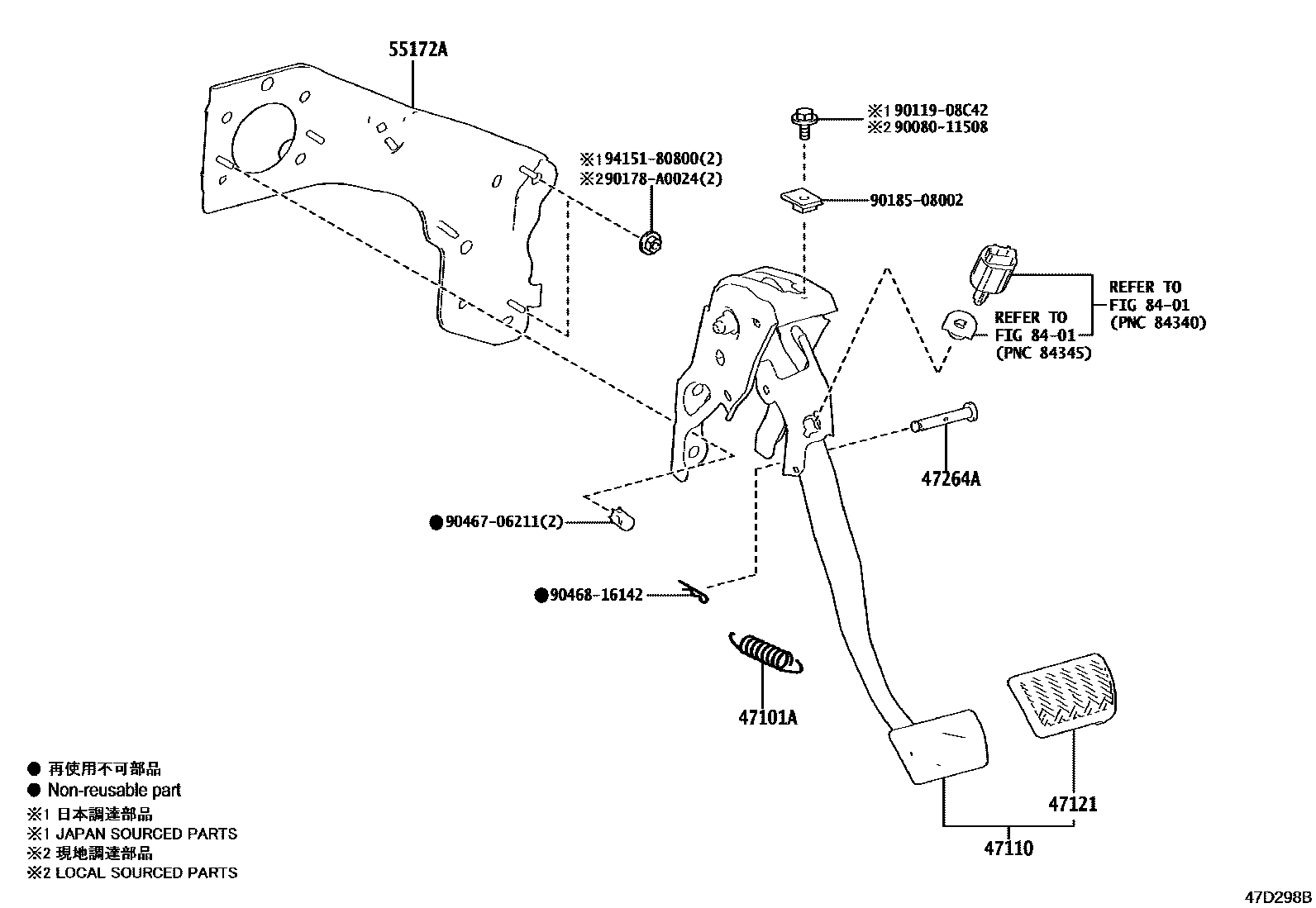

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-15009iMXGA10202412

main90507-15010iMXGA15202412

main90507-20037iMXGH15202412

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0A120iMXGA15202211-202412

main47110-0A170iMXGA10202412

main47110-0A180iMXGH15202305-202412

47121PAD, BRAKE PEDAL

main47121-16020iMXGH15202412

main47121-47010iMXGA1#202109-202211

47264APIN(FOR PUSH ROD)

main90249-06187iMXGA15202412

main90249-08221iMXGA10202109-202211

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0A050iMXGA1#,MXGH15202211-202412

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011508

main90080-11508

9011908C42

main90119-08C42

90178A0024

main90178-A0024

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
