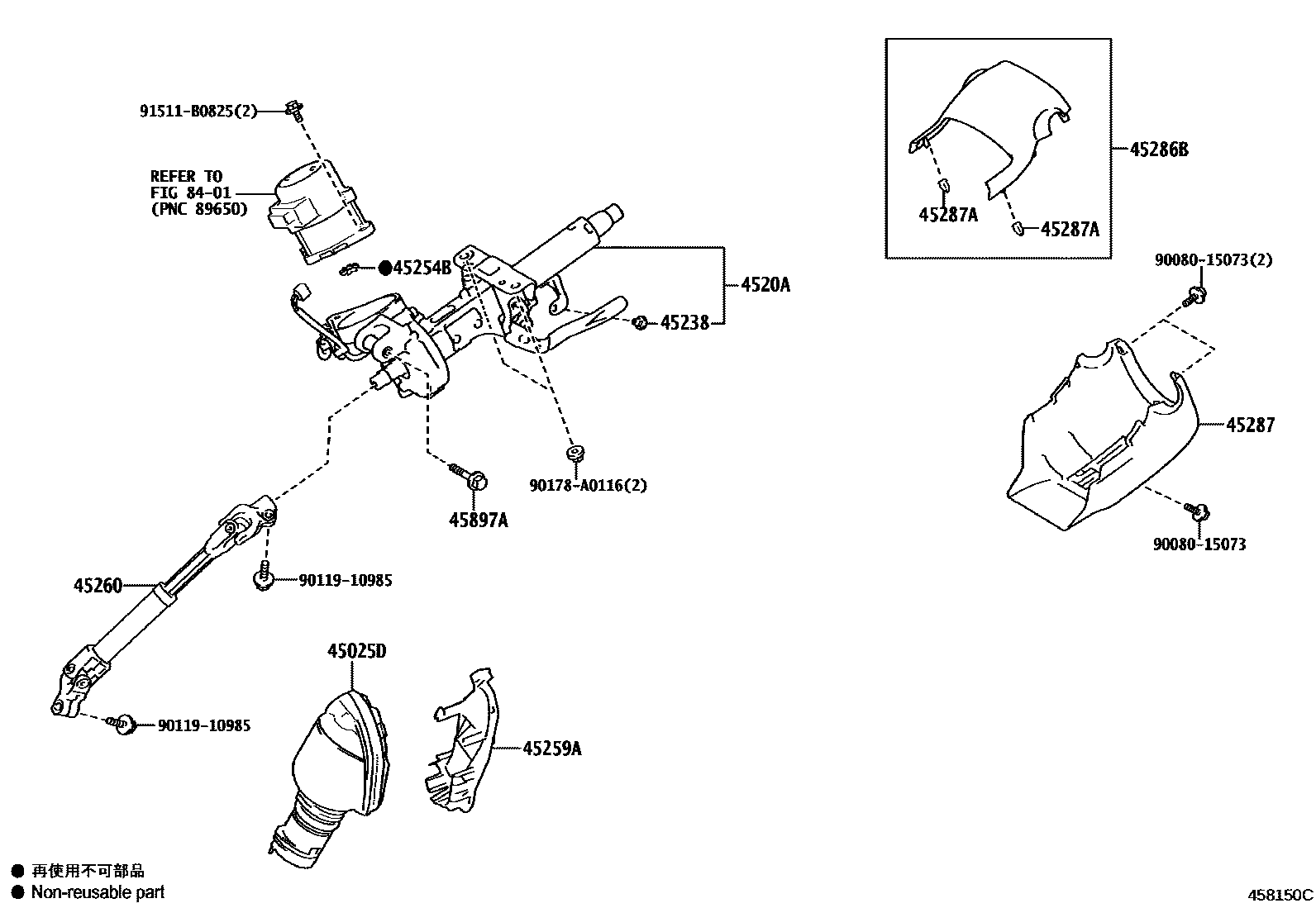

STEERING COLUMN & SHAFT

0001 1W(SMART ENTRY) 0002 1W/O(SMART ENTRY)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0A040iMXGA1#,MXGH15202109-202412

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0A070iMXGA1#..LE,XLE202109-202211

main4520A-0A080iMXGA1#..L202109-202211

main4520A-0A160iMXGA1#..L202211-202412

main4520A-0A170iMXGA1#,MXGH15..LE,S,SE,XLE,XSE202211-202412

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iMXGA1#202109-202412

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMXGA1#,MXGH15202109-202412

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0A040iMXGA1#,MXGH15202109-202412

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0A040iMXGA1#202109-202412

main45260-0A040iMXGH15..S,SE,XSE202412

PUERTO RICO SPEC

main45260-0A040iMXGH15..S,SE,XSE202412

MEXICO SPEC

main45260-0A040iMXGH15..S,SE,XSE202412

USA POSSESSION SPEC

main45260-0A080iMXGA1#,MXGH15..L,LE,XLE202211-202412

45286BCOVER, STEERING COLUMN, UPR

main45286-02600-C0iMXGA1#..L202109-202412

BLACK,TRIM1#,2#

main45286-02610-C0iMXGH15..XSE202305-202412

BLACK,TRIM2#

main45286-02610-C0iMXGA1#,MXGH15..XLE202109-202412

BLACK,TRIM0#,2#

main45286-02610-C0iMXGA1#,MXGH15..XLE202109-202412

BLACK,TRIM1#,2#

45287COVER, STEERING COLUMN, LWR

main45024-02040-C0iMXGA1#..L202109-202412

BLACK,TRIM1#,2#

main45024-02050-C0iMXGA1#,MXGH15..XLE202109-202412

BLACK,TRIM1#,2#

main45024-02050-C0iMXGH15..XSE202109-202412

BLACK,TRIM0#,2#

main45024-02050-C0iMXGH15..XSE202305-202412

BLACK,TRIM2#

45287ACLIP(FOR STEERING COLUMN COVER)

main90467-05171iMXGA1#,MXGH15202109-202412

45897BOLT, STEERING LOCK SET

main45897-08010iMXGA1#..L202109-202412

45897ABOLT, TILT STEERING PAWL SET

main90119-A0362iMXGA1#,MXGH15202109-202412

8401

9008015073

main90080-15073

9011910985

main90119-10985

90178A0116

main90178-A0116

91511B0825

main91511-B0825

16 parts on this diagram · 2 diagrams in section
