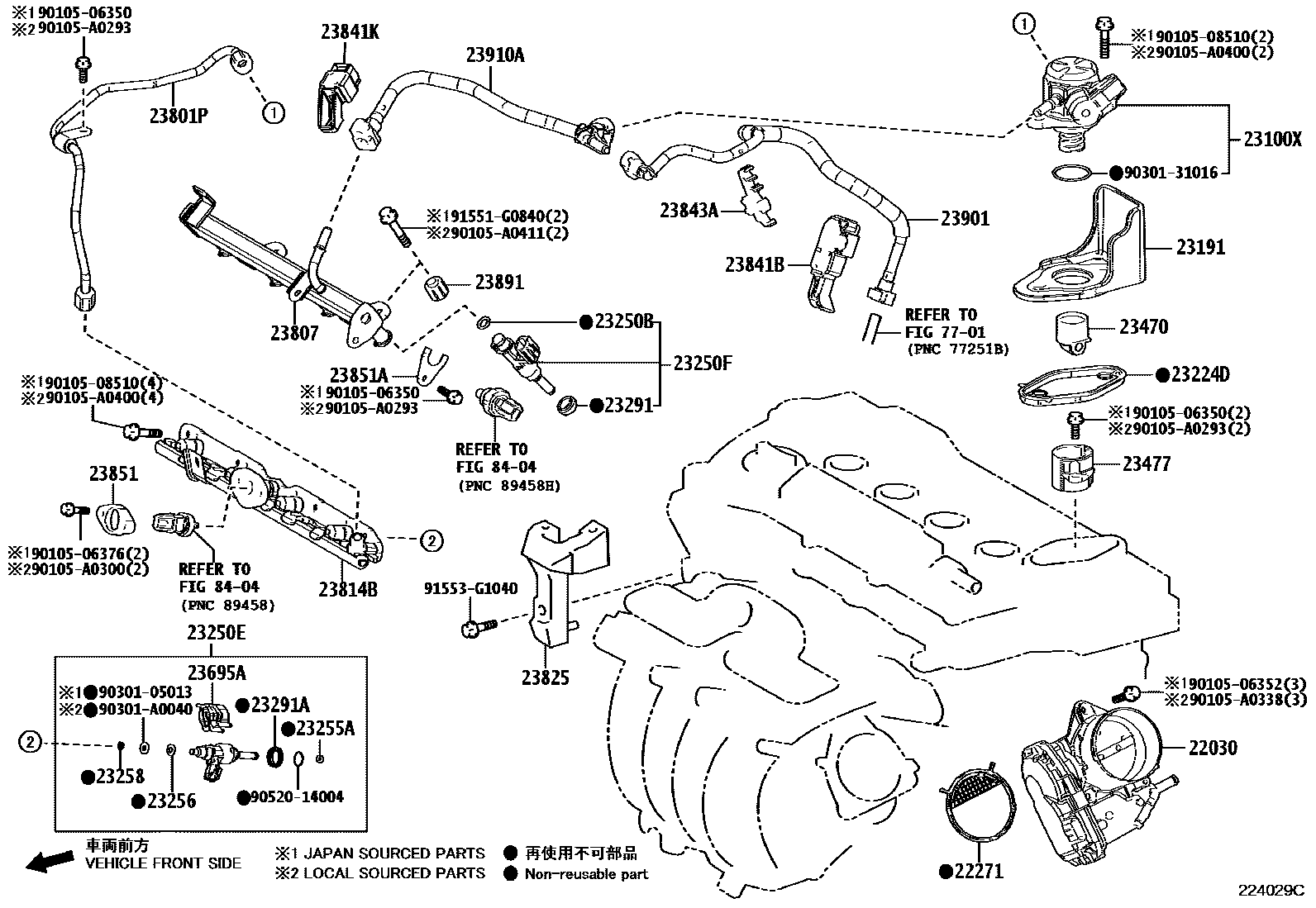

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-24010i202211-202412

(J),*704; *704

main22030-F2010i202211-202412

(L),*704

22271GASKET, THROTTLE BODY

main22271-24010i202211-202412

*704,*502

main22271-24020i202412

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-24060i202211-202412

*502

main23101-F0010i202211-202412

*704

23191FLANGE, FUEL PUMP

main23191-25050i202412

(J),*704

main23214-F2010i202412

*502

main23214-F2080i202302-202412

(L),*704

23224DGASKET, FUEL PUMP SPACER

main23224-25011i202211-202412

*502

main23224-F0010i202109-202110

main23224-F0011i202211-202412

*704

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i202211-202412

(J),*502

main90301-A0036×4i202412

*704

main90301-C0072×4i202412

(L); (L),*502

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01×4i202412

MARK 1,*502:REFER R/M; MARK 1,*704 P/N=24010,*RRM

main23209-24010-02×4i202412

MARK 2,*502:REFER R/M; MARK 2,*704 P/N=24010,*RRM

main23209-24010-03×4i202211-202412

MARK 3,*502:REFER R/M; MARK 3,*704 P/N=24010,*RRM

main23209-24010-04×4i202412

MARK 4,*502:REFER R/M; MARK 4,*704 P/N=24010,*RRM

main23209-24010-05×4i202211-202412

MARK 5,*502:REFER R/M; MARK 5,*704 P/N=24010,*RRM

main23209-24010-06×4i202109-202211

MARK 6,LABEL=-24010,*RRM

main23209-24010-07×4i202412

MARK 7,*502:REFER R/M; MARK 7,*704 P/N=24010,*RRM

main23209-24010-08×4i202211-202412

MARK 8,*502:REFER R/M; MARK 8,*704 P/N=24010,*RRM

main23209-24010-09×4i202211-202412

MARK 9,*502:REFER R/M; MARK 9,*704 P/N=24010,*RRM

main23209-F2010-01×4i202109-202211

MARK 1,LABEL=-F2010,*RRM

main23209-F2010-02×4i202109-202211

MARK 2,LABEL=-F2010,*RRM

main23209-F2010-03×4i202211-202412

MARK 3,*704 P/N=F2010,*RRM

main23209-F2010-04×4i202211-202412

MARK 4,*704 P/N=F2010,*RRM

main23209-F2010-05×4i202211-202412

MARK 5,*704 P/N=F2010,*RRM

main23209-F2010-06×4i202412

MARK 6,*704 P/N=F2010,*RRM

main23209-F2010-07×4i202211-202412

MARK 7,*704 P/N=F2010,*RRM

main23209-F2010-08×4i202412

MARK 8,*704 P/N=F2010,*RRM

main23209-F2010-09×4i202211-202412

MARK 9,*704 P/N=F2010,*RRM

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29115×4i202412

*502

main23209-29165×4i202412

*704

main23209-29185×4i202412

23255ASEAL, FUEL INJECTOR

main23255-25010×4i202412

(J),*704; *502

main23255-F0010×4i202211-202412

(L),*704

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i202412

(J),*704; *502

main23256-F0010×4i202109-202211

(L)

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31020×4i202412

PNC23250E=23209F2010

main23258-47010×4i202211-202412

*502; PNC23250E=2320924010

23291INSULATOR, INJECTOR VIBRATION

main23291-0V020×4i202412

*704

main23291-28020×4i202412

*502

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4i202412

*502; *704

23470LIFTER ASSY, FUEL PUMP

main23470-25010i202211-202412

*502

main23470-F0010i202412

*704

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i202412

(J); (J),*704,(J),*502

main23477-F2010i202305-202412

(L)

main23477-F2020i202211-202412

(L),*502

23695ACLAMP, NOZZLE HOLDER

main23695-24010×4i202412

*502; *704

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-24070i202412

*502

main23801-F2010i202109-202211

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-24020i202211-202412

*502

main23814-F2020i202109-202211

23814BPIPE, FUEL DELIVERY

main23814-24010i202109-202211

main23814-24011i202211-202412

*502; *704

23825GUARD, FUEL DELIVERY

main23825-24010i202412

(J)

main23825-F2050i202412

(L)

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-24040i202109-202211

main23841-37160i202305-202412

23841KCLAMP, FUEL PIPE

main23841-25040i202109-202211

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-24010i202412

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202109-202211

MADE IN JAPAN

main23851-F2010i202109-202211

MADE IN USA

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i202412

(J),*704; *502

main23851-F2080i202412

(L),*704

23891SPACER, FUEL DELIVERY

main23891-24010×2i202211-202412

*502; *704

23901TUBE SUB-ASSY, FUEL

main23901-F2200i202412

main23901-F2230i202305-202412

23910ATUBE SUB-ASSY, FUEL

main23901-24081i202305-202412

main23901-24100i202109-202211

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506352

main90105-06352

9010506376

main90105-06376

9010508510

main90105-08510

90105A0293

main90105-A0293

90105A0300

main90105-A0300

90105A0338

main90105-A0338

90105A0400

main90105-A0400

90105A0411

main90105-A0411

9030105013

main90301-05013

9030131016

main90301-31016

90301A0040

main90301-A0040

9052014004

main90520-14004

91551G0840

main91551-G0840

91553G1040

main91553-G1040
