VACUUM PUMP

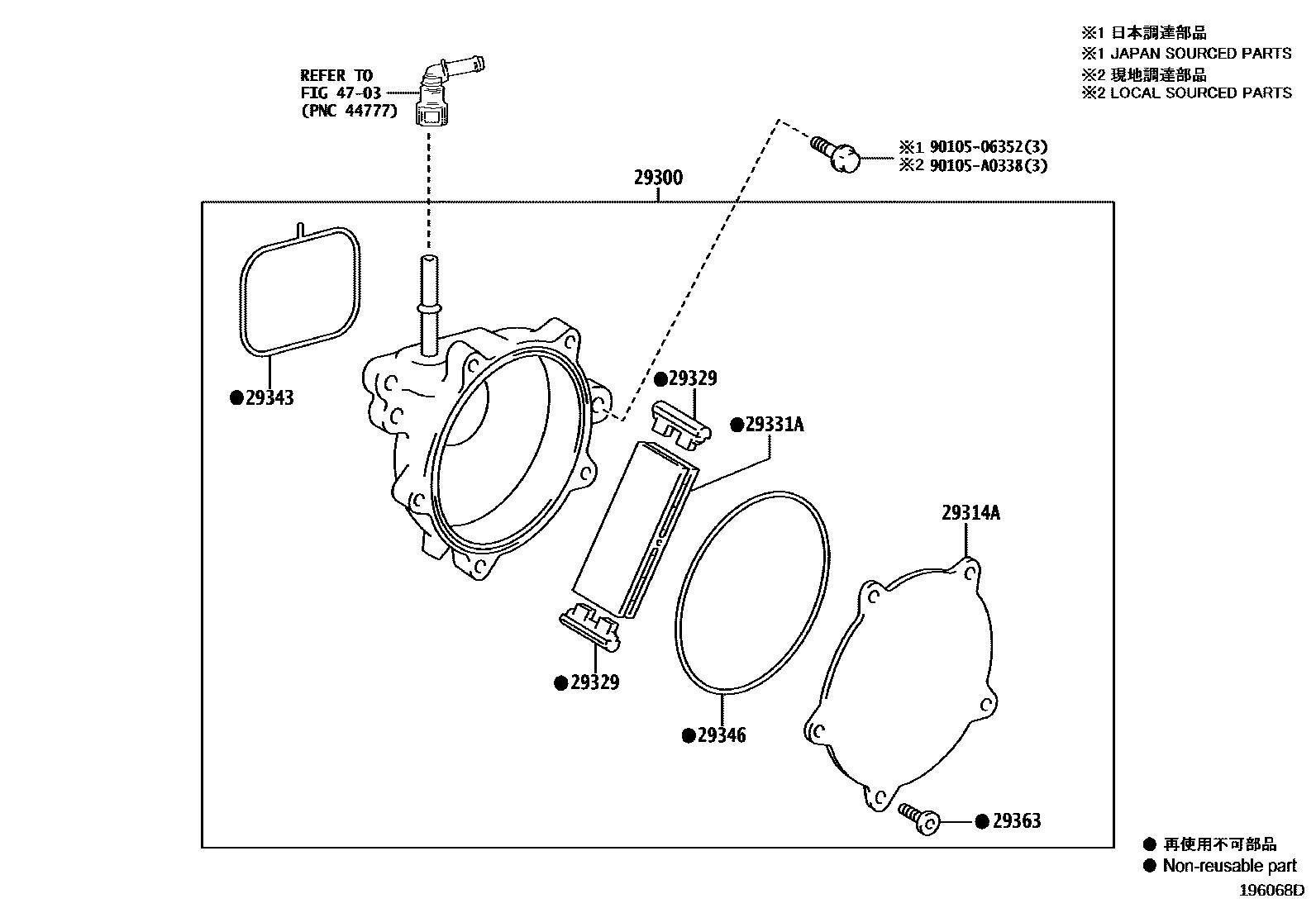

Parts diagram

29300PUMP ASSY, VACUUM

main29300-24011i202311-202412

TAIHO

main29300-F2010i202211-202412

TAIHO

main29300-F2010i202109-202211

main29300-F2031i202211-202412

BOSCH

29314ACOVER, END

main29314-25010i202311-202412

TAIHO

main29314-F0010i202211-202412

TAIHO

main29314-F0010i202109-202211

29329CAP, VACUUM PUMP VANE

main29329-24011i202311-202412

TAIHO

main29329-F2010i202211-202412

TAIHO

main29329-F2010i202109-202211

29331AVANE, VACUUM PUMP

main29331-24010i202311-202412

TAIHO

main29331-F2010i202109-202211

main29331-F2010i202211-202412

TAIHO

29343RING, O VACUUM PUMP, NO.1

main29343-25010i202311-202412

TAIHO

main29343-F0010i202211-202412

TAIHO

main29343-F0010i202109-202211

main29343-F2030i202311-202412

BOSCH

main29343-F2030i202211-202311

29346RING, O VACUUM PUMP COVER

main29346-25010i202311-202412

TAIHO

main29346-F0010i202109-202211

main29346-F0010i202211-202412

TAIHO

29363SCREW, HOLLOW VACUUM PUMP

main29363-25010i202311-202412

TAIHO

main29363-F0010i202211-202412

TAIHO

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9010506352

main90105-06352

90105A0338

main90105-A0338

10 parts on this diagram · 1 diagram in section
