STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-25070iM20AFKS..MXGA1#202412

28100STARTER ASSY

main28100-F2110iM20AFKS..MXGA1#202412

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-25070iM20AFKS..MXGA1#202412

28140HOLDER ASSY, STARTER BRUSH

main28140-21100iM20AFKS..MXGA1#202412

28150SWITCH ASSY, MAGNET STARTER

main28150-47250iM20AFKS..MXGA1#202412

28160ARMATURE ASSY, STARTER

main28160-36110iM20AFKS..MXGA1#202412

28181TERMINAL, STARTER

main28181-24030iM20AFKS..MXGA1#202412

28192ACOVER, STARTER, NO.1

main28192-F2100iM20AFKS..MXGA1#202412

28192BCOVER, STARTER, NO.2

main28192-F2110iM20AFKS..MXGA1#202412

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-37100iM20AFKS..MXGA1#202412

9010510592

main90105-10592

90105A0394

main90105-A0394

90178A0024

main90178-A0024

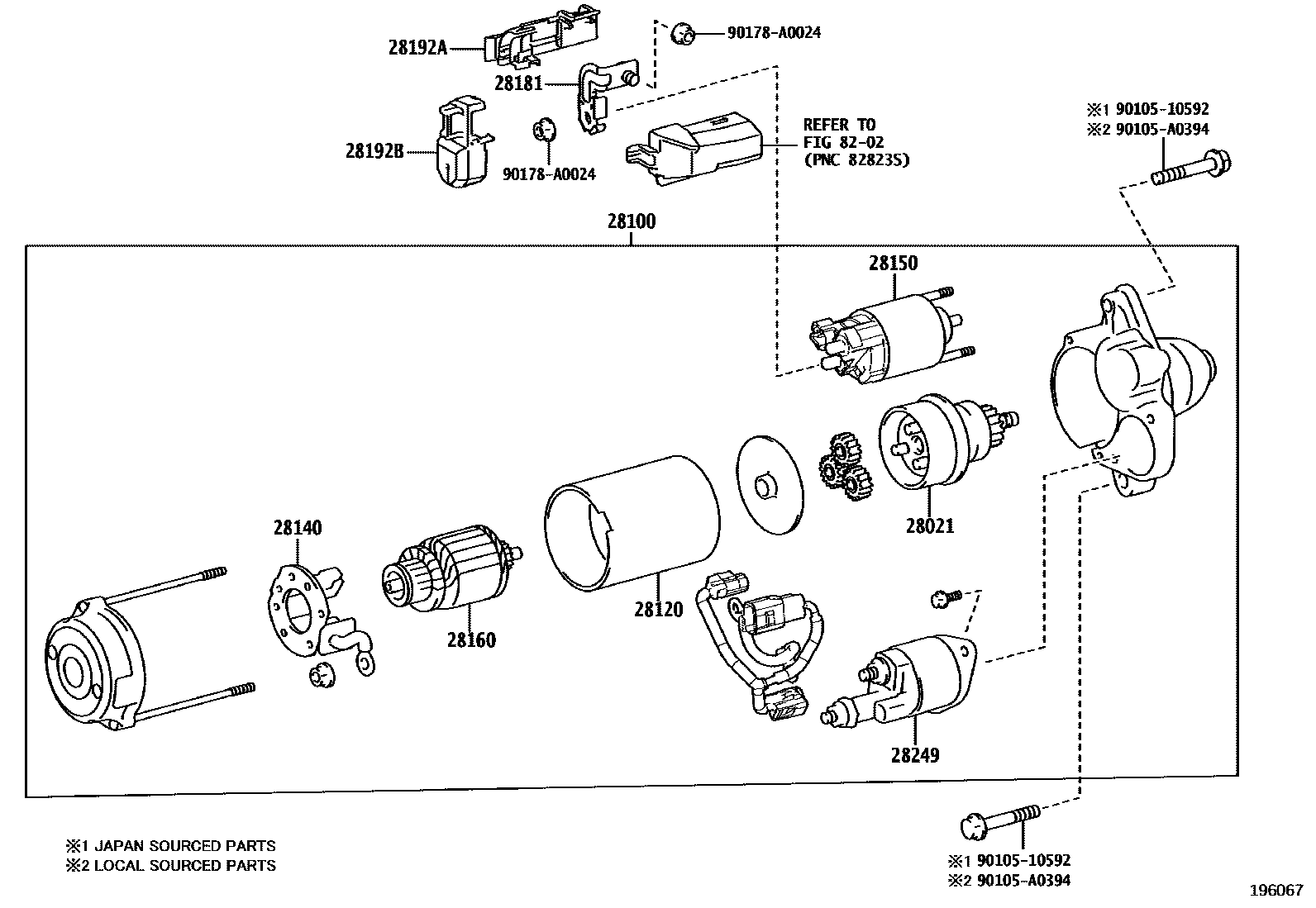

13 parts on this diagram · 1 diagram in section
