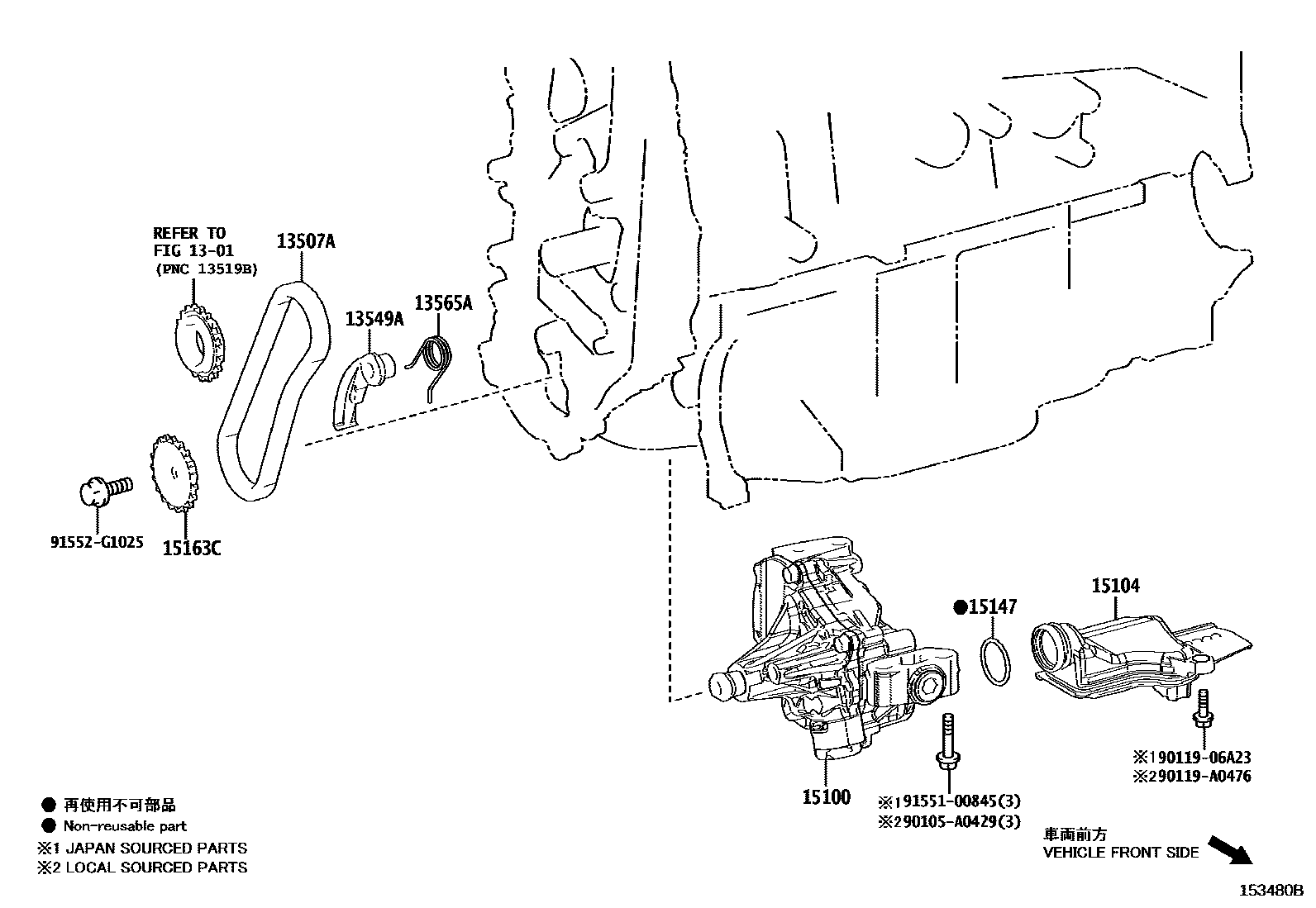

ENGINE OIL PUMP

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020iM20AFKS..MXGA1#202412

*502

main13507-F2010iM20#..MXGA1#,MXGH15202211-202412

*704

13549APLATE, CHAIN TENSIONER

main13549-25020iM20#..MXGA1#,MXGH15; M20AFKS..MXGA1#202412

(J),*704; *502

main13549-F0010iM20#..MXGA1#,MXGH15202211-202412

(L),*704

13565ASPRING, CHAIN DAMPER

main13565-25010iM20#..MXGA1#,MXGH15; M20AFKS..MXGA1#202412

(J),*704; *502

main13565-F0010iM20AFKS..MXGA1#202109-202211

(L)

15100PUMP ASSY, OIL

main15100-F2010iM20#..MXGA1#,MXGH15202412

*704

main15100-F2020iM20AFKS..MXGA1#202412

*502

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20#..MXGA1#,MXGH15; M20AFKS..MXGA1#202412

(J),*704; *502

main15104-F2010iM20#..MXGA1#,MXGH15202412

(L),*704

15147GASKET, OIL STRAINER

main15147-25010iM20#..MXGA1#,MXGH15; M20AFKS..MXGA1#202412

*502; *704

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iM20AFKS..MXGA1#202109-202211

(J)

main15163-F0010iM20#..MXGA1#,MXGH15202211-202412

(L),*704

main15163-F2010iM20AFKS..MXGA1#202211-202412

*502

90105A0429

main90105-A0429

9011906A23

main90119-06A23

90119A0476

main90119-A0476

9155100845

main91551-00845

91552G1025

main91552-G1025

13 parts on this diagram · 1 diagram in section
