CAMSHAFT & VALVE

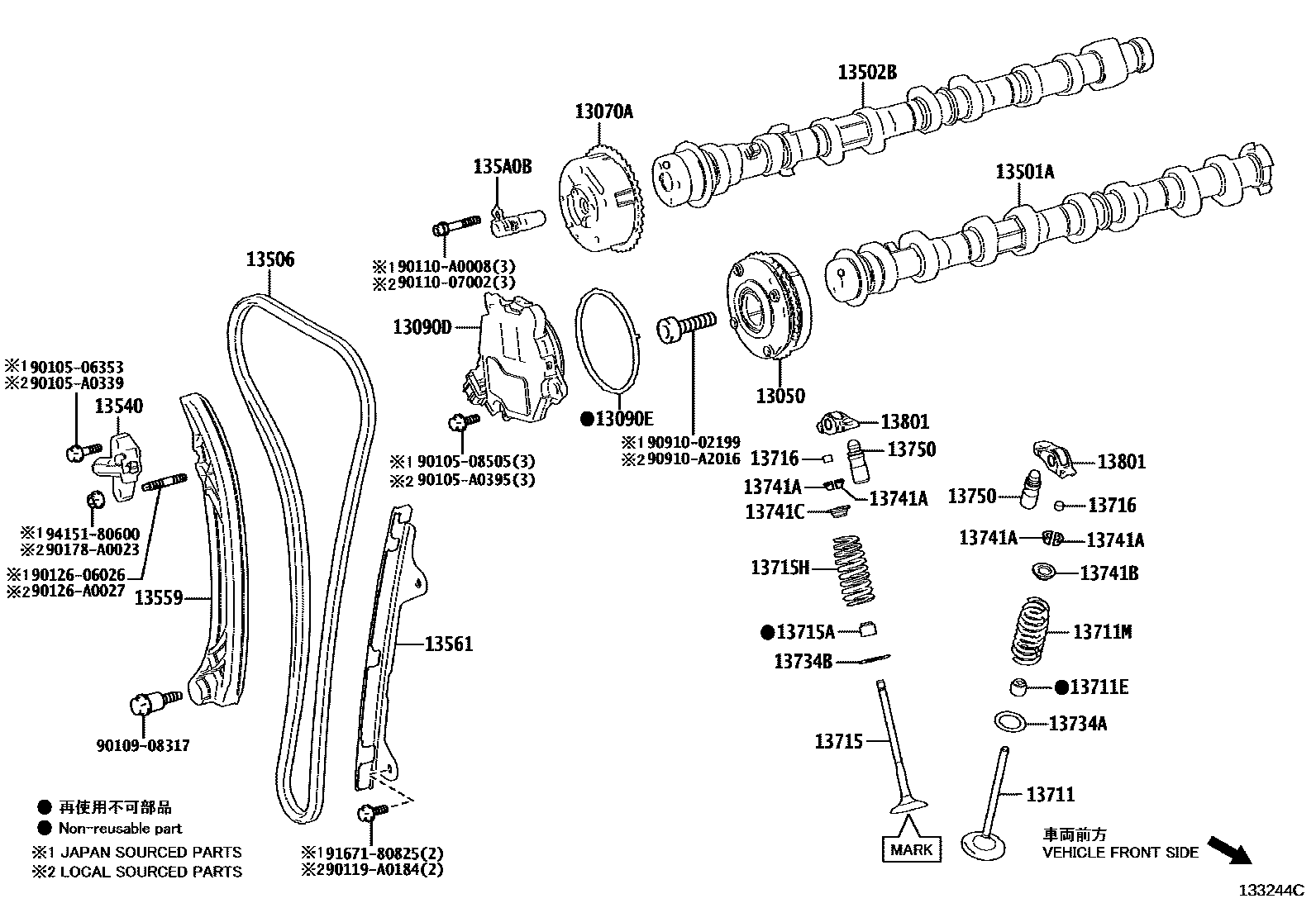

Parts diagram

13050GEAR ASSY, CAMSHAFT TIMING

main13050-25010i202109-202211

(J)

main13050-F0010i202109-202211

(L)

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-25020i202109-202211

(J)

main13070-25030i202412

(J),*502; (J),*704

main13070-F0020i202109-202211

(L)

main13070-F0030i202211-202412

(L),*502; (L),*704

13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU

main13090-25010i202211-202412

(J),*704; *502

main13090-F0010i202412

(L),*704

13090ERING, O(FOR CAM TIMING CONTROL MOTOR)

main90301-92005i202412

*502; *704

13501ACAMSHAFT SUB-ASSY, INTAKE

main13501-24020i202109-202211

(J)

main13501-24030i202412

(J)

main13501-F2010i202109-202211

(L)

main13501-F2020i202211-202412

*502

main13501-F2120i202305-202412

(L),*704

13502BCAMSHAFT SUB-ASSY, EXHAUST

main13502-24010i202109-202211

(J)

main13502-24020i202412

(J)

main13502-F2010i202412

(L),*704

main13502-F2020i202211-202412

*502

main13502-F2120i202412

(L)

13506CHAIN SUB-ASSY

main13506-24020i202211-202412

*502

main13506-F2010i202211-202412

*704

13540TENSIONER ASSY, CHAIN, NO.1

main13540-25020i202412

(J),*704; *502

main13540-F0010i202109-202211

(L)

13559SLIPPER, CHAIN TENSIONER

main13559-24010i202412

*502; *704

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-15010i202211-202412

*502; *704

135A0BVALVE ASSY, CAMSHAFT TIMING

main135A0-25010i202109-202211

(J)

main135A0-25020i202412

(J),*502; (J),*704

main135A0-F0010i202109-202211

(L)

main135A0-F0020i202412

(L),*502; (L),*704

13711VALVE, INTAKE

main13711-24040×8i202412

(J); (J),*704,*502

main13711-F2010×8i202412

(L); (L),*704

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31043×8i202305-202412

main90913-02101×8i202412

*502

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90501-31035×8i202412

main90501-33034×8i202211-202412

*502

main90501-A0141×8i202109-202211

13715VALVE, EXHAUST

main13715-15090×8i202412

*704,MARK=EX; MARK=EX

main13715-24040×8i202412

(J),*704,MARK=EH; (J),MARK=EH

main13715-F2010×8i202412

(L),*704,MARK=EH; (L),MARK=EH

main13715-F2020×8i202211-202412

*502

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31101×8i202412

*704

main90913-02112×8i202412

*502

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90501-31035×8i202412

main90501-33035×8i202211-202412

*502

main90501-A0139×8i202109-202211

13716CAP, VALVE STEM

main13716-25010×16i202211-202412

*502

main13716-F0010×16i202412

*704

13734ASEAT, INTAKE VALVE SPRING

main13734-0P010×8i202412

(L); (L),*704

main13734-62020×8i202305-202412

(J); (J),*704

13734BSEAT, EXHAUST VALVE SPRING

main13734-0P010×8i202412

(L); (L),*704

main13734-62020×8i202305-202412

(J); (J),*704

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×32i202211-202412

*502

main90913-A3001×32i202412

*704

13741BRETAINER, INTAKE VALVE SPRING

main13741-0P020×8i202412

*704

main13741-36010×8i202412

*502

13741CRETAINER, EXHAUST VALVE SPRING

main13741-0P020×8i202412

*704

main13741-36010×8i202211-202412

*502

13750ADJUSTER ASSY, VALVE LASH

main13750-25010×16i202412

(J),*502; (J),*704

main13750-F0010×16i202109-202211

(L)

main13750-F2020×16i202211-202403

*502

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-25010×16i202412

(J),*502; (J),*704

main13801-F0010×16i202412

(L),*704

main13801-F2020×16i202403-202412

(L),*502

9010506353

main90105-06353

9010508505

main90105-08505

90105A0339

main90105-A0339

90105A0395

main90105-A0395

9010908317

main90109-08317

9011007002

main90110-07002

90110A0008

main90110-A0008

90119A0184

main90119-A0184

9012606026

main90126-06026

90126A0027

main90126-A0027

90178A0023

main90178-A0023

9091002199

main90910-02199

90910A2016

main90910-A2016

9167180825

main91671-80825

9415180600

main94151-80600

40 parts on this diagram · 1 diagram in section
