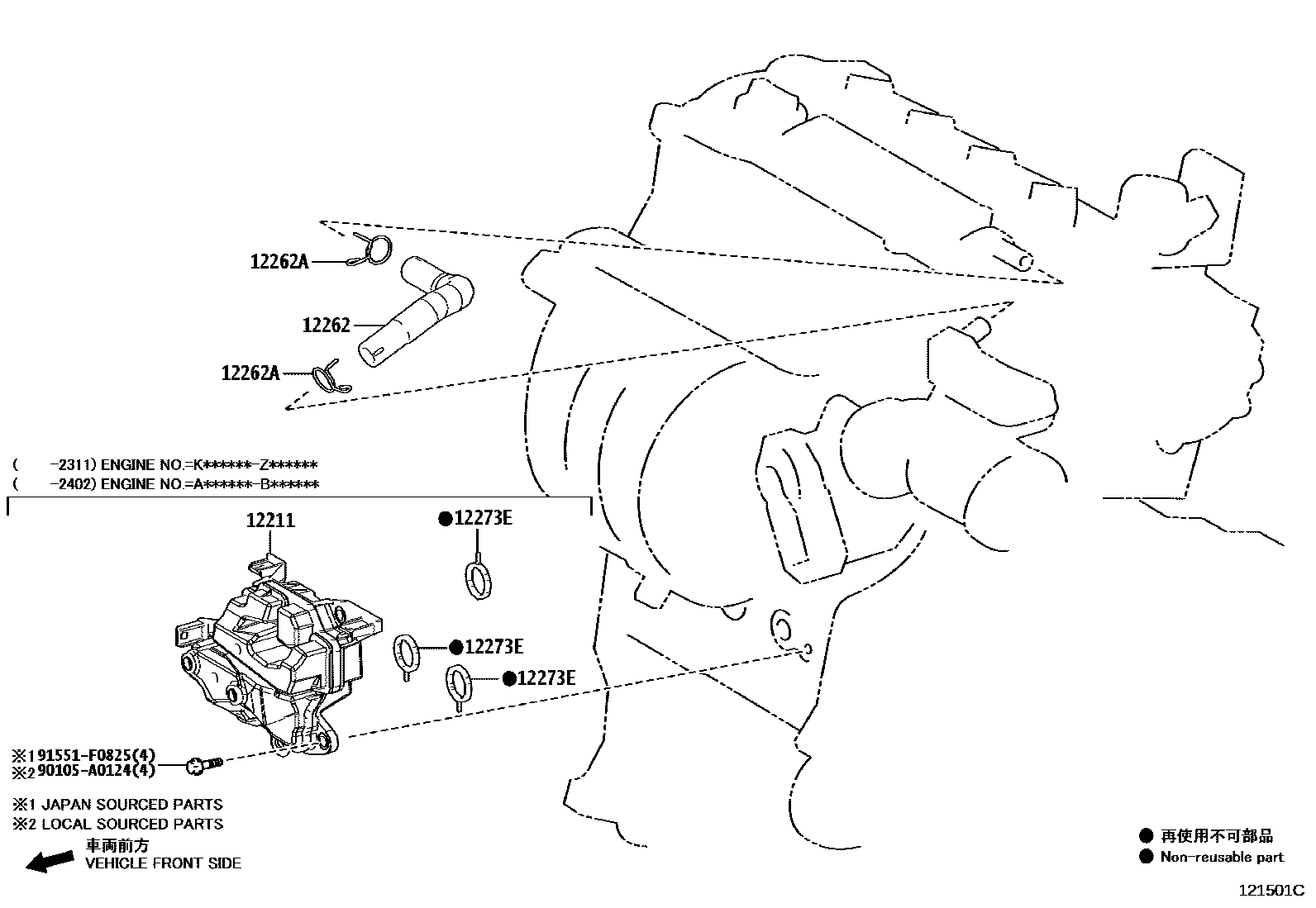

VENTILATION HOSE

0001 1 0002 1

12211CASE, VENTILATION, NO.1

main12211-24010iM20AFKS..MXGA1#202211-202402

*502

main12211-F2010iM20AFKS..MXGA1#202109-202211

main12211-F2011iM20#..MXGA1#,MXGH15202211-202311

*704

12262HOSE, VENTILATION, NO.2

main12262-24020iM20AFKS..MXGA1#202211-202412

main12262-24040iM20AFXS..MXGH15202305-202412

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004×2iM20#..MXGA1#,MXGH15202412

12273EGASKET(FOR VENTILATION CASE)

main12273-24010×3iM20AFKS..MXGA1#202109-202211

90105A0124

main90105-A0124

91551F0825

main91551-F0825

6 parts on this diagram · 2 diagrams in section
