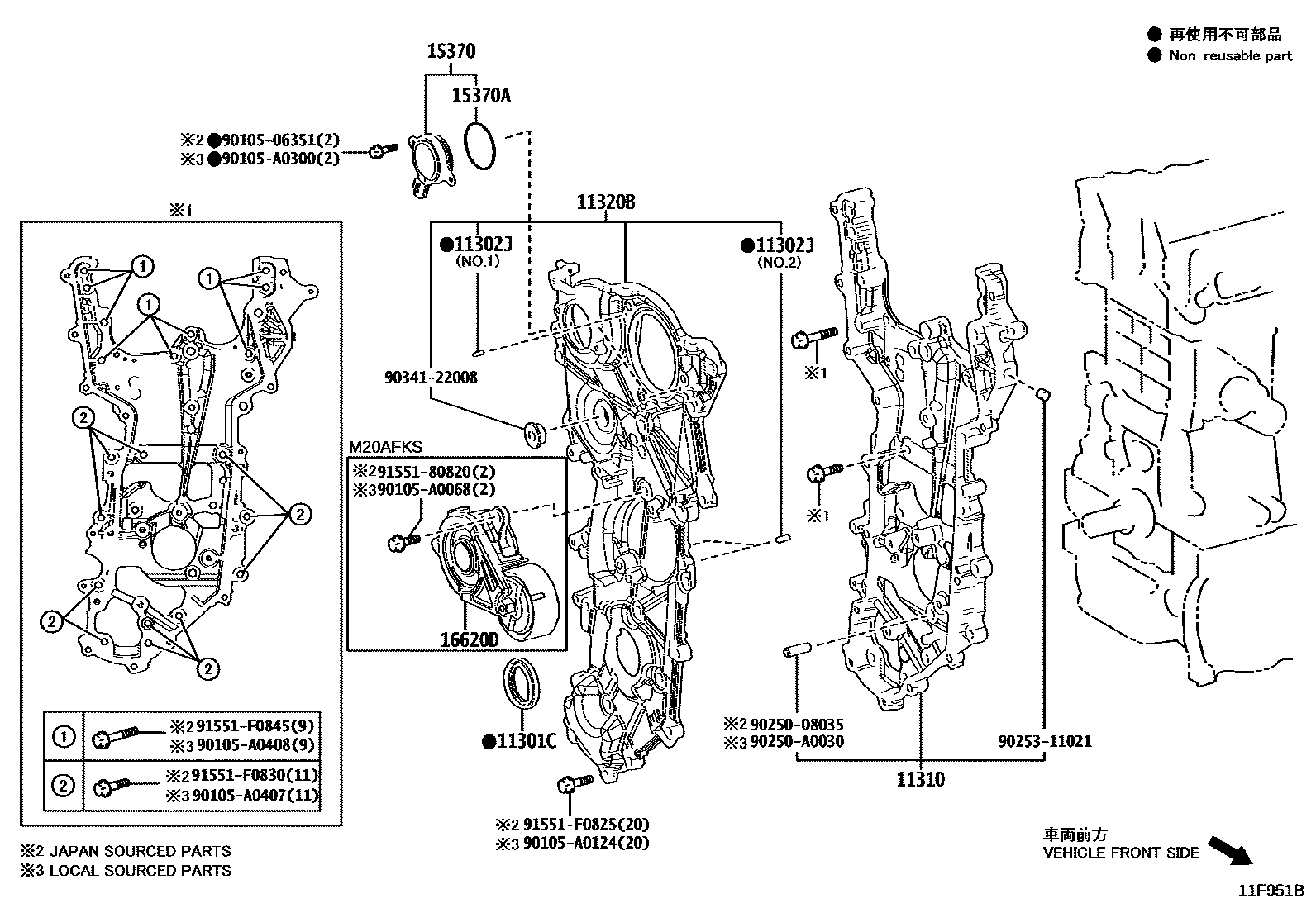

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40044iM20AFKS..MXGA1#202109-202211

(J)

main90311-A0033iM20AFKS..MXGA1#202109-202211

(L)

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097×2iM20AFKS..MXGA1#202412

*502,NO.1

main90250-06003×2iM20AFKS..MXGA1#202211-202412

*502,NO.2

main90250-A0028×2iM20#..MXGA1#,MXGH15202211-202412

*704,NO.2

main90250-A0029×2iM20#..MXGA1#,MXGH15202211-202412

*704,NO.1

11310COVER ASSY, TIMING CHAIN

main11310-F2010iM20AFKS..MXGA1#202109-202211

main11310-F2020iM20AFKS..MXGA1#202211-202412

*502

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-F2010iM20#..MXGA1#,MXGH15202412

*704

main11320-F2020iM20AFKS..MXGA1#202211-202412

*502

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020iM20#..MXGA1#,MXGH15; M20AFKS..MXGA1#202211-202412

(J),*502; (J),*704

main15370-F0020iM20#..MXGA1#,MXGH15; M20AFKS..MXGA1#202211-202412

(L),*502; (L),*704

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006iM20#..MXGA1#,MXGH15; M20AFKS..MXGA1#202412

(J),*502; (J),*704

main90301-T0079iM20#..MXGA1#,MXGH15; M20AFKS..MXGA1#202211-202412

(L),*502; (L),*704

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-24010iM20AFKS..MXGA1#202211-202301

*502

main16620-24030iM20AFKS..MXGA1#202412

*502

main16620-F2010iM20AFKS..MXGA1#202109-202211

main16620-F2060iM20AFKS..MXGA1#202412

*704

9010506351

main90105-06351

90105A0068

main90105-A0068

90105A0124

main90105-A0124

90105A0300

main90105-A0300

90105A0407

main90105-A0407

90105A0408

main90105-A0408

9025008035

main90250-08035

90250A0030

main90250-A0030

9025311021

main90253-11021

9034122008

main90341-22008

9155180820

main91551-80820

91551F0825

main91551-F0825

91551F0830

main91551-F0830

91551F0845

main91551-F0845

21 parts on this diagram · 1 diagram in section
