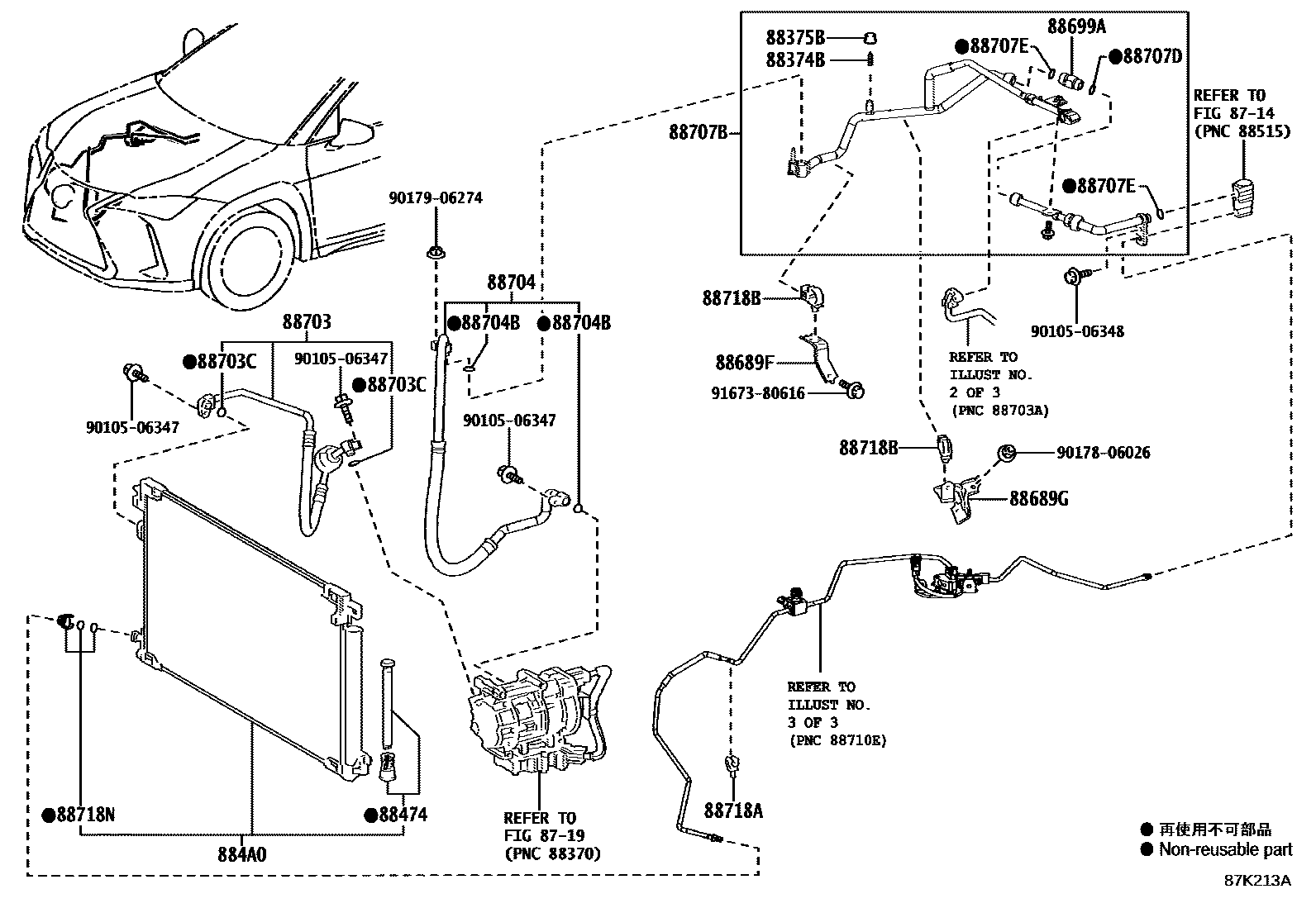

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iKMA10202111

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iKMA10202111

88474DRYER, COOLER

main88474-12020iKMA10202111

884A0CONDENSER ASSY, COOLER

main88460-10320iKMA10202111

88689FBRACKET, COOLER, NO.2

main88688-76080iKMA10202111

88689GBRACKET, COOLER, NO.3

main88688-76090iKMA10202111

88699AVALVE, AIR

main88699-60010iKMA10202111

88703HOSE SUB-ASSY, DISCHARGE

main88703-76070iKMA10202111

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120×2iKMA10202111

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-76040iKMA10202111

88704BRING, O(FOR SUCTION HOSE)

main90099-14121×2iKMA10202111

ID=13.4,OD=18.2

88707BTUBE SUB-ASSY, SUCTION, B

main88707-76090iKMA10202111

88707DRING, O(FOR SUCTION TUBE)

main90099-14120iKMA10202111

ID=10.8,OD=15.6

88707ERING, O, NO.2(FOR SUCTION TUBE)

main90099-14121×2iKMA10202111

ID=13.4,OD=18.2

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-47110iKMA10202111

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-76030×2iKMA10202111

88718NCLAMP, PIPING

main88718-1E150iKMA10202111

9010506347

main90105-06347

9010506348

main90105-06348

9017806026

main90178-06026

9017906274

main90179-06274

9167380616

main91673-80616

24 parts on this diagram · 3 diagrams in section
