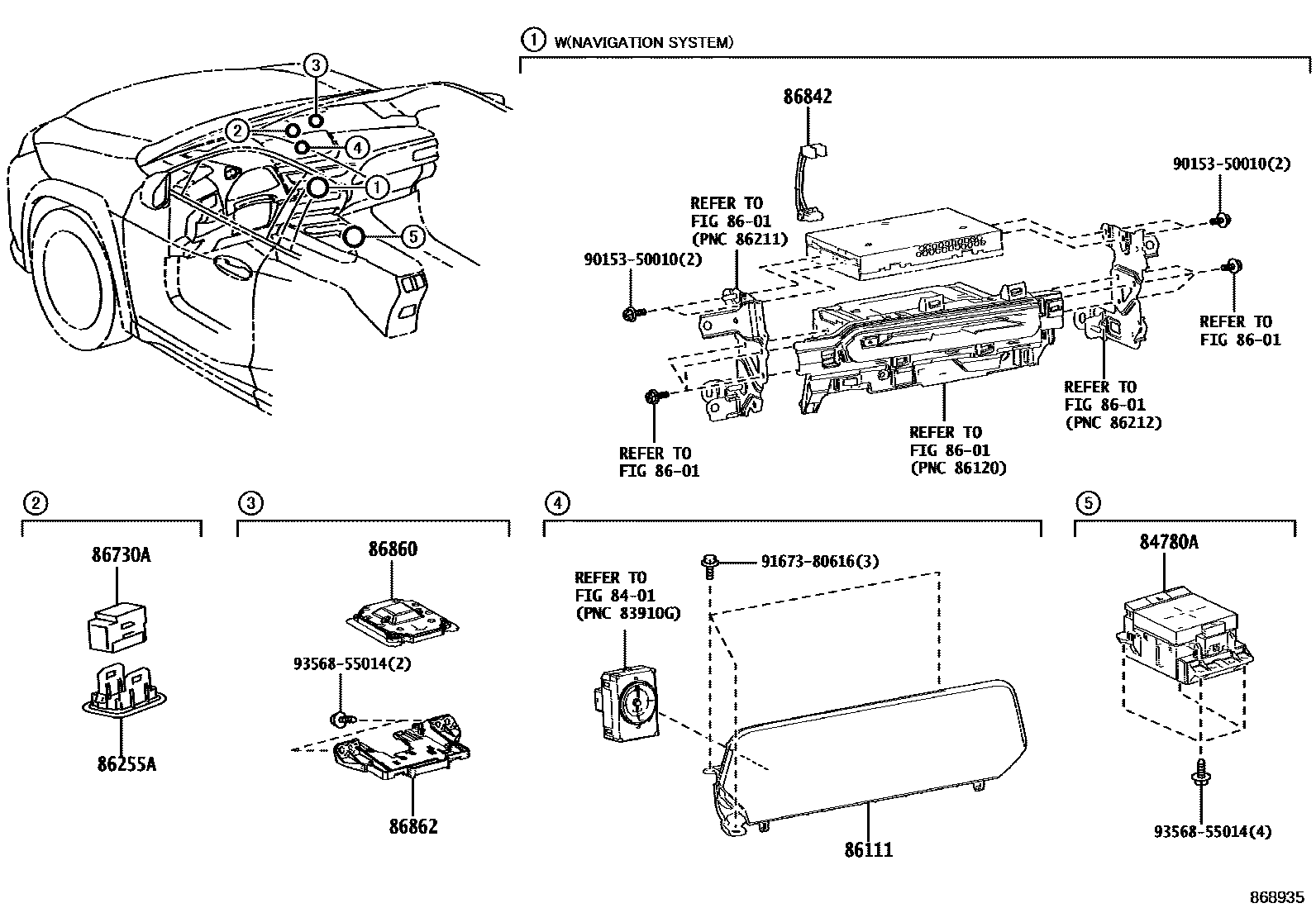

NAVIGATION & FRONT MONITOR DISPLAY

8401

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-76171supersedes 84780-76181iKMA10202111

LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER

8601

86111MULTI-DISPLAY

main86111-76171supersedes 86111-76120iKMA10202111

DENSO,LUXURY PACKAGE

86255ACASE, MICROPHONE, NO.1

main86255-78010-A1iKMA10202111

WHITE,TRIM11,4#,8#

main86255-78010-C1iKMA10202111

BLACK,TRIM10,2#

86730AMICROPHONE ASSY, TELEPHONE

main86730-48110iKMA10202111

86842WIRE, NAVIGATION, NO.1

main86842-76320iKMA10202111

LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER

86860ANTENNA ASSY, NAVIGATION

main86860-78010iKMA10202111

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iKMA10202111

9015350010

main90153-50010

9167380616

main91673-80616

9356855014

main93568-55014

12 parts on this diagram · 1 diagram in section
