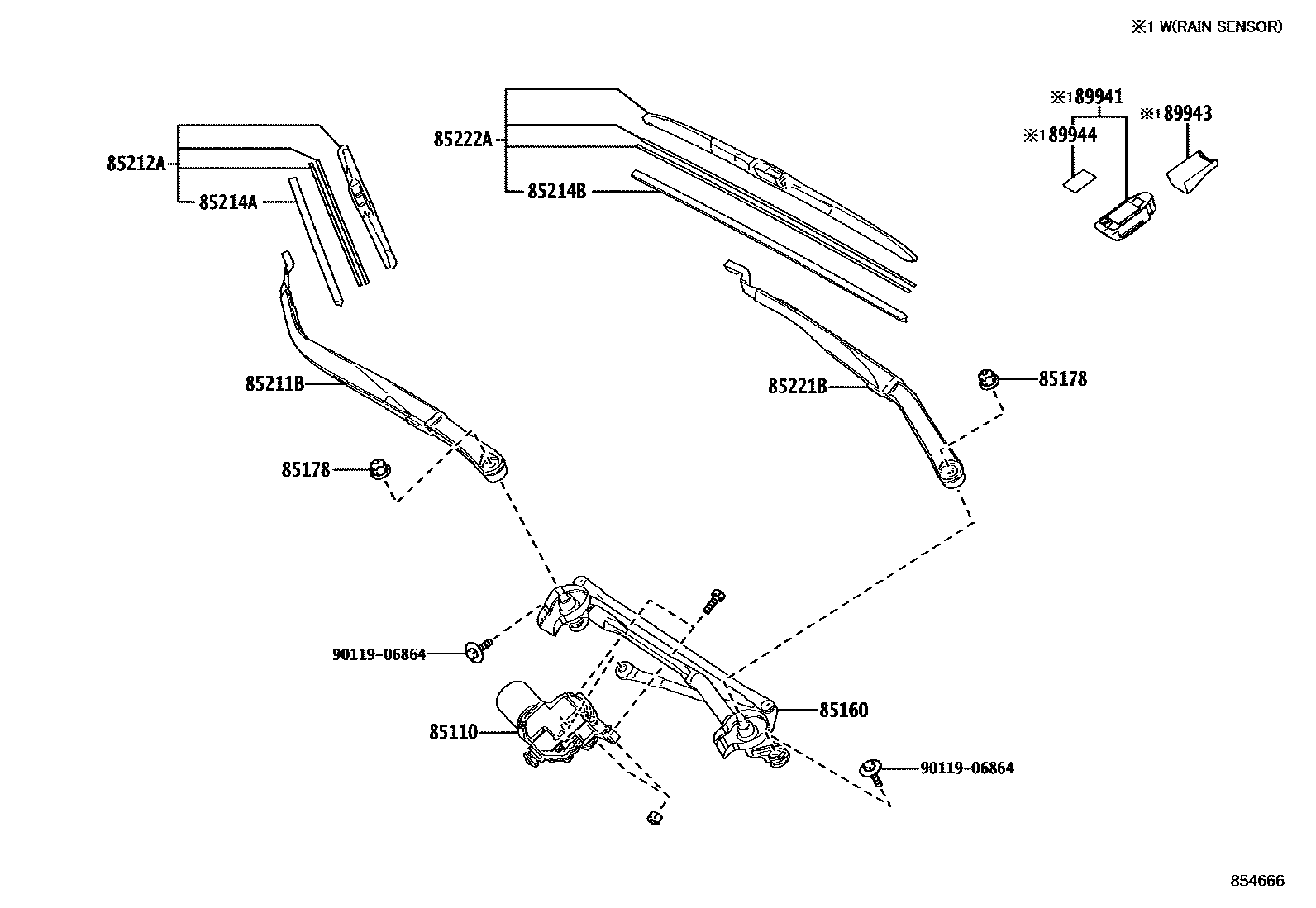

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-76072iKMA10202111

85160LINK ASSY, WINDSHIELD WIPER

main85150-76051iKMA10202111

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iKMA10202111

85211BARM, FRONT WIPER, RH

main85211-76040iKMA10202111

85212ABLADE, FR WIPER, RH

main85212-76020iKMA10202111

85214ARUBBER, WIPER, RH

main85214-28090iKMA10202111

85214BRUBBER, WIPER, LH

main85214-52110iKMA10202111

85221BARM, FRONT WIPER, LH

main85221-76070iKMA10202111

85222ABLADE, FR WIPER, LH

main85222-0E050iKMA10202111

89941SENSOR, RAIN

main89941-42020iKMA10202111

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-76020iKMA10202111

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-42020iKMA10202111

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

9011906864

main90119-06864

13 parts on this diagram · 1 diagram in section
