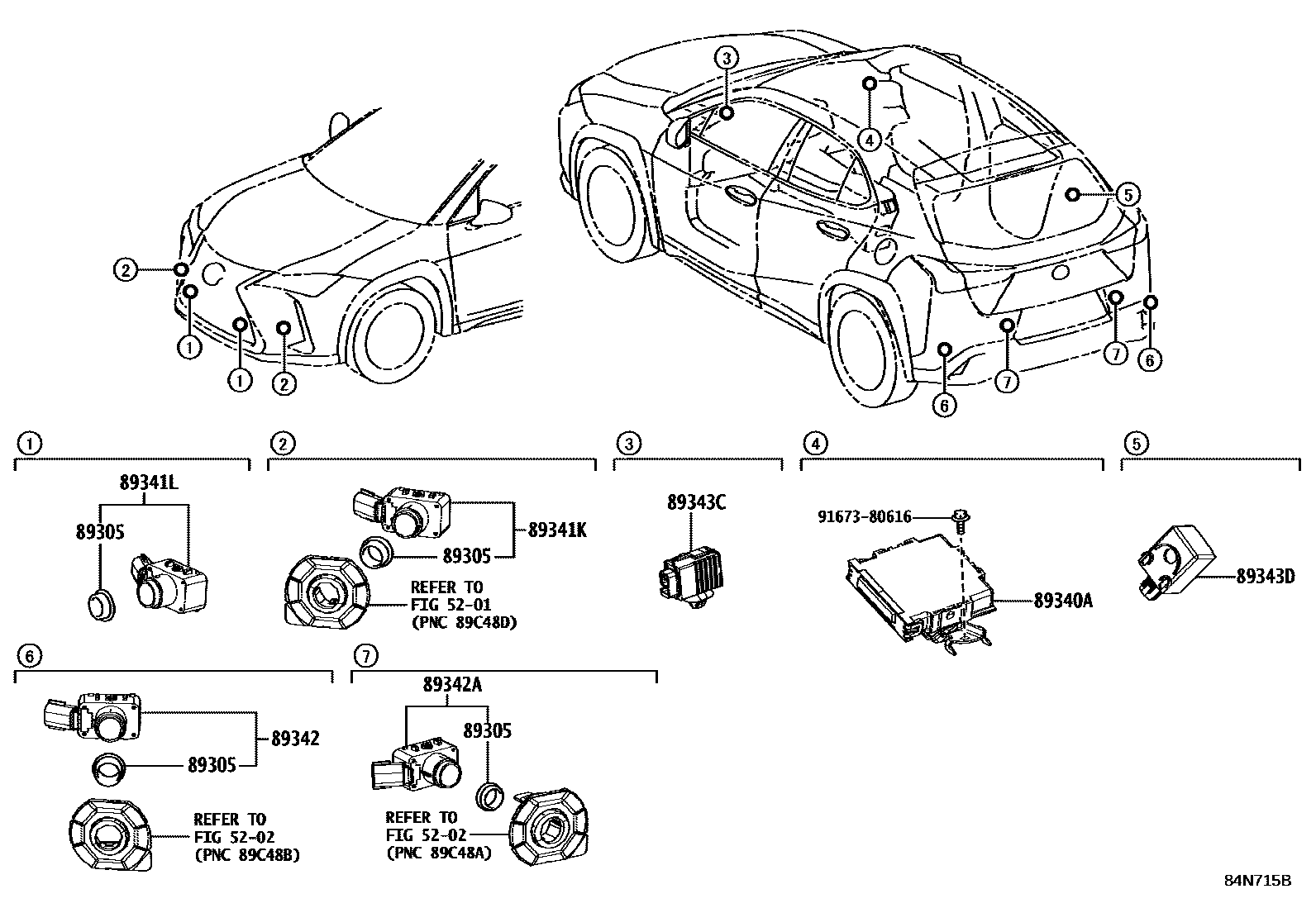

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-47010

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341KSENSOR, ULTRASONIC, FRONT CORNER

89341LSENSOR, ULTRASONIC, FRONT CENTER

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-33220

89342ASENSOR, ULTRASONIC, REAR CENTER

89343CBUZZER, CLEARANCE WARNING, NO.1

89343DBUZZER, CLEARANCE WARNING, NO.2

9167380616

main91673-80616

11 parts on this diagram · 1 diagram in section
