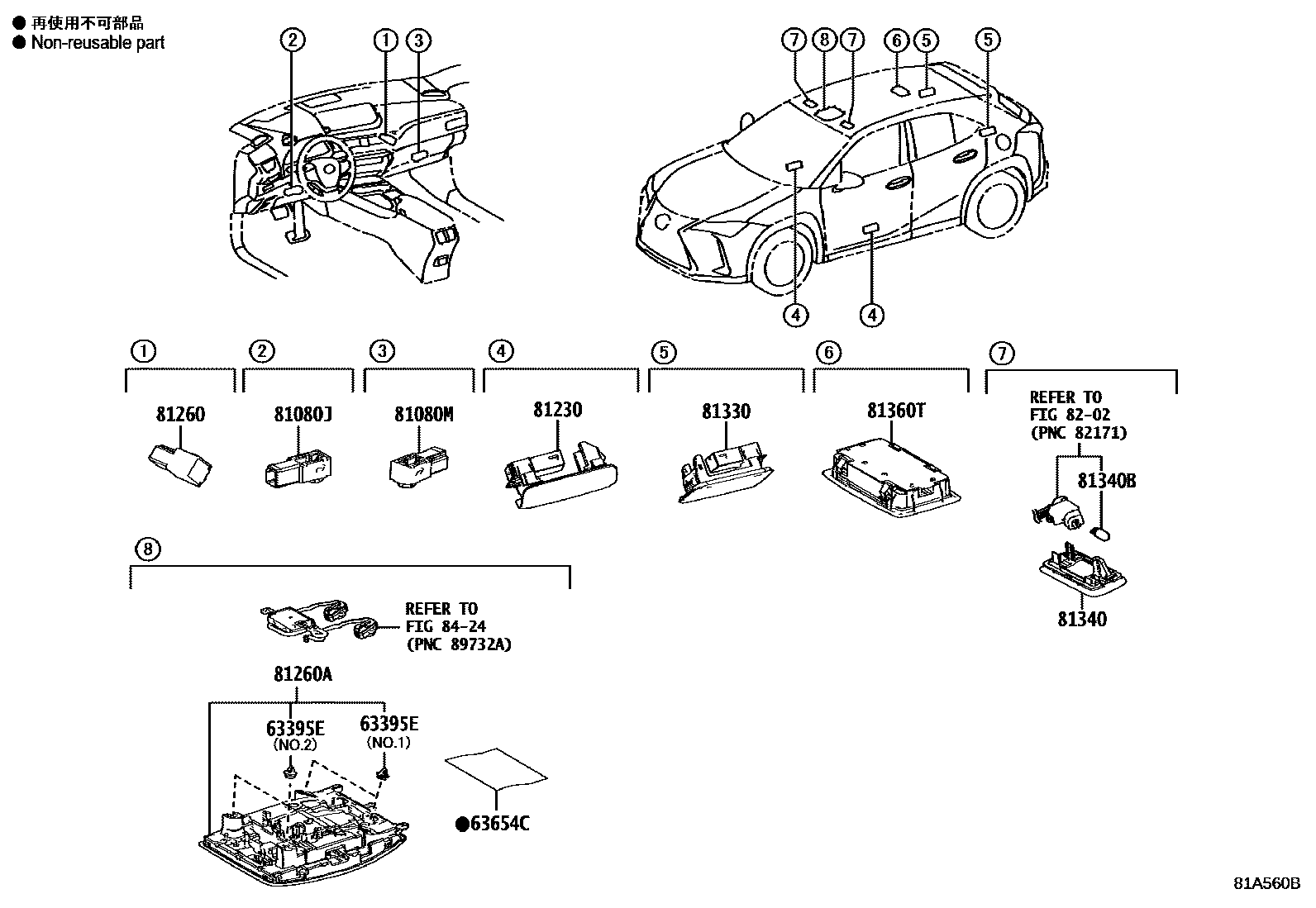

INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main90467-09245×2iKMA10202111

NO.1

main90467-10167×2iKMA10202111

NO.2

63654CCOVER, ROOF CONSOLE BOX, INNER

main63654-33030iKMA10202111

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-50110iKMA10202111

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-50110iKMA10202111

81230LAMP ASSY, COURTESY

main81230-11030×2iKMA10202111

81260LAMP ASSY, GLOVE BOX

main81080-50110iKMA10202111

81260ALAMP ASSY, MAP

main81208-33030-A0supersedes 81208-76020-A0iKMA10202111-202204

MOON ROOF-WITH,WHITE,TRIM11,4#,8#

main81208-33030-C0supersedes 81208-76020-C0iKMA10202111-202204

MOON ROOF-WITH,BLACK,TRIM10,2#

main81208-33031-A0supersedes 81208-76021-A0iKMA10202204

MOON ROOF-WITH,WHITE,TRIM4#,8#

main81208-33031-C0supersedes 81208-76021-C0iKMA10202204

MOON ROOF-WITH,BLACK,TRIM1#,2#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010×2iKMA10202111

81340LAMP ASSY, VANITY

main81340-30110×2iKMA10202111

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iKMA10202111

12V 8W

81360TLAMP ASSY, SPOT

main81360-76010-A0iKMA10202111

WHITE,TRIM11,4#,8#

main81360-76010-C0iKMA10202111

BLACK,TRIM10,2#

8202WIRING & CLAMP

→ Go to FIG 82-02

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

13 parts on this diagram · 1 diagram in section
