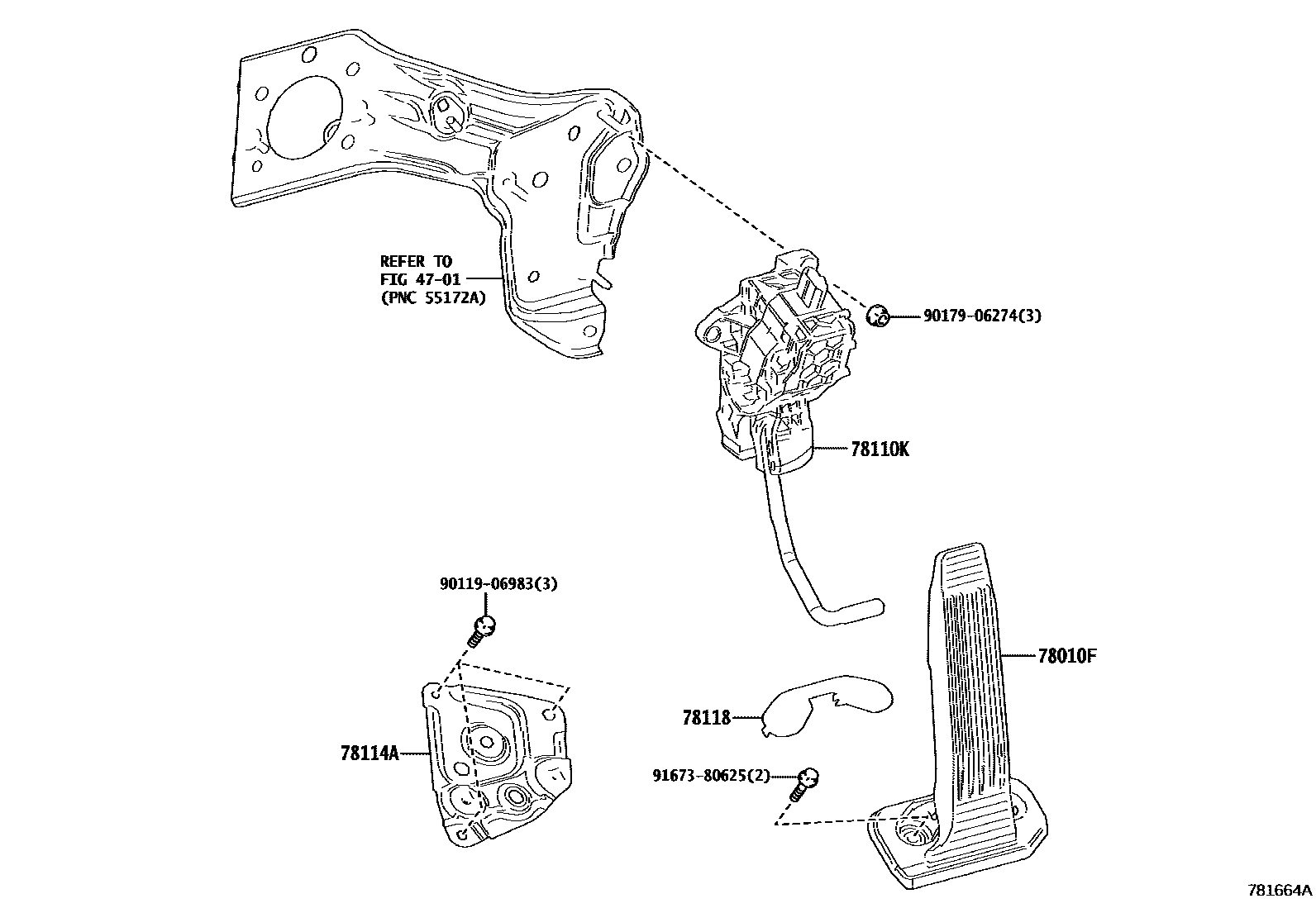

ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78010FPEDAL ASSY, ACCELERATOR

main78101-50050iKMA10202111

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-76051iKMA10202111

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-76010iKMA10202111

78118PAD, ACCELERATOR PEDAL

main78117-11010iKMA10202111

9011906983

main90119-06983

9017906274

main90179-06274

9167380625

main91673-80625

8 parts on this diagram · 1 diagram in section
