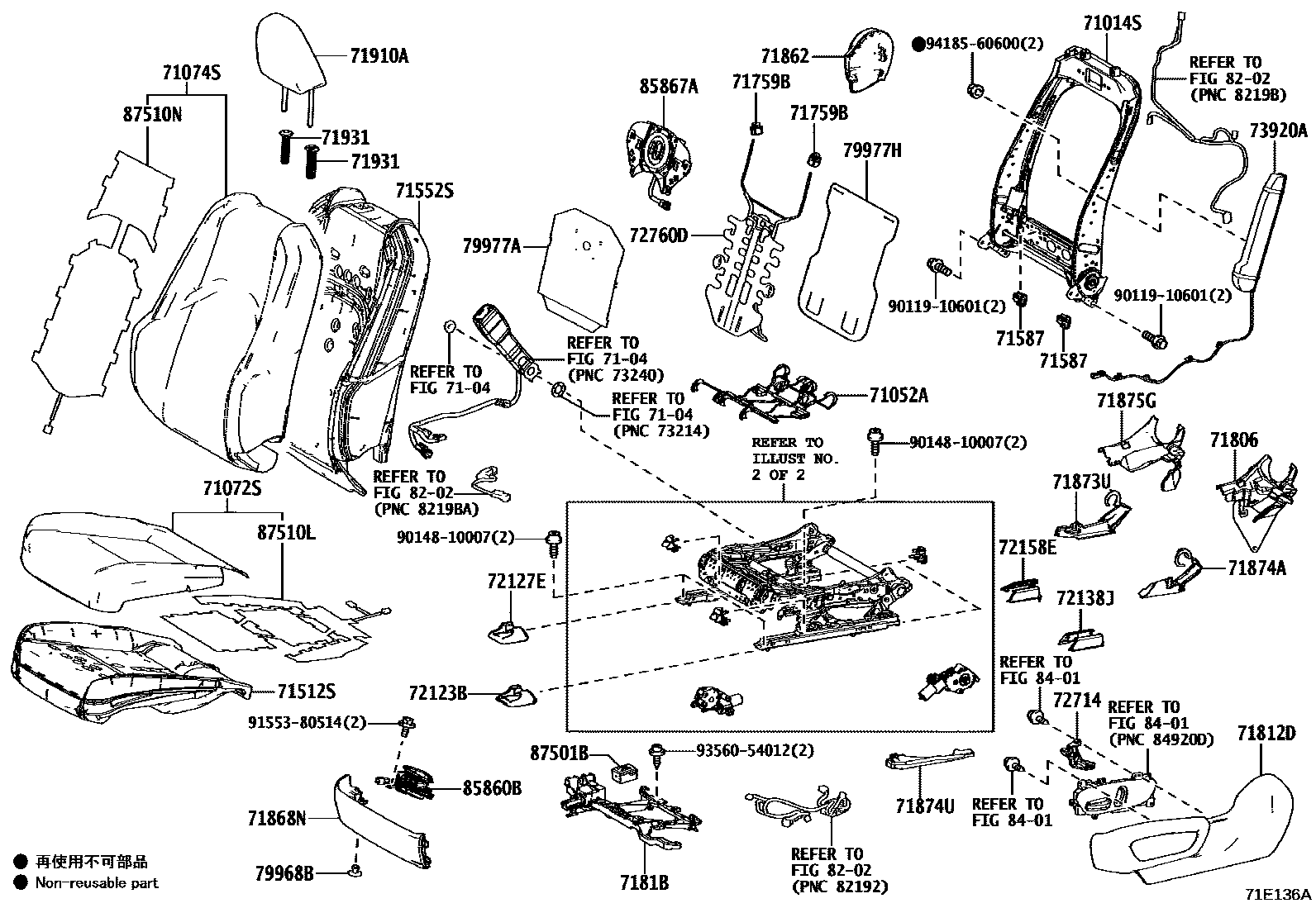

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE 0002 1PASSENGER SIDE 0003 1LH SIDE,SEAT ADJUSTER 0004 1RH SIDE,SEAT ADJUSTER

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-76170iKMA10202111

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-47090iKMA10202111

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-76C50-B1iKMA10202111-202112

WHITE ASH,TRIM1#,8#

main71072-76C50-C1iKMA10202111-202112

BLACK,TRIM2#

main71072-76C50-E1iKMA10202111-202112

OCHER,TRIM4#

main71072-76C51-B1iKMA10202201

WHITE ASH,TRIM1#,8#

main71072-76C51-C1iKMA10202201

BLACK,TRIM2#

main71072-76C51-E1iKMA10202201

OCHER,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-76840-B4iKMA10202111

WHITE ASH/BLUE,TRIM8#

main71074-76840-B5iKMA10202111

WHITE ASH,TRIM1#

main71074-76840-C2iKMA10202111

BLACK,TRIM2#

main71074-76840-E2iKMA10202111

OCHER,TRIM4#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-76070iKMA10202111

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-76070iKMA10202111

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010×4iKMA10202111

71759BHOOK, FRONT SEATBACK

main71759-50040×4iKMA10202111

71806SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH

main71806-76010-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-76100-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-33010iKMA10202111

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-47090-C1iKMA10202111

BLACK,TRIM1#,2#,4#,8#

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-33100-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-76010iKMA10202111

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-47080iKMA10202111

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-47080iKMA10202111

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-76010iKMA10202111

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47090iKMA10202111

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-76020-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

71910AHEADREST ASSY, FRONT SEAT

main71910-76481-B0×2iKMA10202111

WHITE ASH,TRIM1#

main71910-76481-C3×2iKMA10202111

BLACK,TRIM2#

main71910-76481-E0×2iKMA10202111

OCHER,TRIM4#

main71910-76481-J0×2iKMA10202111

BLUE,TRIM8#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5×2iKMA10202111

W(LOCK),BLACK,TRIM1#,2#,4#,8#

main71931-47030-C4×2iKMA10202111

W/O(LOCK),BLACK,TRIM1#,2#,4#,8#

72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT

main72123-10100×2iKMA10202111

72127ECOVER, SEAT TRACK BRACKET, INNER FRONT

main72123-10100×2iKMA10202111

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72137-47060iKMA10202111

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-47080iKMA10202111

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-33010iKMA10202111

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-33150iKMA10202111

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-42090iKMA10202111

79968BCLIP

main90467-07215×2iKMA10202111

79977AFELT, SEATBACK

main79977-33040×2iKMA10202111

79977HFELT, FRONT SEATBACK, LH

main79977-76010iKMA10202111

8202

8401

85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

main85802-33030iKMA10202111

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-33030iKMA10202111

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-33010iKMA10202111

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-76030iKMA10202111-202112

main87510-76031iKMA10202201

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-76020iKMA10202111

9011910601

main90119-10601

9014810007

main90148-10007

9155380514

main91553-80514

9356054012

main93560-54012

9418560600

main94185-60600

44 parts on this diagram · 4 diagrams in section
