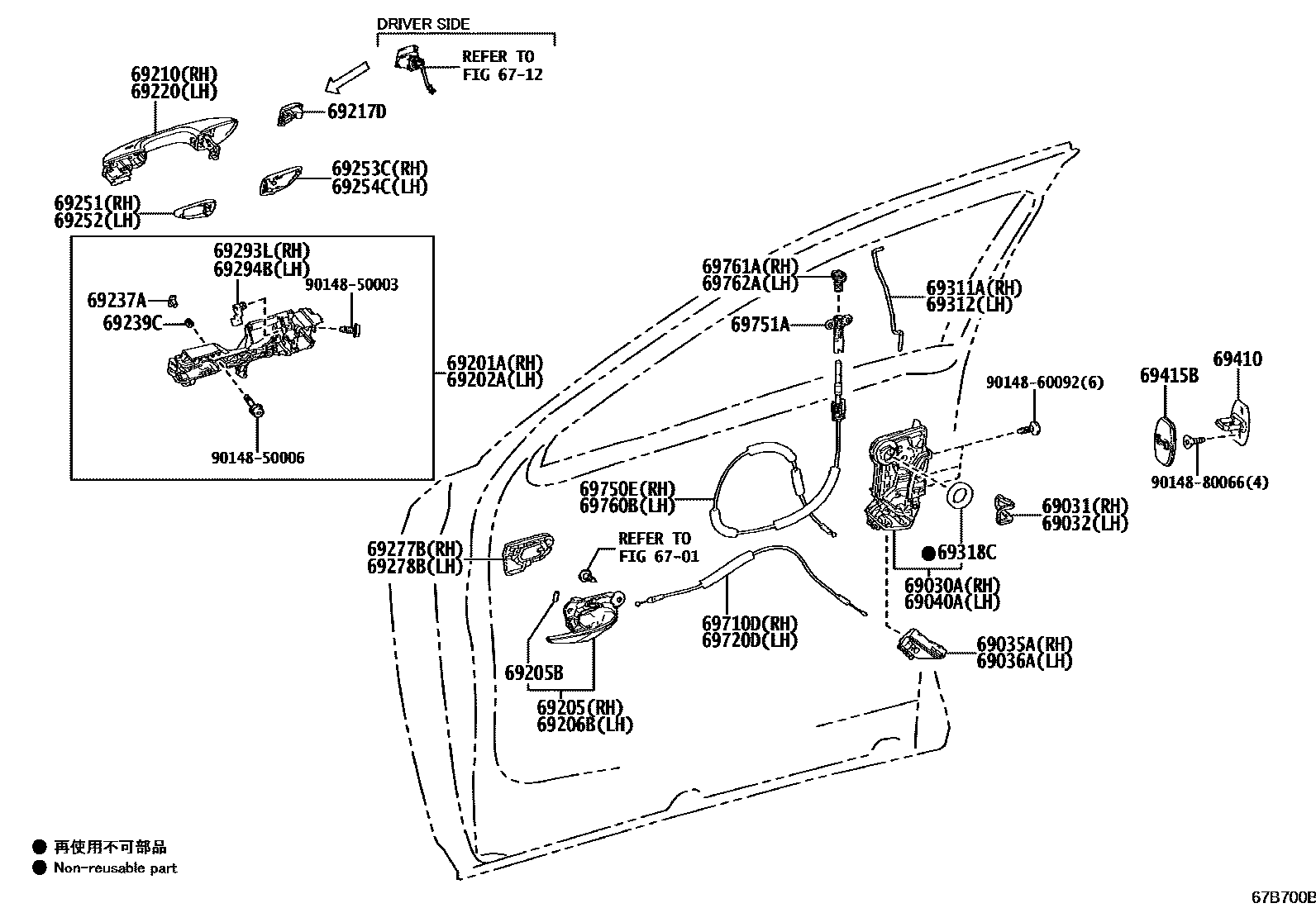

FRONT DOOR LOCK & HANDLE
6701FRONT DOOR PANEL & GLASS
6712LOCK CYLINDER SET
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69031COVER SET, DOOR LOCK, RH
69032COVER SET, DOOR LOCK, LH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),SONIC QUARTZ,085; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,SONIC QUARTZ,085; PREMIUM PACKAGE,SONIC QUARTZ,085
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),MERCURY GRAY MC.,1H9; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,MERCURY GRAY MC.,1H9; PREMIUM PACKAGE,MERCURY GRAY MC.,1H9
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),SONIC TITANIUM,1J7; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,SONIC TITANIUM,1J7; PREMIUM PACKAGE,SONIC TITANIUM,1J7
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),SONIC CHROME,1L1; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,SONIC CHROME,1L1; PREMIUM PACKAGE,SONIC CHROME,1L1
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),BLACK,212; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,BLACK,212; PREMIUM PACKAGE,BLACK,212
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),GRAPHITE BLACK GF.,223; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,GRAPHITE BLACK GF.,223; PREMIUM PACKAGE,GRAPHITE BLACK GF.,223
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),MADDER RED,3T2; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,MADDER RED,3T2; PREMIUM PACKAGE,MADDER RED,3T2
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),BLAZING CARNELIAN CONTRAS,4Y1; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,BLAZING CARNELIAN CONTRAS,4Y1; PREMIUM PACKAGE,BLAZING CARNELIAN CONTRAS,4Y1
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),TERRANE KHAKI M.M.,6X4; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,TERRANE KHAKI M.M.,6X4; PREMIUM PACKAGE,TERRANE KHAKI M.M.,6X4
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),CELESTIAL BLUE GF.,8Y6; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,CELESTIAL BLUE GF.,8Y6; PREMIUM PACKAGE,CELESTIAL BLUE GF.,8Y6
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
BLACK
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),SONIC QUARTZ,085; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,SONIC QUARTZ,085; PREMIUM PACKAGE,SONIC QUARTZ,085
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),MERCURY GRAY MC.,1H9; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,MERCURY GRAY MC.,1H9; PREMIUM PACKAGE,MERCURY GRAY MC.,1H9
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),SONIC TITANIUM,1J7; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,SONIC TITANIUM,1J7; PREMIUM PACKAGE,SONIC TITANIUM,1J7
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),SONIC CHROME,1L1; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,SONIC CHROME,1L1; PREMIUM PACKAGE,SONIC CHROME,1L1
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),BLACK,212; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,BLACK,212; PREMIUM PACKAGE,BLACK,212
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),GRAPHITE BLACK GF.,223; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,GRAPHITE BLACK GF.,223; PREMIUM PACKAGE,GRAPHITE BLACK GF.,223
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),MADDER RED,3T2; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,MADDER RED,3T2; PREMIUM PACKAGE,MADDER RED,3T2
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),BLAZING CARNELIAN CONTRAS,4Y1; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,BLAZING CARNELIAN CONTRAS,4Y1; PREMIUM PACKAGE,BLAZING CARNELIAN CONTRAS,4Y1
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),TERRANE KHAKI M.M.,6X4; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,TERRANE KHAKI M.M.,6X4; PREMIUM PACKAGE,TERRANE KHAKI M.M.,6X4
LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR)),CELESTIAL BLUE GF.,8Y6; LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH,CELESTIAL BLUE GF.,8Y6; PREMIUM PACKAGE,CELESTIAL BLUE GF.,8Y6
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
BLACK,TRIM1#,2#,4#,8#
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
BLACK,TRIM1#,2#,4#,8#
9014850003
main90148-50003
9014850006
main90148-50006
9014860092
main90148-60092
9014880066
main90148-80066
42 parts on this diagram · 1 diagram in section
