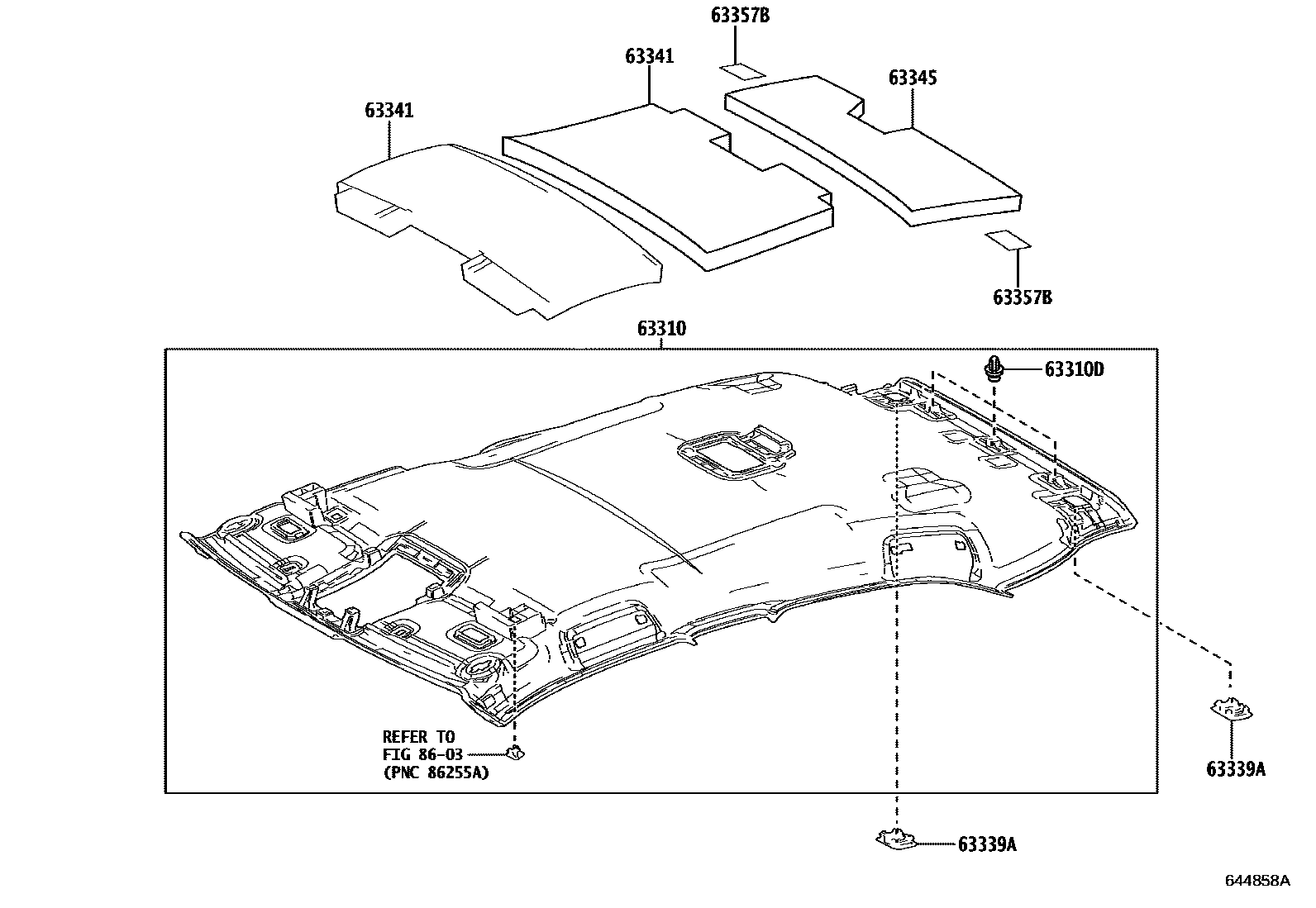

ROOF HEADLINING & SILENCER PAD

0001 1NORMAL ROOF 0002 1MOON ROOF

63310HEADLINING ASSY, ROOF

main63310-76090-A2supersedes 63310-76070-A2iKMA10202111

MOON ROOF-WITH,LWHITE,TRIM11,4#,8#

main63310-76090-C2supersedes 63310-76070-C2iKMA10202111

MOON ROOF-WITH,BLACK,TRIM10,2#

63310DCLIP, ROOF HEADLINING

main90467-09240×3iKMA10202111

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-76010-A0×2iKMA10202111

WHITE,TRIM11,4#,8#

main63339-76010-C0×2iKMA10202111

BLACK,TRIM10,2#

63341PAD, ROOF SILENCER, NO.1

main63341-76030×2iKMA10202111

63345PAD, ROOF SILENCER, NO.5

main63345-76030iKMA10202111

63357BSILENCER, ROOF

main63357-78020×2iKMA10202111-202212

MOON ROOF-WITH

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

7 parts on this diagram · 2 diagrams in section
