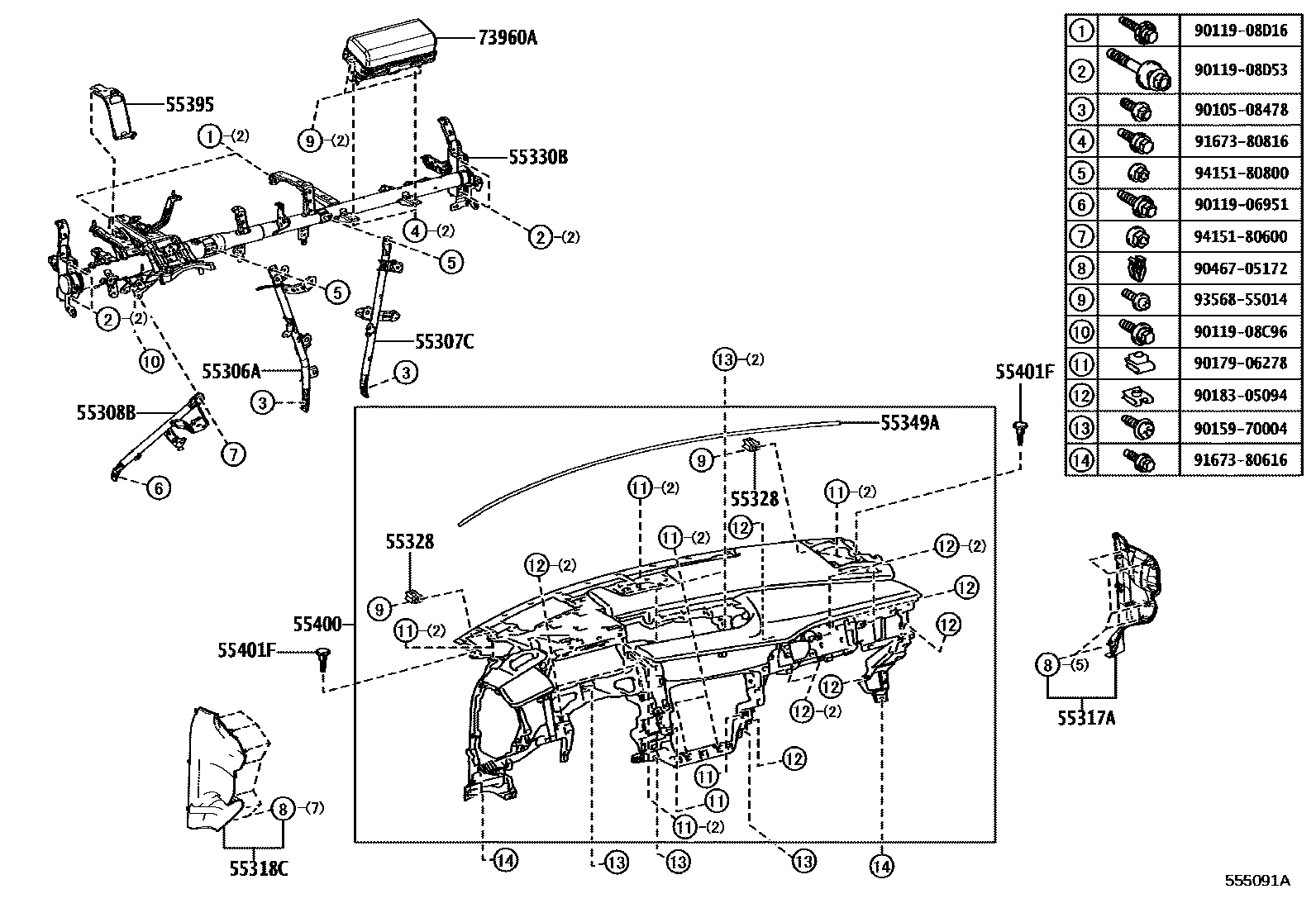

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-76040iKMA10202111

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-76030iKMA10202111

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-76010iKMA10202111

55317APANEL, INSTRUMENT SIDE, RH

main55318-76070-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-76070-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-76090iKMA10202111

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-76040iKMA10202111

55349ACUSHION, INSTRUMENT PANEL

main55349-76030iKMA10202111

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12020iKMA10202111

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-76030-40iKMA10202111

BLACK/BLACK/LT.GRAY,TRIM10,2#

main55400-76030-41iKMA10202111

BLACK/BLACK/ROYAL BROWN,TRIM4#

main55400-76030-E0iKMA10202111

NOBLEBROWN/BLACK/ME.WHITE,TRIM11

main55400-76030-J1iKMA10202111

BLUE/BLACK/LT.GRAY,TRIM8#

55401FCLIP(FOR SAFETY PAD)

main52161-16010iKMA10202111

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-76030iKMA10202111

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9011908D53

main90119-08D53

9015970004

main90159-70004

9017906278

main90179-06278

9018305094

main90183-05094

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

26 parts on this diagram · 4 diagrams in section
