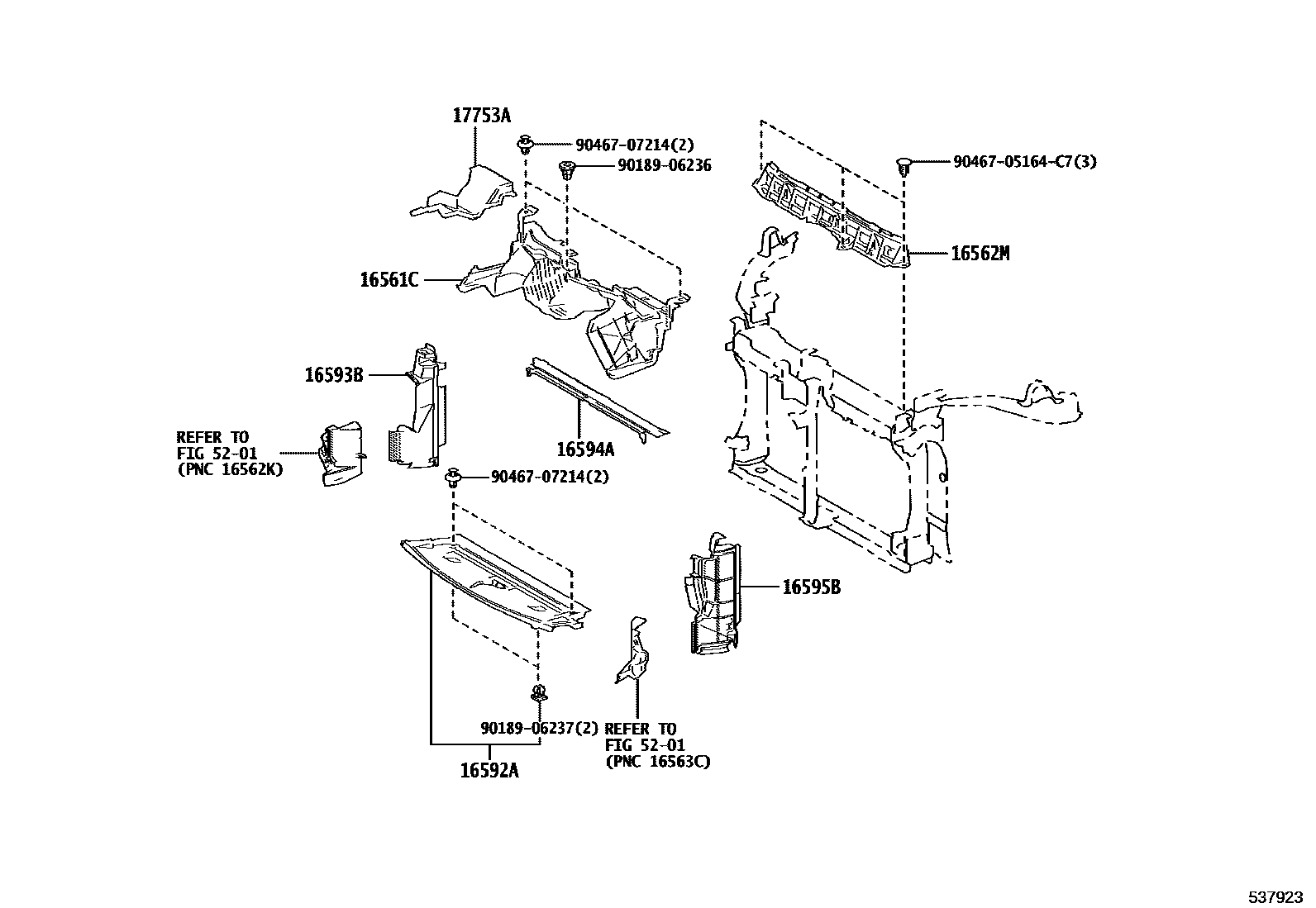

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-24020i4KM..KMA10202111

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16561-10010i4KM..KMA10202111

16592AGUIDE, RADIATOR AIR, NO.3

main16592-10010i4KM..KMA10202111

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-10040i4KM..KMA10202111

16594AGUIDE, RADIATOR AIR, NO.2

main16594-10010i4KM..KMA10202111

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-10020i4KM..KMA10202111

17753AGUIDE, AIR

main17753-24010i4KM..KMA10202111

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

9018906236

main90189-06236

9018906237

main90189-06237

9046705164C7

main90467-05164C7

9046707214

main90467-07214

12 parts on this diagram · 3 diagrams in section
