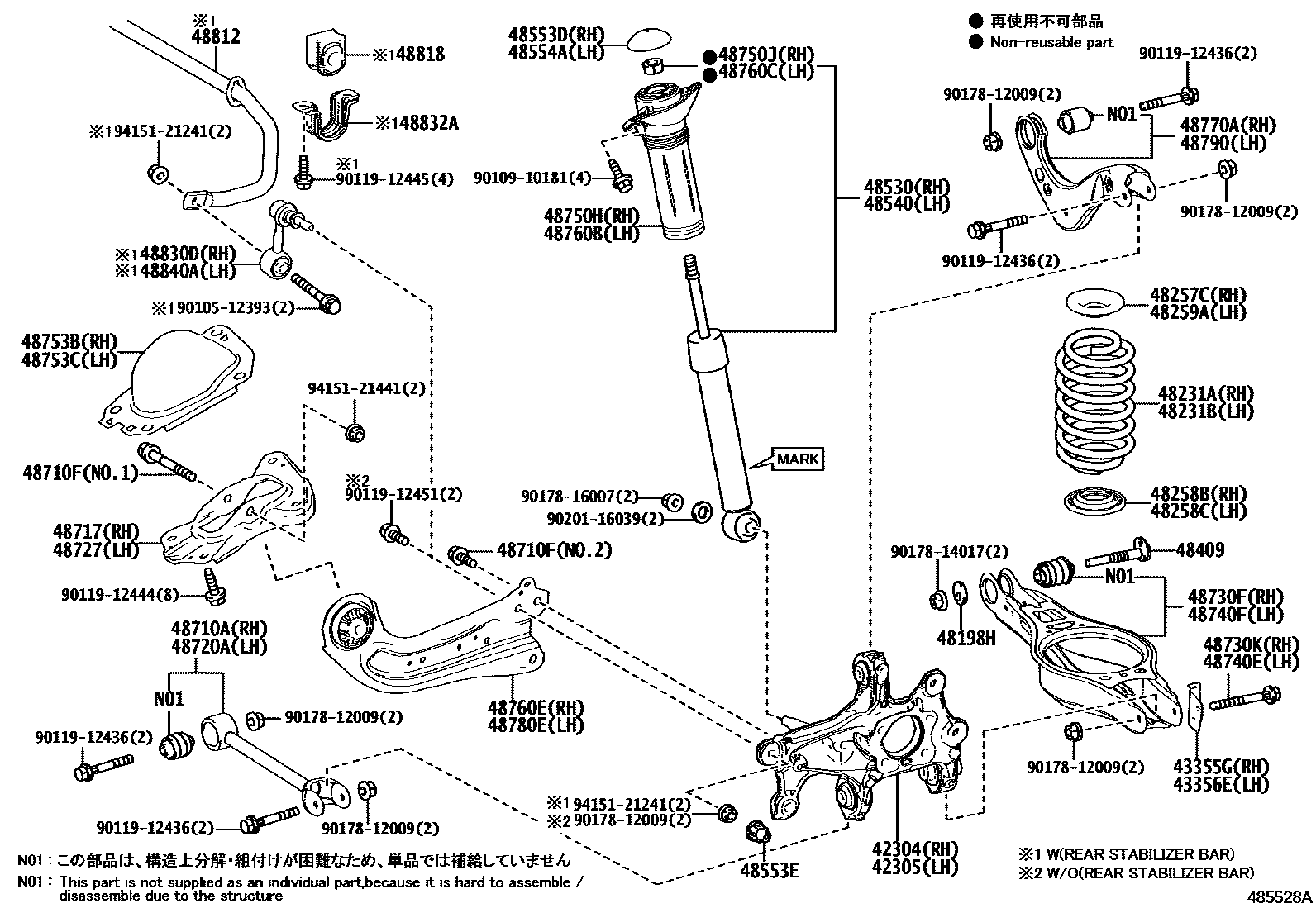

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-42090iKMA10202111

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-42090iKMA10202111

43355GDEFLECTOR, LOWER ARM ICE, RH

main43355-76010iKMA10202111

43356EDEFLECTOR, LOWER ARM ICE, LH

main43356-76010iKMA10202111

48198HCAM, CAMBER ADJUST, NO.2

main48198-47010×2iKMA10202111

48231ASPRING, COIL, REAR RH

main48231-76130iKMA10202111

48231BSPRING, COIL, REAR LH

main48231-76130iKMA10202111

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-47020iKMA10202111

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-47010iKMA10202111

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-47010iKMA10202111

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-47020iKMA10202111

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011×2iKMA10202111

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-79335supersedes 48530-79345iKMA10202111-202207

MARK 48530-76210,TIRE & DISC WHEEL-225/50R18, SUMMER TIRE

main48530-79525supersedes 48530-79345iKMA10202207

MARK 48530-76340,TIRE & DISC WHEEL-225/50R18, SUMMER TIRE

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-79335supersedes 48530-79345iKMA10202111-202207

MARK 48530-76210,TIRE & DISC WHEEL-225/50R18, SUMMER TIRE

main48530-79525supersedes 48530-79345iKMA10202207

MARK 48530-76340,TIRE & DISC WHEEL-225/50R18, SUMMER TIRE

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-47010iKMA10202111

48553ECAP

main48553-52030×2iKMA10202111

TIRE & DISC WHEEL-225/50R18, SUMMER TIRE

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-47010iKMA10202111

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-76030iKMA10202111

48710FBOLT(FOR REAR TRAILING ARM)

main90105-14195×2iKMA10202111

NO.1:REFER ILLUST.

main90105-14197×4iKMA10202111

NO.2:REFER ILLUST.

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-10010iKMA10202111

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-76030iKMA10202111

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-10010iKMA10202111

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-47010iKMA10202111

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iKMA10202111

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iKMA10202111

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-47010iKMA10202111

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-76010iKMA10202111

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94130-61200iKMA10202111

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-10010iKMA10202111

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-10020iKMA10202111

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-76010iKMA10202111

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94130-61200iKMA10202111

48760EARM ASSY, TRAILING, REAR RH

main48760-33180iKMA10202111

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-76020iKMA10202111

48780EARM ASSY, TRAILING, REAR LH

main48780-33100iKMA10202111

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-76020iKMA10202111

48812BAR, STABILIZER, REAR

main48812-76070iKMA10202111

TIRE & DISC WHEEL-225/50R18, SUMMER TIRE

48818BUSH, STABILIZER, REAR

main48818-76061×2iKMA10202111

TIRE & DISC WHEEL-225/50R18, SUMMER TIRE

48830DLINK ASSY, REAR STABILIZER, RH

main48830-47010iKMA10202111

TIRE & DISC WHEEL-225/50R18, SUMMER TIRE

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-47010×2iKMA10202111

TIRE & DISC WHEEL-225/50R18, SUMMER TIRE

48840ALINK ASSY, REAR STABILIZER, LH

main48830-47010iKMA10202111

TIRE & DISC WHEEL-225/50R18, SUMMER TIRE

9010512393

main90105-12393

9010910181

main90109-10181

9011912436

main90119-12436

9011912444

main90119-12444

9011912445

main90119-12445

9011912451

main90119-12451

9017812009

main90178-12009

9017814017

main90178-14017

9017816007

main90178-16007

9020116039

main90201-16039

9415121241

main94151-21241

9415121441

main94151-21441

53 parts on this diagram · 1 diagram in section
