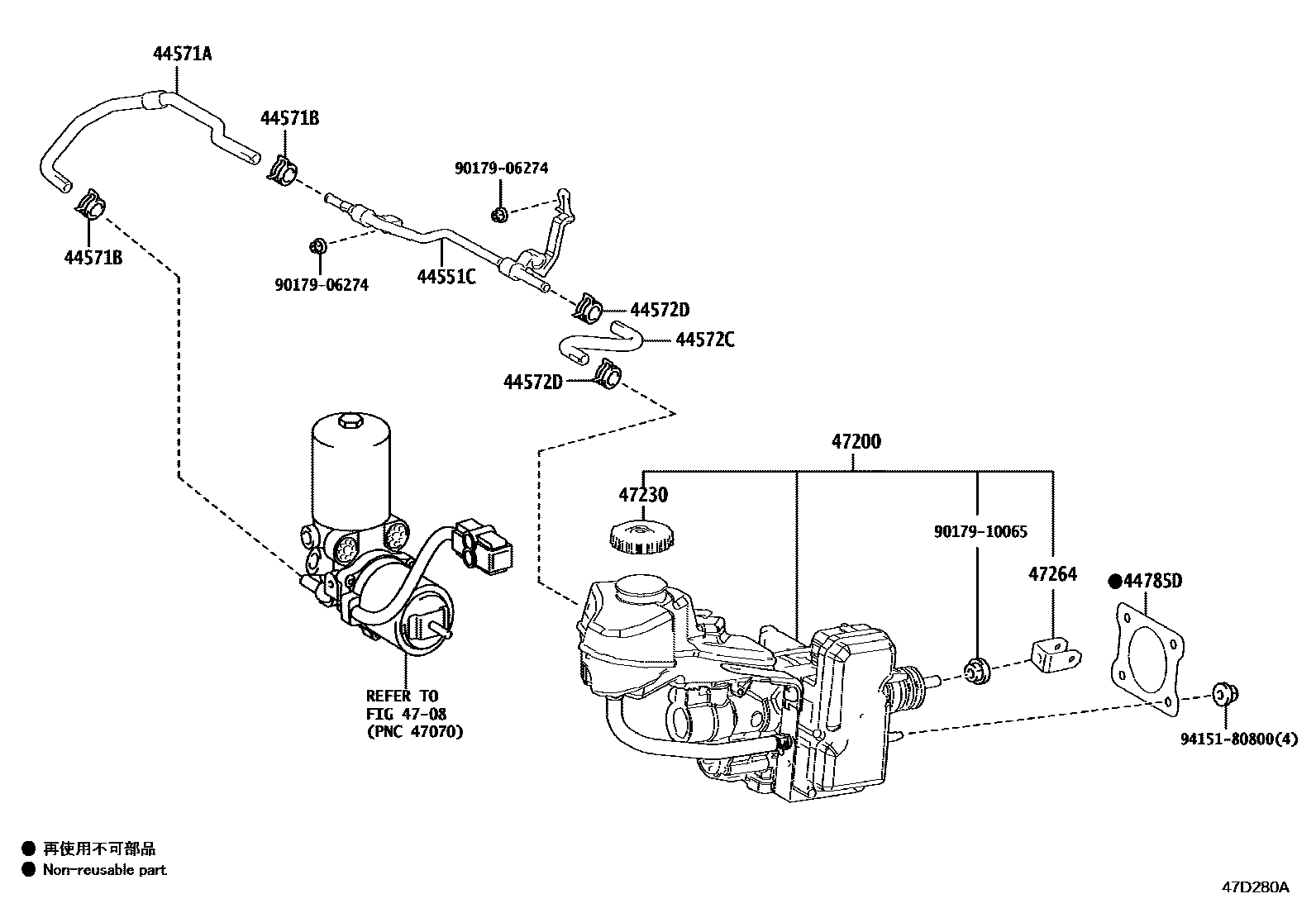

BRAKE MASTER CYLINDER

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-47050iKMA10202111

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-76020iKMA10202111

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501iKMA10202111

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-47050iKMA10202111

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501iKMA10202111

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iKMA10202111

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47200CYLINDER ASSY, BRAKE MASTER

main47050-76750iKMA10202111

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iKMA10202111

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-47010iKMA10202111

9017906274

main90179-06274

9017910065

main90179-10065

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
