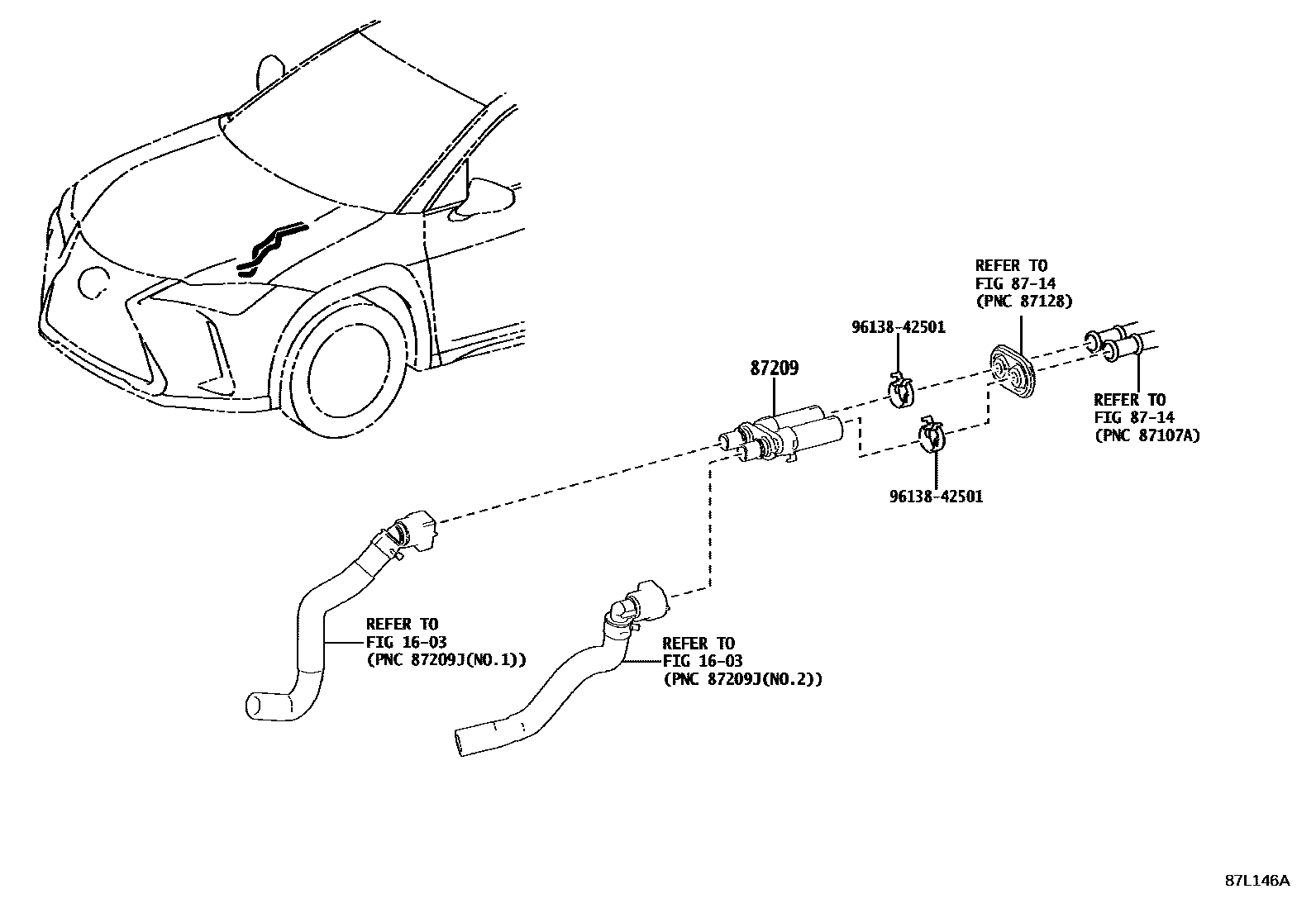

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87209HOSE SUB-ASSY, WATER

main87209-16040iMZAH11,16202401

main87209-76070iMZAH10,15202207

main87209-76080iKMA10202303-202305

9613842501

main96138-42501

4 parts on this diagram · 2 diagrams in section
