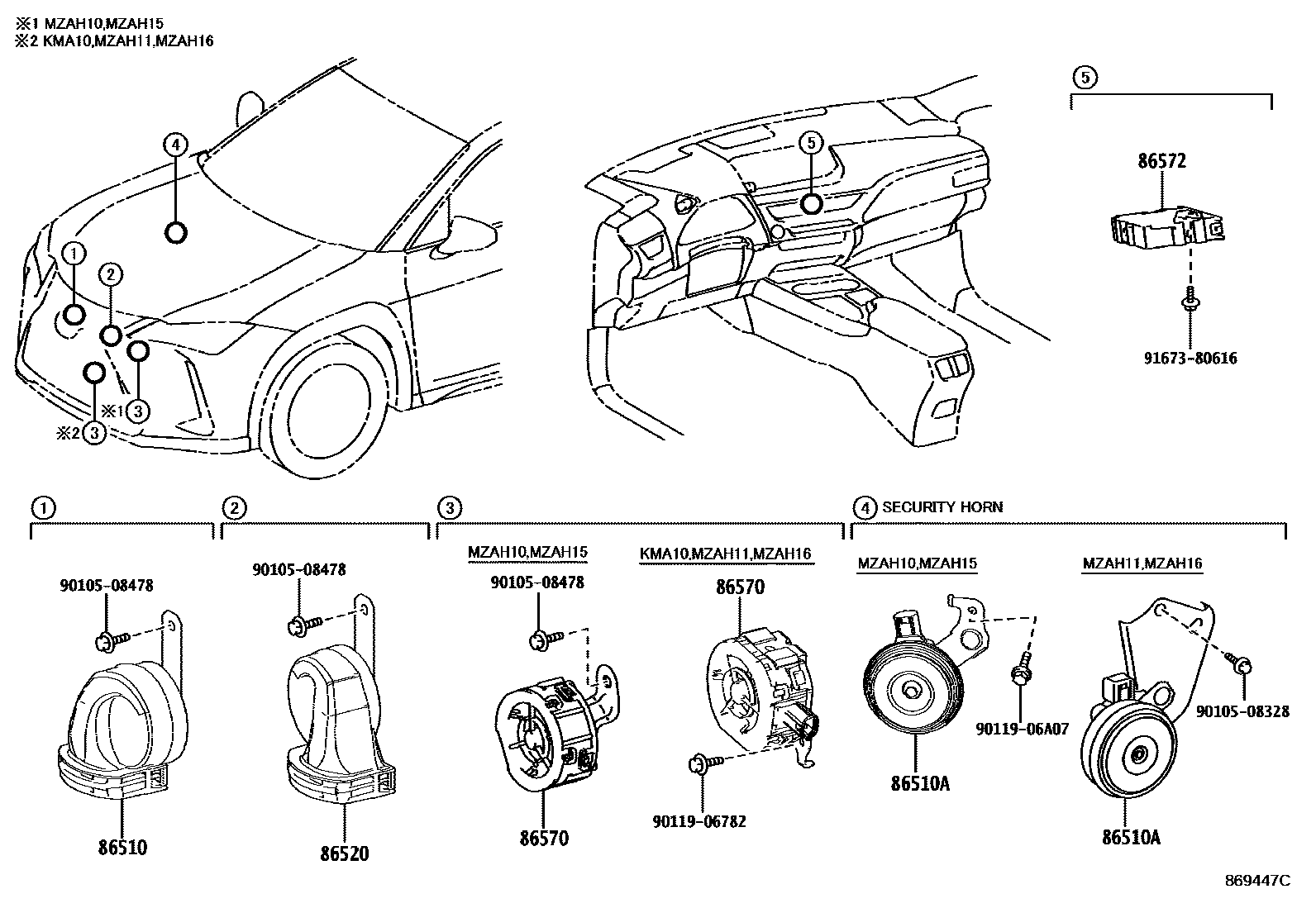

HORN

86510HORN ASSY, HIGH PITCHED

main86510-48190iMZAH11,16202401

main86510-50211supersedes 86510-48190iKMA10202303-202305

86510AHORN ASSY, SECURITY

main86560-10020iMZAH10,15202207

main86560-16020iMZAH11,16202401-202512

86520HORN ASSY, LOW PITCHED

main86520-30670iMZAH11,16202401

main86520-50181supersedes 86520-30670iKMA10202303-202305

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-76060iMZAH10,15202207

main86570-76070iMZAH11,16202401

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-76200iKMA10202303-202305

main865H2-76010iMZAH11,16202401

main86572-76170supersedes 86572-76190iMZAH10,15202207

KOREA SPEC

9010508328

main90105-08328

9010508478

main90105-08478

9011906782

main90119-06782

9011906A07

main90119-06A07

9167380616

main91673-80616

10 parts on this diagram · 1 diagram in section
