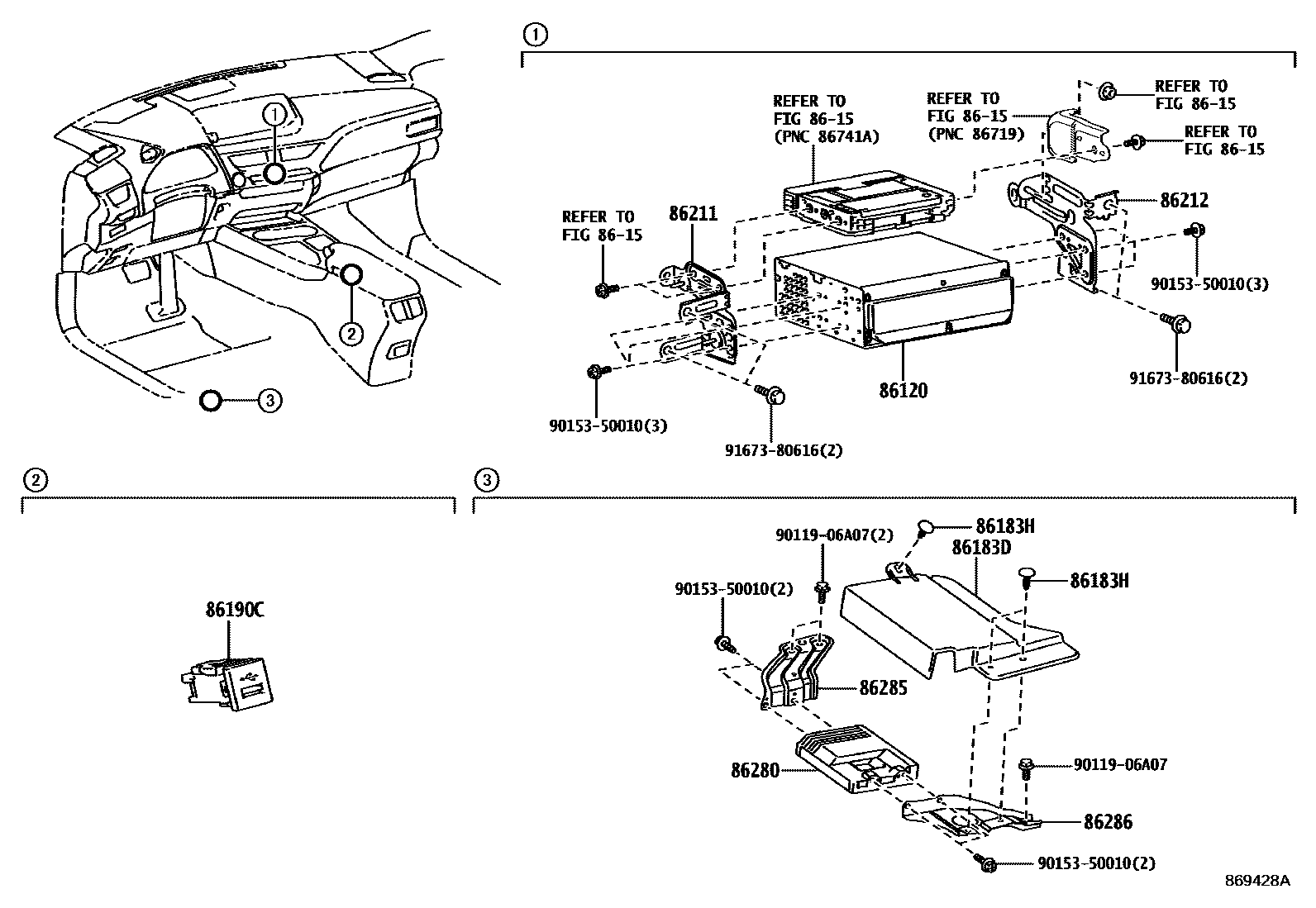

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & AMPLIFIER 0002 1RECEIVER & AMPLIFIER 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-76870iMZAH15202207

PANASONIC,CANADA SPEC

main86120-76C30supersedes 86120-76860iMZAH10,15202207

DENSO TEN,KOREA SPEC

main86120-76Q60iMZAH16202401

PANASONIC,CANADA SPEC

main86130-76F90supersedes 86120-76860iMZAH10,15202207

PANASONIC,AUDIO-EMV & 10SPEAKER

main86130-76G00iMZAH15202207

PANASONIC,CANADA SPEC&AUDIO-EMV & 10SPEAKER

main86130-76K10supersedes 86120-76860iMZAH10,15202207

DENSO TEN,KOREA SPEC&AUDIO-EMV & 10SPEAKER

main86130-76L30supersedes 86120-76N90iKMA10202303-202305

DENSO TEN, LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER

main86130-76M70supersedes 86120-76Q50iMZAH11,16202401

PANASONIC,AUDIO-EMV & 10SPEAKER

main86130-76M80iMZAH16202401

PANASONIC,CANADA SPEC&AUDIO-EMV & 10SPEAKER

main86130-76P30iMZAH16202401-202411

DENSO TEN,KOREA SPEC&AUDIO-EMV & 10SPEAKER

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

86183DCOVER, AUDIO AMPLIFIER

main86183-76020iMZAH10,15202207

AUDIO-EMV & 10SPEAKER

86183HCLIP, AUDIO AMPLIFIER COVER

main90467-05161-C0×3iMZAH10,15202207

AUDIO-EMV & 10SPEAKER,BLACK

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-34010iKMA10202207-202305

86211BRACKET, RADIO, NO.1

main86211-76190iKMA10202207-202305

86212BRACKET, RADIO, NO.2

main86212-76200iKMA10202207-202305

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-76160iMZAH10,15202207

AUDIO-EMV & 10SPEAKER

main86280-76190iKMA10202303-202305

LUXURY PACKAGE

86285BRACKET, AMPLIFIER, NO.1

main86285-76040iKMA10202303-202305

main86285-76030iMZAH10,15202207

AUDIO-EMV & 10SPEAKER

86286BRACKET, AMPLIFIER, NO.2

main86286-76030iKMA10202303-202305

LUXURY PACKAGE

main86286-76040iMZAH10,15202207

AUDIO-EMV & 10SPEAKER

9011906A07

main90119-06A07

9015350010

main90153-50010

9167380616

main91673-80616

13 parts on this diagram · 3 diagrams in section
