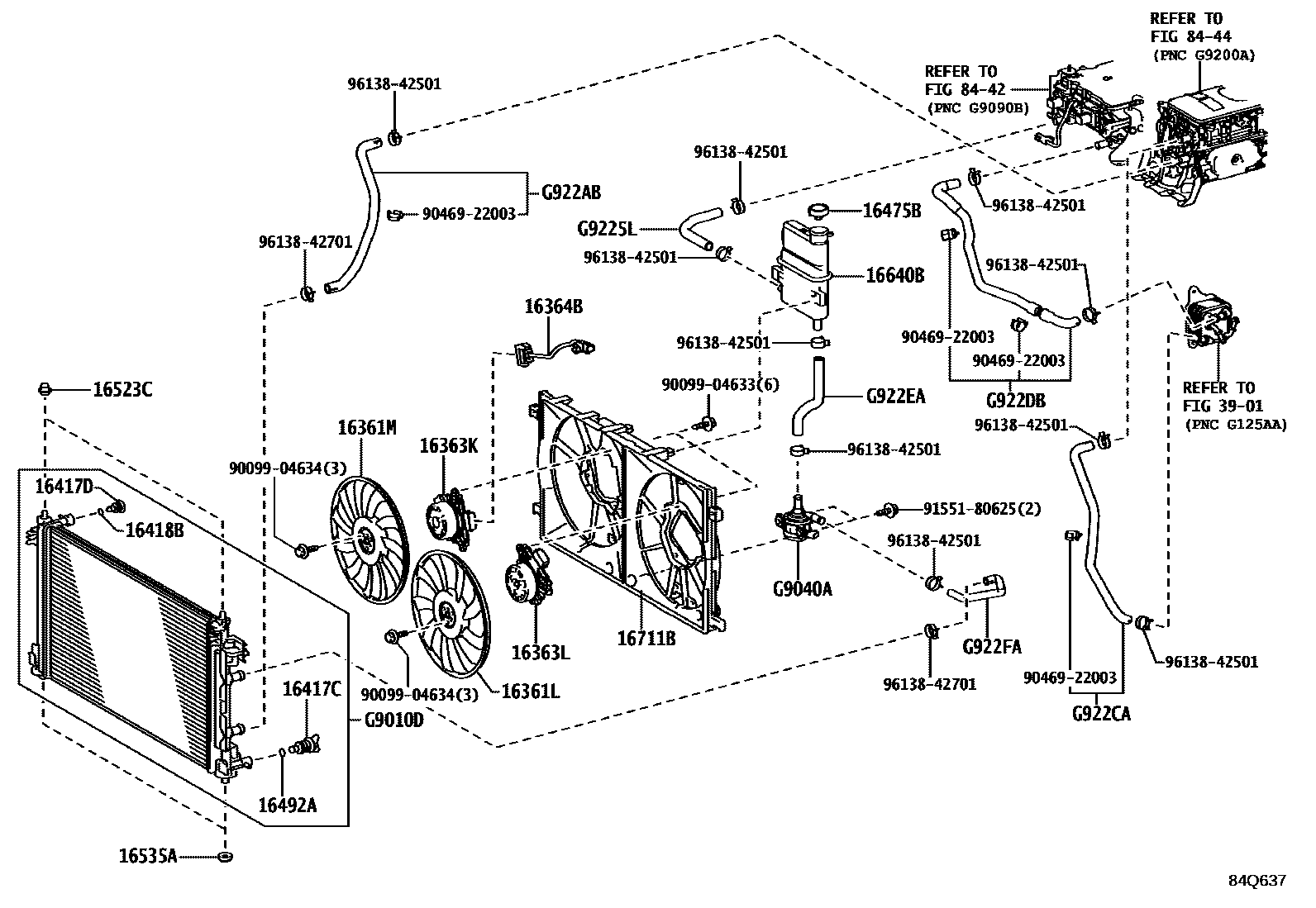

BEV COOLING
16361LFAN, LH
16361MFAN, RH
16363KMOTOR, COOLING FAN W/CONTROLLER, RH
16363LMOTOR, COOLING FAN W/CONTROLLER, LH
16364BWIRE, COOLING FAN
16417CCOCK, RADIATOR DRAIN, NO.1
16417DCOCK, RADIATOR DRAIN, NO.2
16418BPACKING(FOR RADIATOR DRAIN COCK)
16475BCAP, RESERVE TANK
16492ARING, O(FOR RADIATOR RESERVE TANK COCK)
16523CCUSHION, RADIATOR SUPPORT
16535ASUPPORT, RADIATOR, LOWER
16640BTANK ASSY, RADIATOR RESERVE
16711BSHROUD, FAN
3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)
8442DC/DC CONVERTER & CHARGER(BEV OR FCEV)
8444INVERTER(BEV OR FCEV)
G9010DRADIATOR ASSY
G9040APUMP ASSY, WATER W/MOTOR
G9225LHOSE, INVERTER COOLING, NO.1
G922ABHOSE, INVERTER COOLING INLET, NO.1
G922CAHOSE, INVERTER COOLING OUTLET, NO.1
G922DBHOSE, EV COOLING OUTLET, NO.2
G922EAHOSE, EV WATER PUMP INLET
G922FAHOSE, EV WATER PUMP OUTLET, NO.1
9009904633
main90099-04633
9009904634
main90099-04634
9046922003
main90469-22003
9155180625
main91551-80625
9613842501
main96138-42501
9613842701
main96138-42701
31 parts on this diagram · 1 diagram in section
