EPC Data

CLEARANCE & BACK SONAR

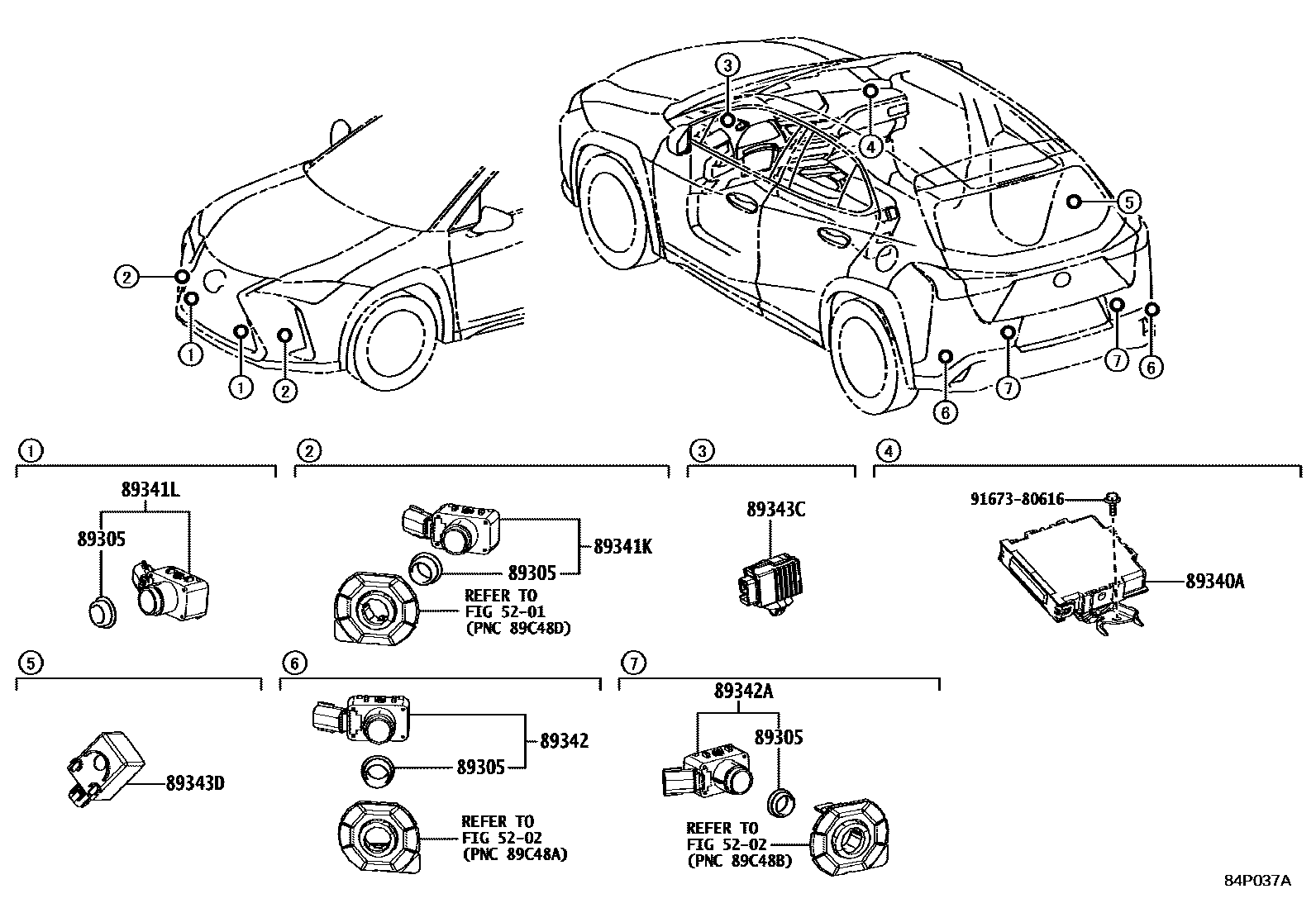

Parts diagram
5201FRONT BUMPER & BUMPER STAY
→ Go to FIG 52-01
5202REAR BUMPER & BUMPER STAY
→ Go to FIG 52-02
89305CUSHION SET, ULTRASONIC SENSOR
main89305-47010i202207-202305
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
main89305-52010i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-76190i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT)
main89340-76200i202207
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT)
main89340-76230i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
main89340-76240i202207
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main89340-76260i202303-202305
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
main89340-76270i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT)
main89340-76290i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-33220-A2×2i202207
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083 ,2LJ,2XN; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083 ,2LJ ,2XN; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083 ,2LJ ,2XN; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITENOVA GF.,083 ,2LJ ,2XN
main89341-33220-A3×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085
main89341-33220-B4×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICTITANIUM,1J7; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7
main89341-33220-C2×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212
main89341-33220-C3×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACKGF.,223; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACK GF.,223; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACKGF.,223
main89341-33220-G4×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKIM.M.,6X4; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKI M.M.,6X4; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKIM.M.,6X4
main89341-33220-J1×2i202207
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1
main89341-33220-L0×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLAZING CARNELIAN CONTRAS,4Y1; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLAZING CARNELIAN CONTRAS,4Y1
main89341-33220-P9×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1 ,2XP ,2ZG; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1 ,2XP ,2ZG; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1 ,2XP ,2ZG; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICCHROME,1L1 ,2XP ,2ZG; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1
main89341-33220-R3×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUEGF.,8Y6; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUE GF.,8Y6; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUEGF.,8Y6
main89341-33220-S0×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2 ,2XQ,2ZH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2 ,2XQ ,2ZH; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2 ,2XQ ,2ZH; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICIRIDIUM,1L2 ,2XQ ,2ZH; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2
main89341-33220-X0×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,2LN ,2XR ,3T2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,2LN,2XR ,3T2; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,2LN,2XR ,3T2; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDERRED,2LN ,2XR ,3T2; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2
main89341-K0060-20×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACKGF.,223
main89341-K0060-A5×2i202401
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083 ,2LJ; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITENOVA GF.,083 ,2LJ
main89341-K0060-A6×2i202401-202411
KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085
main89341-K0060-C9×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212
main89341-K0060-D9×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,2LN,3T2; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDERRED,2LN ,3T2; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2
main89341-K0060-G4×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKIM.M.,6X4
main89341-K0060-J7×2i202401
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,8X1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,8X1
main89341-K0060-J9×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUEGF.,8Y6
main89341-K0060-L1×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC COPPER,4Y5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC COPPER,4Y5; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC COPPER,4Y5 ,M03; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICCOPPER,4Y5 ,M03; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC COPPER,4Y5
main89341-K0060-P2×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICTITANIUM,1J7; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7
main89341-K0060-P4×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2 ,2ZH; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICIRIDIUM,1L2 ,2ZH; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2
main89341-K0060-P7×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1 ,2ZG; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICCHROME,1L1 ,2ZG; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-33220-C4×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MAT BLACK,MAT BLACK; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MAT BLACK,MAT BLACK; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MAT BLACK,MAT BLACK; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MAT BLACK,MAT BLACK; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MAT BLACK,MATBLACK; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MAT BLACK,MAT BLACK; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MATBLACK,MAT BLACK; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MAT BLACK,MATBLACK
main89341-50080-C0×2i202401-202411
KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DUMMY-MAT BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-33220-A2×2i202207
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083 ,2LJ,2XN; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083 ,2LJ ,2XN; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083 ,2LJ ,2XN; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITENOVA GF.,083 ,2LJ ,2XN
main89341-33220-A3×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085
main89341-33220-B4×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICTITANIUM,1J7; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7
main89341-33220-C2×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212
main89341-33220-C3×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACKGF.,223; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACK GF.,223; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACKGF.,223
main89341-33220-G4×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKIM.M.,6X4; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKI M.M.,6X4; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKIM.M.,6X4
main89341-33220-J1×2i202207
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1
main89341-33220-L0×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLAZING CARNELIAN CONTRAS,4Y1; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLAZING CARNELIAN CONTRAS,4Y1
main89341-33220-P9×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1 ,2XP ,2ZG; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1 ,2XP ,2ZG; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1 ,2XP ,2ZG; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICCHROME,1L1 ,2XP ,2ZG; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1
main89341-33220-R3×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUEGF.,8Y6; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUE GF.,8Y6; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUEGF.,8Y6
main89341-33220-S0×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2 ,2XQ,2ZH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2 ,2XQ ,2ZH; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2 ,2XQ ,2ZH; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICIRIDIUM,1L2 ,2XQ ,2ZH; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2
main89341-33220-X0×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,2LN ,2XR ,3T2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,2LN,2XR ,3T2; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,2LN,2XR ,3T2; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDERRED,2LN ,2XR ,3T2; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2
main89341-K0060-20×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACKGF.,223
main89341-K0060-A5×2i202401
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083 ,2LJ; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITENOVA GF.,083 ,2LJ
main89341-K0060-A6×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085
main89341-K0060-C9×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212
main89341-K0060-D9×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,2LN,3T2; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDERRED,2LN ,3T2; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2
main89341-K0060-G4×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKIM.M.,6X4
main89341-K0060-J7×2i202401
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,8X1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,8X1
main89341-K0060-J9×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUEGF.,8Y6
main89341-K0060-L1×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC COPPER,4Y5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC COPPER,4Y5; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC COPPER,4Y5 ,M03; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICCOPPER,4Y5 ,M03; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC COPPER,4Y5
main89341-K0060-P2×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICTITANIUM,1J7; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7
main89341-K0060-P4×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2 ,2ZH; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICIRIDIUM,1L2 ,2ZH; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2
main89341-K0060-P7×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1 ,2ZG; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICCHROME,1L1 ,2ZG; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-33220-A2×2i202207
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083 ,2LJ,2XN; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083 ,2LJ ,2XN; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083 ,2LJ ,2XN; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITENOVA GF.,083 ,2LJ ,2XN
main89341-33220-A3×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085
main89341-33220-B4×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICTITANIUM,1J7; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7
main89341-33220-C2×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212
main89341-33220-C3×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACKGF.,223; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACK GF.,223; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACKGF.,223
main89341-33220-C4×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MAT BLACK; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MAT BLACK; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MAT BLACK; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MAT BLACK; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MAT BLACK; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MAT BLACK; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MATBLACK; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MAT BLACK
main89341-33220-G4×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKIM.M.,6X4; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKI M.M.,6X4; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKIM.M.,6X4
main89341-33220-J1×2i202207
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1
main89341-33220-L0×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLAZING CARNELIAN CONTRAS,4Y1; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLAZING CARNELIAN CONTRAS,4Y1
main89341-33220-P9×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1 ,2XP ,2ZG; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1 ,2XP ,2ZG; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1 ,2XP ,2ZG; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICCHROME,1L1 ,2XP ,2ZG; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1
main89341-33220-R3×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUEGF.,8Y6; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUE GF.,8Y6; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUEGF.,8Y6
main89341-33220-S0×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2 ,2XQ,2ZH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2 ,2XQ ,2ZH; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2 ,2XQ ,2ZH; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICIRIDIUM,1L2 ,2XQ ,2ZH; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2
main89341-33220-X0×2i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,2LN ,2XR ,3T2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,2LN,2XR ,3T2; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,2LN,2XR ,3T2; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDERRED,2LN ,2XR ,3T2; KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2
main89341-K0060-20×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACKGF.,223
main89341-K0060-A5×2i202401
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083 ,2LJ; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITENOVA GF.,083 ,2LJ
main89341-K0060-A6×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085
main89341-K0060-C9×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212
main89341-K0060-D9×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,2LN,3T2; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDERRED,2LN ,3T2; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2
main89341-K0060-G4×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKIM.M.,6X4
main89341-K0060-J7×2i202401
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,8X1; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,8X1
main89341-K0060-J9×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUEGF.,8Y6
main89341-K0060-L1×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC COPPER,4Y5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC COPPER,4Y5; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC COPPER,4Y5 ,M03; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICCOPPER,4Y5 ,M03; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC COPPER,4Y5
main89341-K0060-P2×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICTITANIUM,1J7; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7
main89341-K0060-P4×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC IRIDIUM,1L2; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC IRIDIUM,1L2 ,2ZH; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICIRIDIUM,1L2 ,2ZH; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2
main89341-K0060-P7×2i202401
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1 ,2ZG; F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONICCHROME,1L1 ,2ZG; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-48010i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
89343DBUZZER, CLEARANCE WARNING, NO.2
main89747-30040i202207
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
9167380616
main91673-80616

11 parts on this diagram · 1 diagram in section
