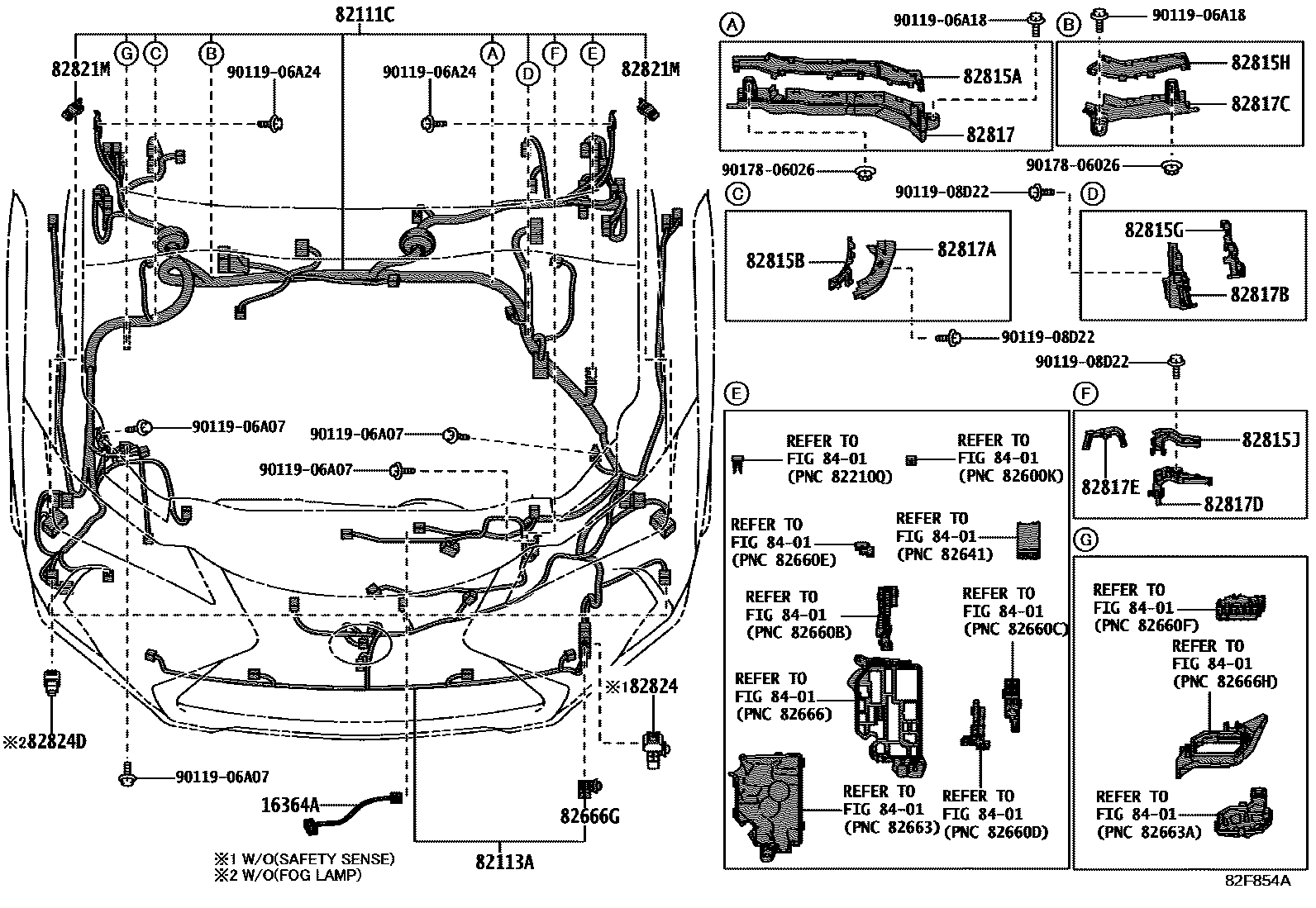

WIRING & CLAMP
16364AWIRE, COOLING FAN
82111CWIRE, FRONT COMPARTMENT, MAIN
82666GHOLDER, CONNECTOR NO.8
82815ACOVER, WIRING HARNESS PROTECTOR
82815BCOVER, WIRING HARNESS PROTECTOR
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
82815HCOVER, WIRING HARNESS PROTECTOR NO.6
82815JCOVER, WIRING HARNESS PROTECTOR, NO.7
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82817CPROTECTOR, WIRING HARNESS, NO.4
82817DPROTECTOR, WIRING HARNESS, NO.5
82817EPROTECTOR, WIRING HARNESS, NO.6
82824CONNECTOR, WIRING HARNESS
82824DCONNECTOR, WIRING HARNESS
F SPORT
F SPORT(DESIGN)
KOREA SPEC&LUXURY PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
KOREA SPEC& PREMIUM PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
8401SWITCH & RELAY & COMPUTER
9011906A07
main90119-06A07
9011906A18
main90119-06A18
9011906A24
main90119-06A24
9011908D22
main90119-08D22
9017806026
main90178-06026
24 parts on this diagram · 21 diagrams in section
