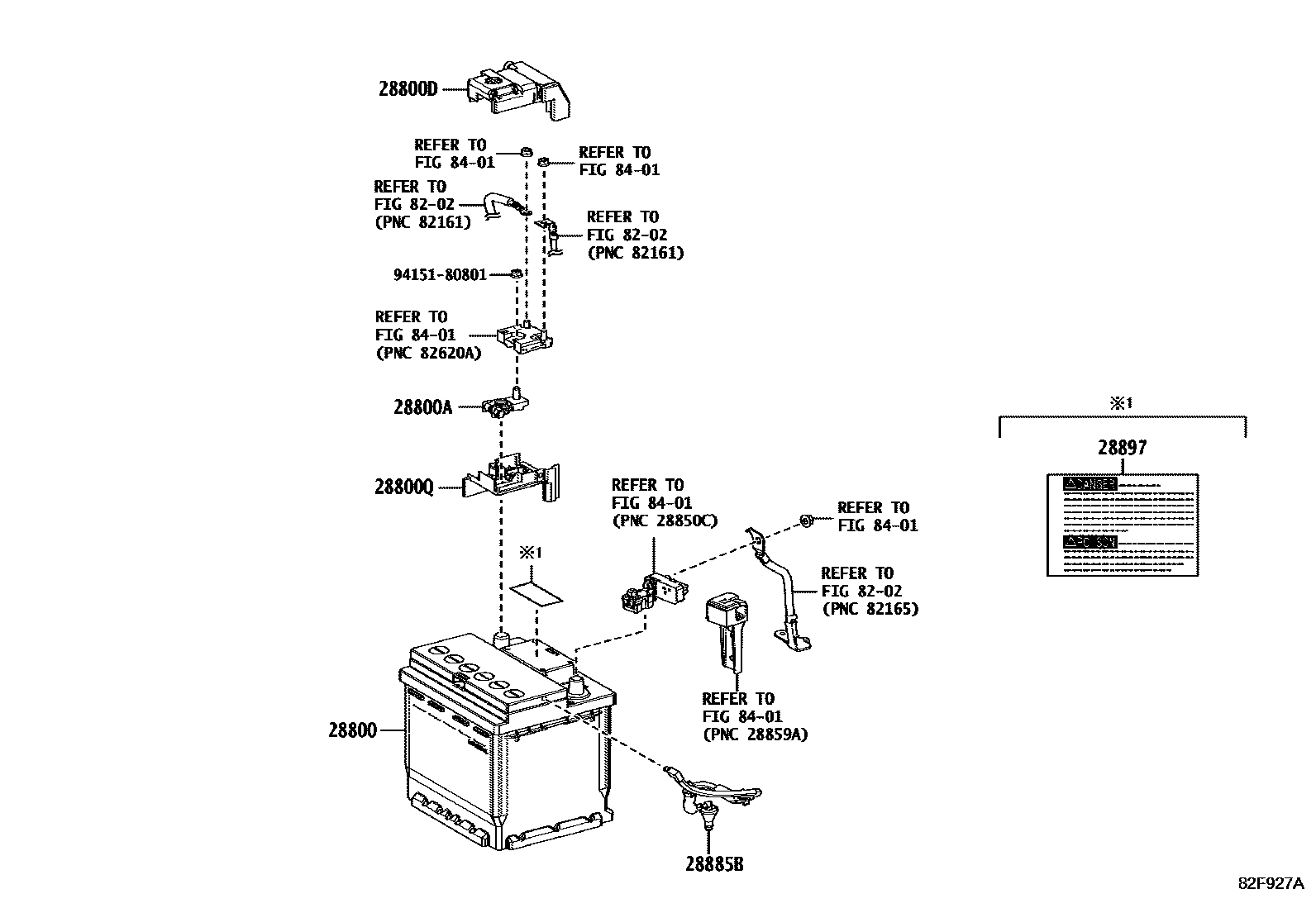

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 112V BATTERY 0007 1EV BATTERY 0008 1EV BATTERY 0009 1EV BATTERY 0010 1EV BATTERY 0011 1EV BATTERY 0012 1EV BATTERY

28800BATTERY

main28800-21211i4KM..KMA10202303-202305

LN0

main28800-21221iM20AFXS..MZAH1#202207-202302

LN1

main28800-21222iM20AFXS..MZAH11,16202401-202402

LN1

main28800-21223iM20AFXS..MZAH10,15202404

LN1

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i4KM..KMA10202207-202305

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-12030iM20AFXS..MZAH10,15202207

main82621-47020i4KM..KMA10202303-202305

main82621-76020iM20AFXS..MZAH11,16202401

28800QCOVER, CONNECTOR(FOR BATTERY)

main82817-1AB10iM20AFXS..MZAH10,15202207

28885BHOSE, BATTERY

main28885-24010iM20AFXS..MZAH10,15202207

28897PLATE, BATTERY CAUTION

main28897-24020iM20AFXS..MZAH15202207

CANADA SPEC

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

9 parts on this diagram · 12 diagrams in section
