ARMREST & VISOR

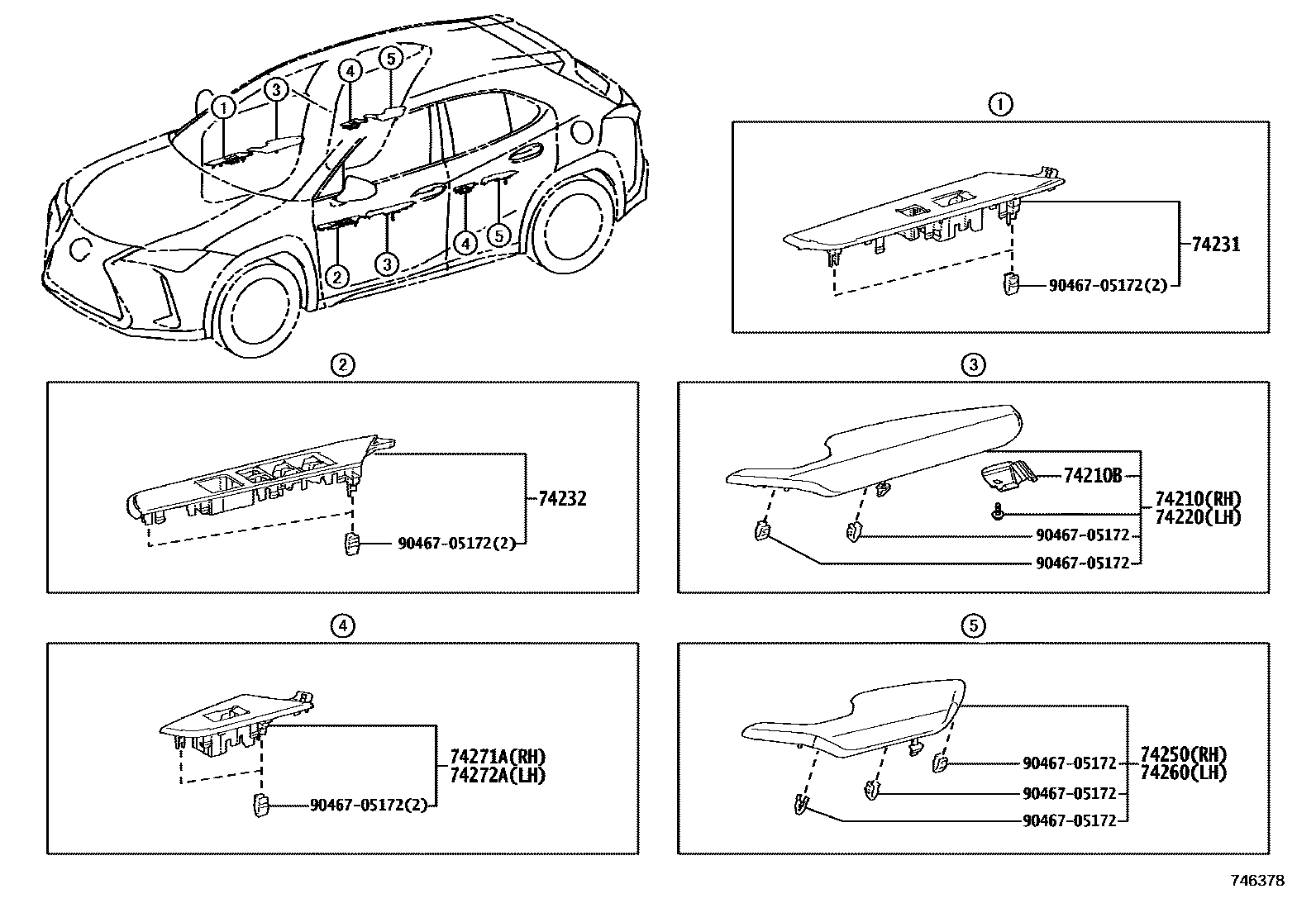

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-76020-B0i202401-202512
WHITE ASH,TRIM1#,8#
main74210-76020-C0i202207-202305
BLACK,TRIM2#
main74210-76020-D1i202207
RED,TRIM3#
main74210-76020-E2i202207
HAZEL,TRIM42
main74210-76020-E3i202207-202305
MAUVE,TRIM43
74210BBRACKET, ARMREST SET
main67645-76010i202207-202305
RH
main67646-76010i202207-202305
LH
74220ARMREST ASSY, FRONT, LH
main74220-76020-B0i202303-202305
WHITE ASH,TRIM1#
main74220-76020-C0i202401
BLACK,TRIM2#
main74220-76020-D1i202401
RED,TRIM3#
main74220-76020-E2i202207
HAZEL,TRIM42
main74220-76020-E3i202207-202305
MAUVE,TRIM43
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-76050supersedes 74231-76030i202207
F SPORT; LUXURY PACKAGE
main74231-76090supersedes 74231-76070i202401
F SPORT; LUXURY PACKAGE
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-76050supersedes 74232-76030i202207
F SPORT; LUXURY PACKAGE
main74232-76090supersedes 74232-76070i202401
F SPORT; LUXURY PACKAGE
74250ARMREST ASSY, REAR RH
main74250-76010-B0i202207
WHITE ASH,TRIM1#,8#
main74250-76010-C0i202401
BLACK,TRIM2#
main74250-76010-D1i202401
RED,TRIM3#
main74250-76010-E2i202207-202305
HAZEL,TRIM42
main74250-76010-E3i202207-202305
MAUVE,TRIM43
74260ARMREST ASSY, REAR LH
main74260-76010-B0i202401-202512
WHITE ASH,TRIM1#,8#
main74260-76010-C0i202401
BLACK,TRIM2#
main74260-76010-D1i202207
RED,TRIM3#
main74260-76010-E2i202207
HAZEL,TRIM42
main74260-76010-E3i202207-202305
MAUVE,TRIM43
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-76030supersedes 74271-76020i202207
F SPORT; LUXURY PACKAGE
main74271-76050supersedes 74271-76040i202401
F SPORT; LUXURY PACKAGE
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-76030supersedes 74272-76020i202207-202305
LUXURY PACKAGE
main74272-76050supersedes 74272-76040i202401
F SPORT; LUXURY PACKAGE
9046705172
main90467-05172

10 parts on this diagram · 2 diagrams in section
