FRONT SEAT & SEAT TRACK

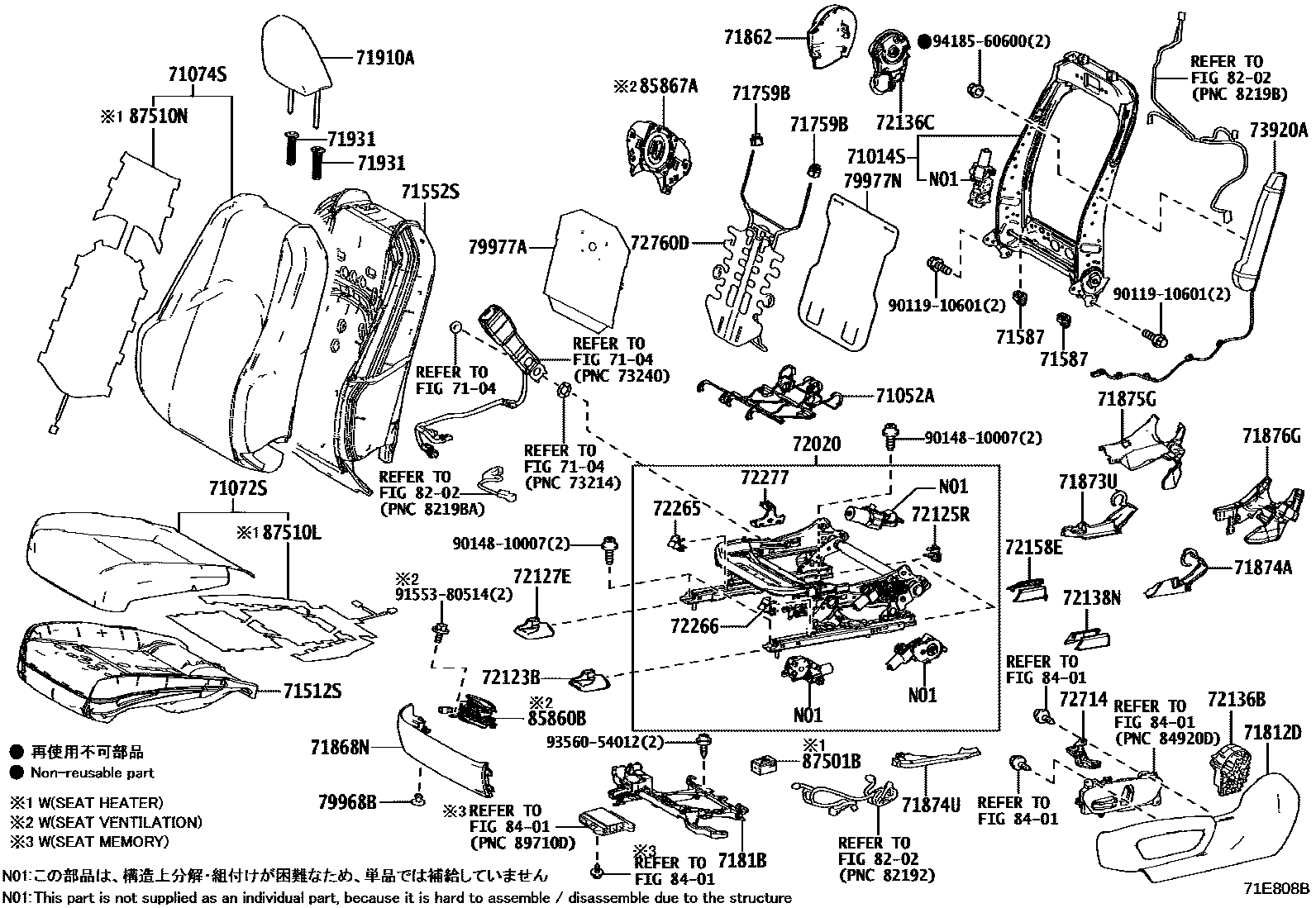

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-76170i202303-202305
main71014-76090supersedes 71014-76150i202401
KOREA SPEC&F SPORT&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-47090i202401
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-76C30-B1i202207
WHITE ASH,TRIM1#,8#
main71072-76E70-B0i202303-202305
WHITE ASH,TRIM1#
main71072-76E70-C0i202303-202305
BLACK,TRIM2#
main71072-76E70-E0i202303-202305
HAZEL,TRIM4#
main71072-76E30-B0i202401
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&SEAT VENTILATION-WITH,WHITE ASH,TRIM1#
main71072-76E30-C0supersedes 71072-76C30-C1i202401
KOREA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATI
main71072-76E30-E0supersedes 71072-76C30-E1i202401
KOREA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATI
main71072-76E30-E3i202207
F SPORT(DESIGN)&SEAT HEATER-WITH(FRONT SEAT)&SEAT VENTILATION-WITH,MAUVE,TRIM43
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-76A30-B2i202207
WHITE ASH/BLUE,TRIM8#
main71074-76A90-B1i202303-202305
WHITE ASH,TRIM1#
main71074-76A90-C1i202303-202305
BLACK,TRIM2#
main71074-76A90-E4i202303-202305
HAZEL,TRIM4#
main71074-76D50-B4i202401-202512
WHITE ASH/BLUE,TRIM8#
main71074-76A80-B1supersedes 71074-76A30-B3i202207
PREMIUM PACKAGE&OUTSIDE REAR VIEW MIRROR-*551 & *BSM&SEAT HEATER-WITH(FRONT SEAT)&SEAT VENTILATION-WITH,WHITE ASH,TRIM1#
main71074-76A80-C1supersedes 71074-76A30-C1i202207
PREMIUM PACKAGE&OUTSIDE REAR VIEW MIRROR-*551 & *BSM&SEAT HEATER-WITH(FRONT SEAT)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71074-76A80-E3i202207
F SPORT(DESIGN)&SEAT HEATER-WITH(FRONT SEAT)&SEAT VENTILATION-WITH,MAUVE,TRIM43
main71074-76A80-E4supersedes 71074-76A30-E2i202207
PREMIUM PACKAGE&OUTSIDE REAR VIEW MIRROR-*551 & *BSM&SEAT HEATER-WITH(FRONT SEAT)&SEAT VENTILATION-WITH,HAZEL,TRIM42
main71074-76D80-B2supersedes 71074-76D50-B5i202401
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&SEAT VENTILATION-WITH,WHITE ASH,TRIM1#
main71074-76D80-C2supersedes 71074-76D50-C2i202401
KOREA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATI
main71074-76D80-E2supersedes 71074-76D50-E2i202401
KOREA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATI
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-76070supersedes 71512-76060i202303-202305
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-76070supersedes 71552-76060i202303-202305
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-47010×4i202207-202305
71759BHOOK, FRONT SEATBACK
main71759-50040×4i202207-202305
main71759-52050×2supersedes 71759-50040i202401
KOREA SPEC& PREMIUM PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL&SEAT HEATER-WITH(FRONT SEAT)&SEAT VENTILATION-WITH&AUDIO-EMV & 10SPEAKER,LH SEAT
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-76100-C0i202207
BLACK,TRIM1#,2#,3#,4#,8#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-33010i202207-202305
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-47090-C1i202303-202305
BLACK,TRIM1#,2#,4#
71868NSHIELD, FRONT SEAT CUSHION, FRONT LH
main71868-33100-C0i202303-202305
BLACK,TRIM1#,2#,4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-76010i202207-202305
71873USHIELD, FRONT SEAT CUSHION, LOWER RH
main71874-47080i202207-202305
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-33140i202401
main71873-47080supersedes 71873-33140i202303-202305
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-76010i202207
71874USHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-47090i202401
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71876-47080-C1i202207
BLACK,TRIM1#,2#,3#,4#,8#
main71876-76020-C0i202303-202305
BLACK,TRIM1#,2#,4#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-47040-C1i202207
BLACK,TRIM1#,2#,3#,4#,8#
71910AHEADREST ASSY, FRONT SEAT
main71910-76481-B0×2i202207-202302
WHITE ASH,TRIM1#
main71910-76481-B2×2i202401
WHITE ASH,TRIM1#
main71910-76481-C4×2i202302-202305
BLACK,TRIM2#
main71910-76481-E2×2i202207-202302
HAZEL,TRIM4#
main71910-76481-E4×2i202401
HAZEL,TRIM4#
main71910-76481-J0×2i202207
BLUE,TRIM8#
main71910-33D10-C3×2supersedes 71910-76481-C4i202207-202302
F SPORT&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71910-33D10-C7×2supersedes 71910-76481-C4i202401-202512
MEXICO SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71910-33D10-D3×2i202207-202302
F SPORT,RED,TRIM3#
main71910-33D10-D6×2i202401-202512
MEXICO SPEC&F SPORT&OUTSIDE REAR VIEW MIRROR-*AREM, *BSM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILAT
main71910-76481-E3×2i202207
F SPORT(DESIGN)&SEAT HEATER-WITH(FRONT SEAT)&SEAT VENTILATION-WITH,MAUVE,TRIM43
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-C5×2supersedes 71931-47030-C4i202303-202305
W(LOCK),BLACK,TRIM1#,2#,4#
main71931-47030-C4×2i202207
W/O(LOCK),BLACK,TRIM1#,2#,3#,4#,8#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-33540i202207-202305
main72020-33500supersedes 72020-33520i202401-202512
MEXICO SPEC&F SPORT&OUTSIDE REAR VIEW MIRROR-*AREM, *BSM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILAT
main72020-33510supersedes 72020-33540i202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, *BSM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-
72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT
main72123-10100×2i202401
72125RCOVER, SEAT TRACK, UPPER REAR NO.1
main72125-47020×4i202207-202305
sub72125-47010
72127ECOVER, SEAT TRACK BRACKET, INNER FRONT
main72123-10100×2i202207
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-33230i202401
72136BSPACER, SEAT TRACK, LOWER NO.3
main72136-33290i202401
72136CSPACER, SEAT TRACK, LOWER NO.4
main72136-33300i202401
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72137-47060i202207-202305
72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH
main72158-47080i202207
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-47020×2i202401
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-47020×2i202207
72277PROTECTOR, SEAT SLIDE POSITION SENSOR,
main72277-47050i202207-202305
72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH
main72714-33010i202401
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-33150supersedes 72750-33140i202303-202305
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-42090i202207-202305
79968BCLIP
main90467-07215×2i202207-202305
79977AFELT, SEATBACK
main79977-33040×2i202207-202305
79977NFELT, SEATBACK
main79977-76010×2supersedes 79977-76010i202303-202305
8202
8401
85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH
main85801-76010i202303-202305
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
main85867-42040i202303-202305
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-33010i202303-202305
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-76140i202303-202305
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-76020i202303-202305
9011910601
main90119-10601
9014810007
main90148-10007
9155380514
main91553-80514
9356054012
main93560-54012
9418560600
main94185-60600

52 parts on this diagram · 8 diagrams in section
