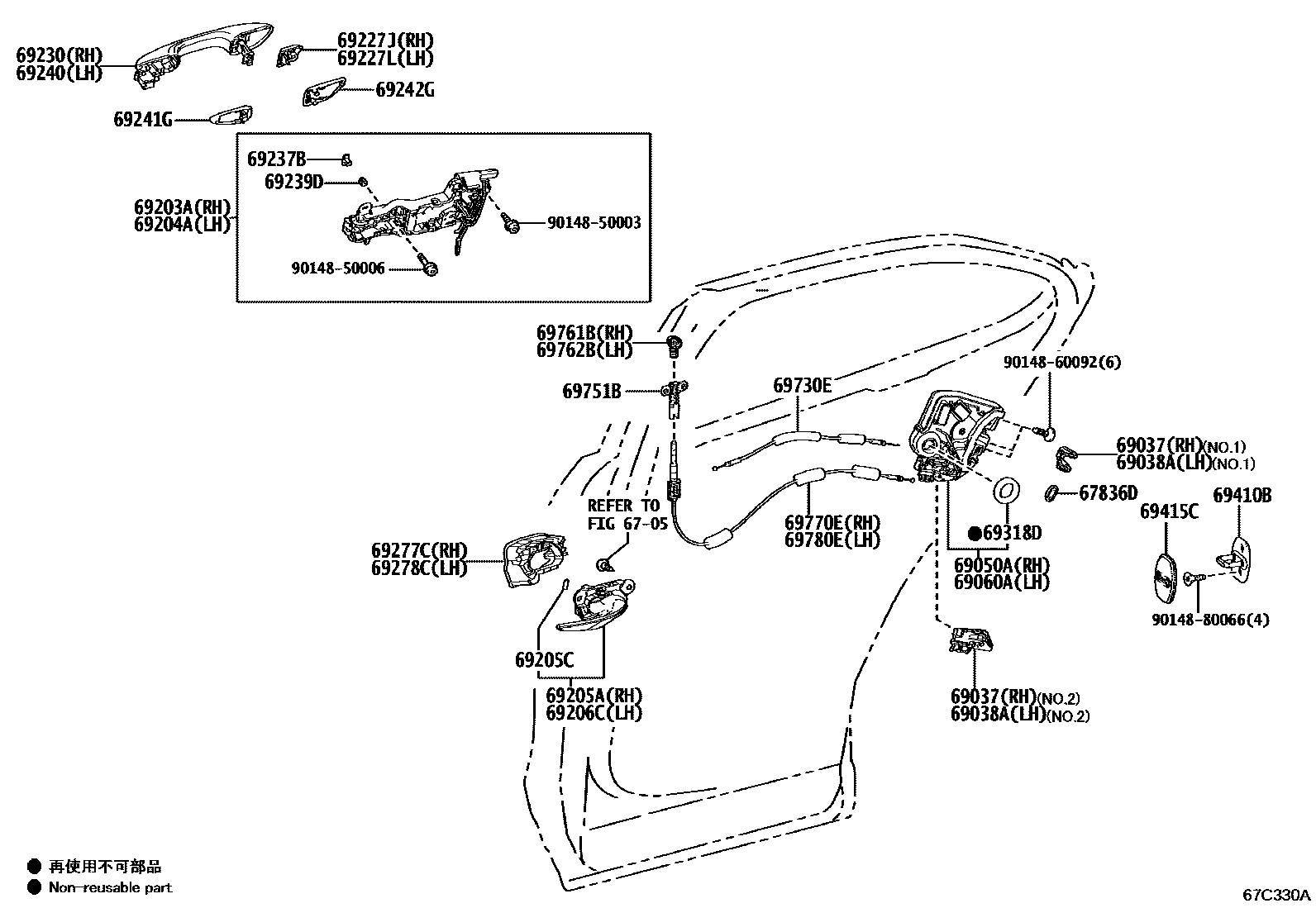

REAR DOOR LOCK & HANDLE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-76010×2iKMA10202207-202305

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69031-76010iMZAH11,16202401

NO.1

main69037-30010iMZAH11,16202401

NO.2

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69032-76010iKMA10202207-202305

NO.1

main69038-30010iMZAH10,15202207

NO.2

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-76031iMZAH11,16202401

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-76031iMZAH10,15202207

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-76011iKMA10202207-202305

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-76011iKMA10202207-202305

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69270-76010iKMA10202207-202305

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main69275-30070×2iKMA10202207-202305

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69280-76010iKMA10202207-202305

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-50060iKMA10202207-202305

BLACK

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69228-50040iKMA10202207-202305

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-76030-A0iMZAH10,15202207

WHITE NOVA GF.,083 ,2LJ ,2XN

main69210-76030-A1iMZAH11,16202401-202512

SONIC QUARTZ,085

main69210-76030-B2iMZAH10,15202207

SONIC TITANIUM,1J7

main69210-76030-B3iMZAH10,15202207

SONIC CHROME,1L1 ,2XP ,2ZG

main69210-76030-B4iMZAH11,16202401

SONIC IRIDIUM,1L2 ,2ZH

main69210-76030-C0iKMA10202207-202305

BLACK,212

main69210-76030-C1iMZAH11,16202401

GRAPHITE BLACK GF.,223

main69210-76030-D0iKMA10202303-202305

MADDER RED,3T2

main69210-76030-E1iMZAH10,15202207

BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1

main69210-76030-E2iMZAH11,16202401

SONIC COPPER,4Y5 ,M03

main69210-76030-G0iMZAH11,16202401

TERRANE KHAKI M.M.,6X4

main69210-76030-J0iMZAH11,16202401

HEAT BLUE CONTRAST LAYERI,2QF ,8X1

main69210-76030-J1iMZAH11,16202401-202512

CELESTIAL BLUE GF.,8Y6

69237BNUT, REAR DOOR HANDLE

main69237-62010×2iKMA10202207-202305

69239DBUSH, REAR DOOR HANDLE

main69239-47010×2iMZAH11,16202401

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-76020-A0iMZAH11,16202401

WHITE NOVA GF.,083 ,2LJ

main69220-76020-A1iMZAH11,16202401-202512

SONIC QUARTZ,085

main69220-76020-B2iKMA10202207-202305

SONIC TITANIUM,1J7

main69220-76020-B3iMZAH10,15202207

SONIC CHROME,1L1 ,2XP ,2ZG

main69220-76020-B4iMZAH10,15202207

SONIC IRIDIUM,1L2 ,2XQ ,2ZH

main69220-76020-C0iMZAH11,16202401-202512

BLACK,212

main69220-76020-C1iKMA10202207-202305

GRAPHITE BLACK GF.,223

main69220-76020-D0iMZAH10,15202207

MADDER RED,2LN ,2XR ,3T2

main69220-76020-E1iKMA10202303-202305

BLAZING CARNELIAN CONTRAS,4Y1

main69220-76020-E2iMZAH11,16202401

SONIC COPPER,4Y5 ,M03

main69220-76020-G0iMZAH11,16202401

TERRANE KHAKI M.M.,6X4

main69220-76020-J0iMZAH10,15202207

HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1

main69220-76020-J1iMZAH10,15202207

CELESTIAL BLUE GF.,8Y6

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-50040iKMA10202207-202305

RH

main69242-50040iKMA10202207-202305

LH

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-50050iKMA10202207-202305

RH

main69242-50050iKMA10202207-202305

LH

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69287-76020iKMA10202207-202305

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69288-76020iKMA10202207-202305

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iKMA10202207-202305

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-30060×2iMZAH1#202207-202208

main69410-76010×2iKMA10202208-202305

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-76011×2iMZAH11,16202401

69730ECABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1

main69730-76020×2iKMA10202207-202305

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-76010×2iKMA10202207-202305

69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH

main69761-76020-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH

main69761-76020-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-76031iKMA10202207-202305

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-76031iKMA10202207-202305

9014850003

main90148-50003

9014850006

main90148-50006

9014860092

main90148-60092

9014880066

main90148-80066

34 parts on this diagram · 1 diagram in section
