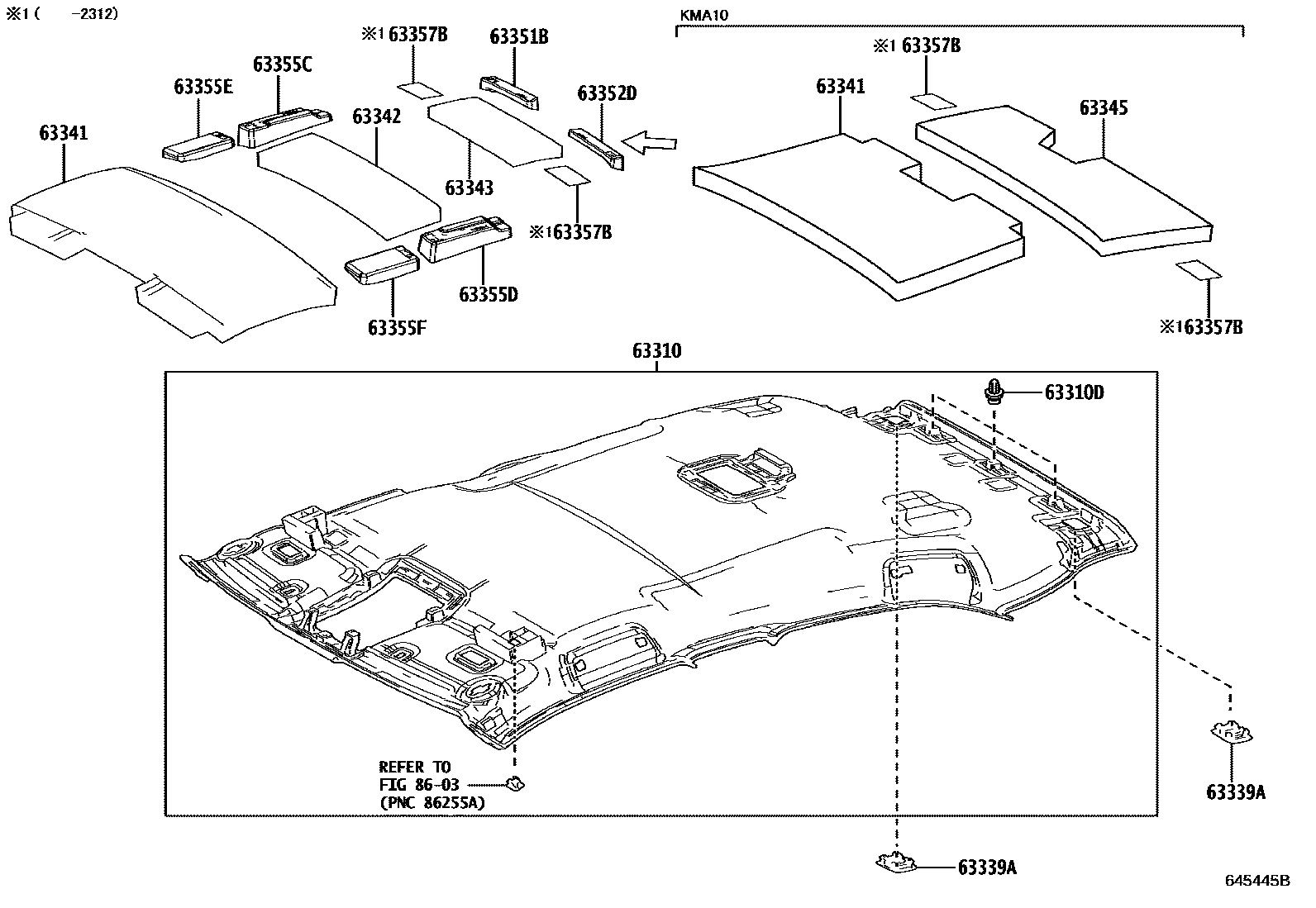

ROOF HEADLINING & SILENCER PAD

0001 1NORMAL ROOF 0002 1MOON ROOF

63310HEADLINING ASSY, ROOF

main63310-76140-A0supersedes 63310-76110-A0iMZAH11,16202401

MOON ROOF-WITH,WHITE,TRIM8#

main63310-76140-C0supersedes 63310-76110-C0iMZAH11,16202401

MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#

63310DCLIP, ROOF HEADLINING

main90467-09240×3iKMA10202207-202305

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-76010-A0×2iMZAH10,15202207

WHITE,TRIM8#

main63339-76010-C0×2iKMA10202303-202305

BLACK,TRIM1#,2#,4#

63341PAD, ROOF SILENCER, NO.1

main63341-76030×2iKMA10202303-202305

63342PAD, ROOF SILENCER, NO.2

main63342-76030iMZAH10,15202207

63343PAD, ROOF SILENCER, NO.3

main63343-76050iMZAH10,15202207

63345PAD, ROOF SILENCER, NO.5

main63345-76030iKMA10202303-202305

63351BPAD, ROOF HEADLINING

main63351-76020iMZAH10,15202207

63352DPAD, ROOF HEADLINING, NO.2

main63352-76020iMZAH10,15202207

63355CPAD, ROOF HEADLINING, RH

main63355-76030iMZAH10,15202207

63355DPAD, ROOF HEADLINING, LH

main63356-76030iMZAH10,15202207

63355EPAD, ROOF HEADLINING, NO.2 RH

main63355-76020iMZAH10,15202207

63355FPAD, ROOF HEADLINING, NO.2 LH

main63356-76020iMZAH10,15202207

63357BSILENCER, ROOF

main63357-78020×2iKMA10202207-202305

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

15 parts on this diagram · 2 diagrams in section
