CONSOLE BOX & BRACKET

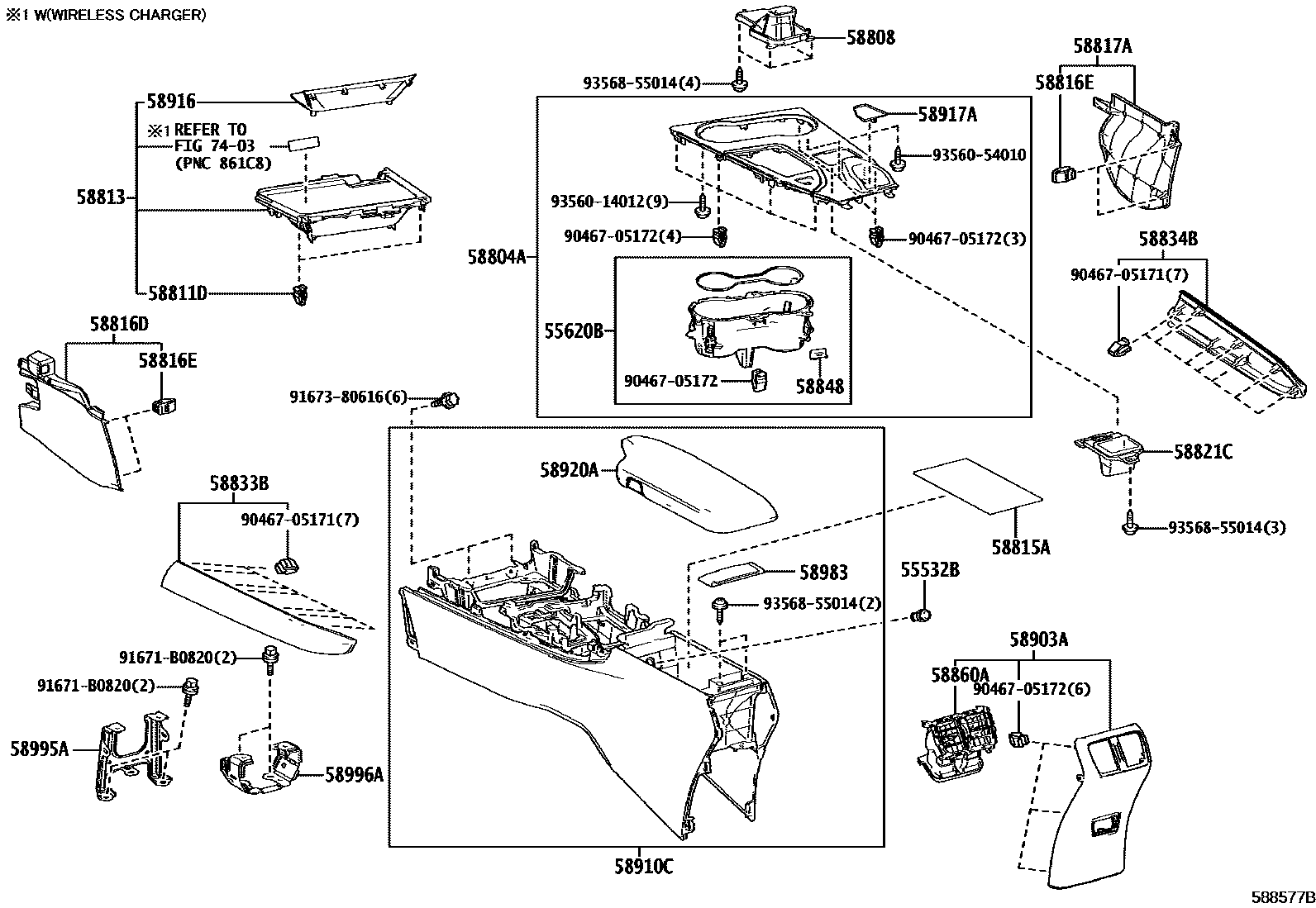

Parts diagram

55532BCOVER, CIGAR LIGHTER HOLE

main55532-48010i202207-202305

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-76010i202303-202305

main55620-76030i202401

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-76200i202207

main58804-76210i202303-202305

main58804-76300supersedes 58804-76280i202401-202512

F SPORT&STEERING WHEEL-WITH(HEATER & PADDLE SWITCH)&SEAT HEATER-WITH(FRONT SEAT); F SPORT&STEERING WHEEL-WITH(PADDLE SWITCH); F SPORT&STEERING WHEEL-WITH(PADDLE SWITCH)&SEAT HEATER-WITH(FRONT SEAT)

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-76010-C0i202207

BLACK/RED,TRIM21,22,3#

main58808-76010-C7i202207

BLACK,TRIM1#,20,4#,8#

main58808-76010-C1i202207

F SPORT&STEERING WHEEL-WITH(HEATER & PADDLE SWITCH & VIBRATION)&SEAT HEATER-WITH(FRONT SEAT),BLACK/LT.GRAY,TRIM10,20; F SPORT&STEERING WHEEL-WITH(PADDLE SWITCH & VIBRATION)&SEAT HEATER-WITH(FRONT SEAT),BLACK/LT.GRAY,TRIM10,20; F SPORT(DESIGN)&SEAT HEATER-WITH(FRONT SEAT),BLACK/LT.GRAY,TRIM10,20; KOREA SPEC&F SPORT&STEERING WHEEL-WITH(HEATER & PADDLE SWITCH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY),BLACK/LT.GRAY,TRIM10,20; KOREA SPEC&F SPORT&STEERING WHEEL-WITH(PADDLE SWITCH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY),BLACK/LT.GRAY,TRIM10,20; LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)& *DRS(SEAT MEMORY),BLACK/LT.GRAY,TRIM10,20; PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT),BLACK/LT.GRAY,TRIM10,20

58811DCLIP(FOR CONSOLE BOX)

main90467-05172×2i202207

58813BOX, CONSOLE, UPPER

main58813-76060supersedes 58813-76050i202207

WIRELESS CHARGER-WITH

main58813-76110supersedes 58813-76100i202401

WIRELESS CHARGER-WITH

58815ACARPET, CONSOLE BOX

main58815-76020i202401

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-76050-C0i202303-202305

BLACK,TRIM1#,2#,4#

58816ECLIP, CONSOLE BOX INSERT, FRONT

main90467-05172×4i202207-202305

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-76050-C0i202303-202305

BLACK,TRIM1#,2#,4#

58821CPANEL, CONSOLE, UPPER

main58821-76140i202207

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-76050-C0i202207

BLACK,TRIM1#,2#,4#,8#

main58833-76060-C0i202207

F SPORT,BLACK,TRIM1#,2#,3#,4#; LUXURY PACKAGE,BLACK,TRIM1#,2#,3#,4#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-76030-C0i202207

BLACK,TRIM1#,2#,4#,8#

main58834-76040-C0i202401

F SPORT,BLACK,TRIM1#,2#,3#,4#,8#; LUXURY PACKAGE,BLACK,TRIM1#,2#,3#,4#,8#

58848COVER, SHIFT LEVER HOLE

main58848-76010i202207-202305

58860AREGISTER ASSY, CONSOLE BOX

main58860-76010i202401

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-76020-C0i202207

BLACK,TRIM1#,2#,3#,4#,8#

main58903-76040-C0i202303-202305

BLACK,TRIM1#,2#,4#

58910CBOX ASSY, CONSOLE, REAR

main58910-76080-C2i202207

BLACK/WHITE ASH,TRIM1#,8#

main58910-76080-C3i202207

BLACK,TRIM2#

main58910-76080-C4i202207

BLACK/RED,TRIM3#

main58910-76080-C5i202207

BLACK/HAZEL,TRIM42

main58910-76080-C6i202207

BLACK/MAUVE,TRIM43

main58910-76090-C1i202303-202305

BLACK/WHITE ASH,TRIM1#

main58910-76090-C2i202303-202305

BLACK,TRIM2#

main58910-76090-C3i202303-202305

BLACK/HAZEL,TRIM4#

main58910-76120-C2i202401-202512

BLACK/WHITE ASH,TRIM1#,8#

main58910-76120-C3i202401

BLACK,TRIM2#

main58910-76120-C4i202401

BLACK/RED,TRIM3#

main58910-76120-C5i202401

BLACK/HAZEL,TRIM4#

58916MAT, BOX BOTTOM

main58916-76050i202207-202305

58917ACOVER, CONSOLE BOX, REAR

main58917-76030i202207-202305

58920AARMREST ASSY, REAR CONSOLE

main58920-76010-25i202207

BLACK/WHITE ASH,TRIM1#,8#

main58920-76010-26i202207-202305

BLACK/BLACK,TRIM2#

main58920-76010-27i202207

BLACK/RED,TRIM3#

main58920-76010-41i202401

BLACK/HAZEL,TRIM4#

main58920-76010-42i202207

BLACK/MAUVE,TRIM43

58983RETAINER, UPPER CONSOLE

main58983-76010i202207-202305

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-76040i202207-202305

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-76040i202207-202305

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9046705171

main90467-05171

9046705172

main90467-05172

91671B0820

main91671-B0820

9167380616

main91673-80616

9356014012

main93560-14012

9356054010

main93560-54010

9356855014

main93568-55014

31 parts on this diagram · 3 diagrams in section
