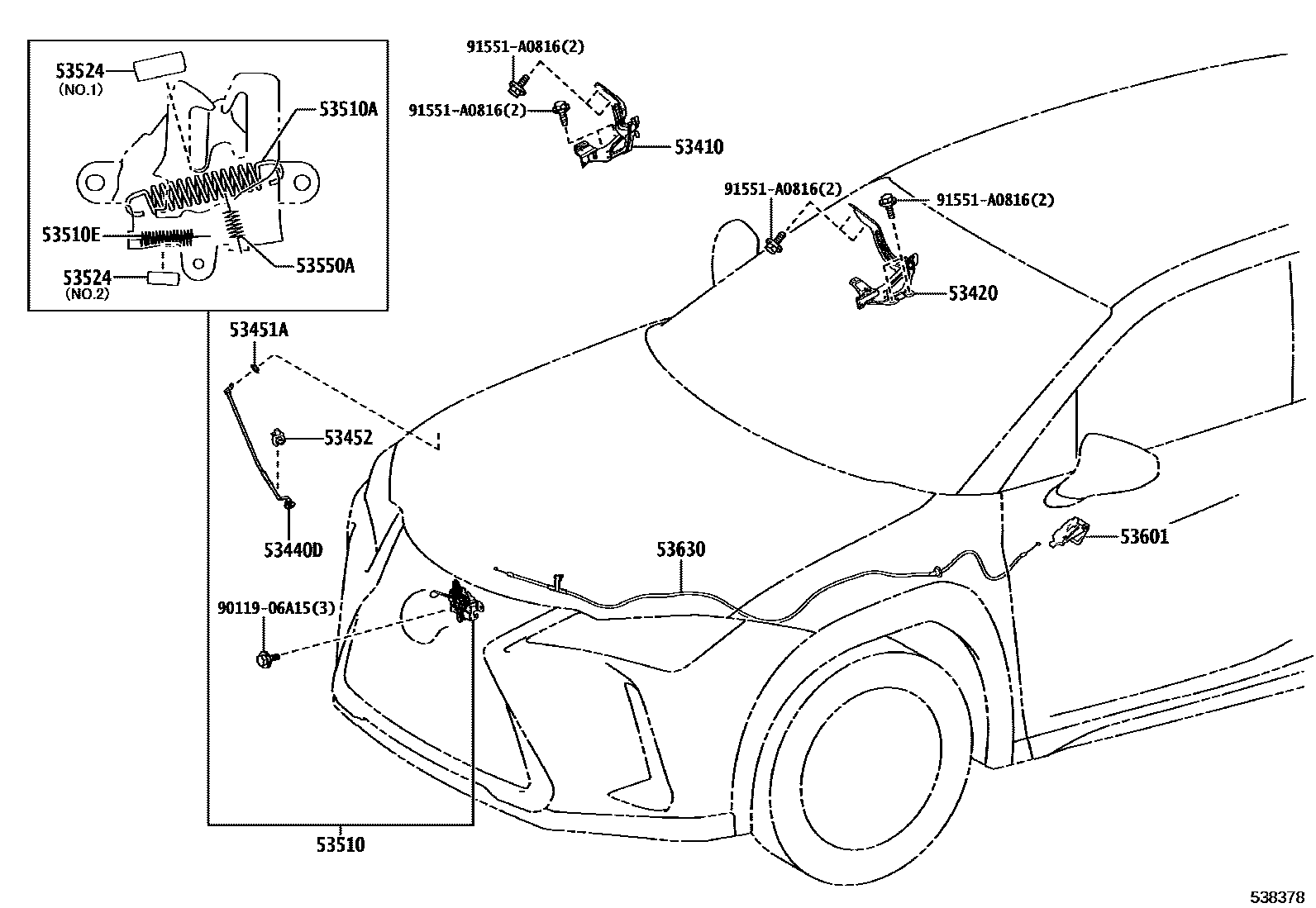

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-76051iMZAH10,15202207-202305

53420HINGE ASSY, HOOD, LH

main53420-76051iKMA10202207-202305

53440DSUPPORT ASSY, HOOD

main53440-76020iKMA10202207-202306

main53440-76021iMZAH10,15202307

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iKMA10202207-202305

53452HOLDER, HOOD STAY

main53452-76020iKMA10202207-202305

53510LOCK ASSY, HOOD

main53510-76071iKMA10202207-202305

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-16080iMZAH10,15202207-202305

WD=1.6,CW=13

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iMZAH11,16202207-202305

WD=0.9,CW=21

53524DAMPER, HOOD LOCK SPRING

main53524-30020iMZAH11,16202207-202305

NO.1:REFER ILLUST.

main53524-30040iMZAH11,16202207-202305

NO.2:REFER ILLUST.

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90506-12063iKMA10202207-202305

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30110-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

main53601-30110-C0iMZAH10,15202207

BLACK,TRIM1#,2#,3#,4#,8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-76030iKMA10202207-202305

9011906A15

main90119-06A15

91551A0816

main91551-A0816

14 parts on this diagram · 1 diagram in section
