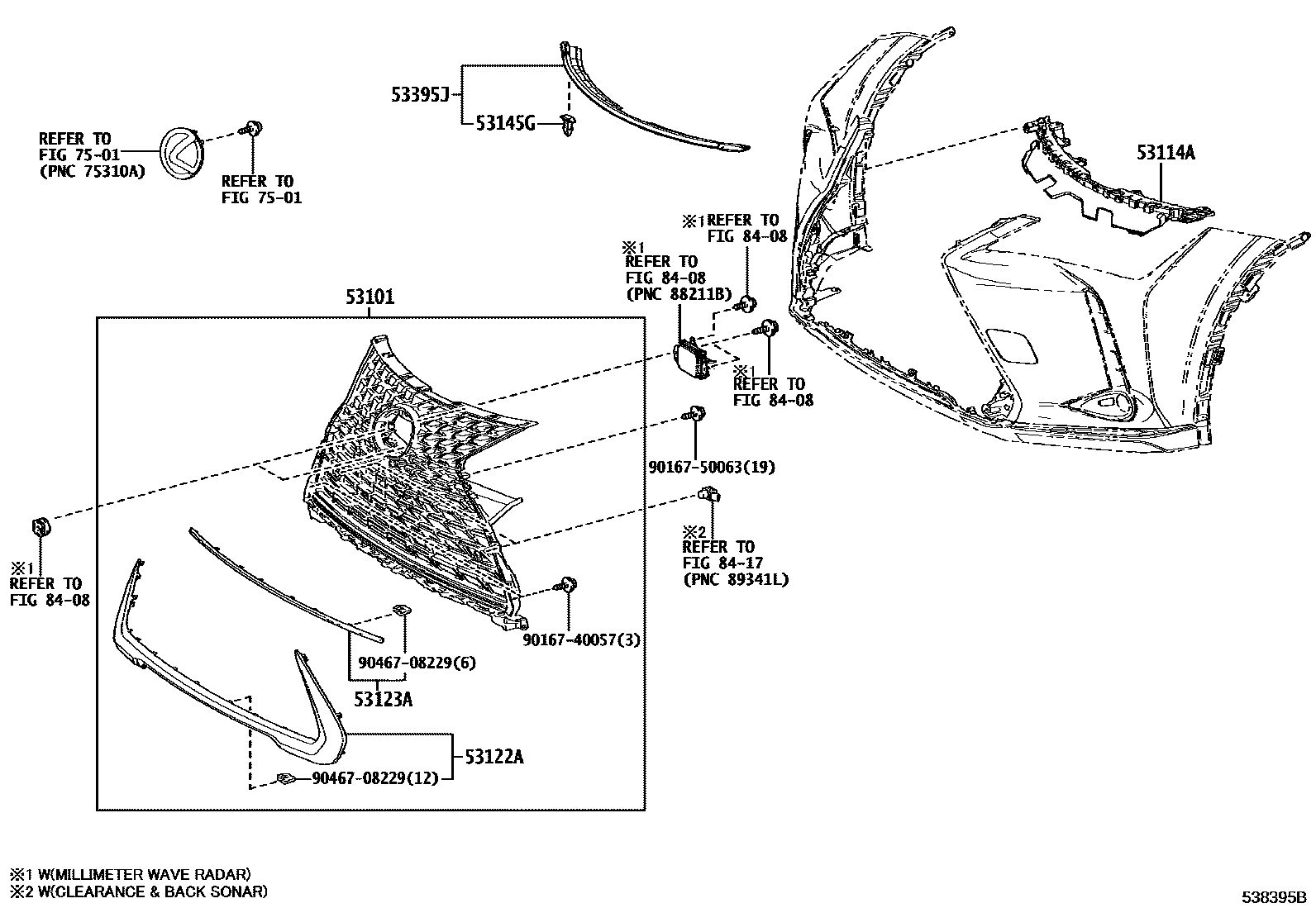

53101GRILLE SUB-ASSY, RADIATOR

main53101-76230supersedes 53101-76220i202207

PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); PLATED,KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)

main53101-76350supersedes 53101-76220i202207

PLATED, F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); PLATED, F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); PLATED,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); PLATED,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)

main53101-76370supersedes 53101-76220i202207

PLATED, F SPORT(DESIGN); PLATED,F SPORT

main53101-76630supersedes 53101-76620i202303-202305

PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); PLATED,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)

main53101-76750i202207

PLATED,CANADA SPEC& PREMIUM PACKAGE&"GRACEFUL EXPLORER"*(G)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); PLATED,CANADA SPEC& PREMIUM PACKAGE&"GRACEFUL EXPLORER"*(G)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)

main53101-76810i202207

PLATED,CANADA SPEC& PREMIUM PACKAGE&"GRACEFUL EXPLORER"*(G)&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)

main53101-76850supersedes 53101-76840i202401

NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); NO PAINT REQ.,KOREA SPEC& PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)

main53101-76A30supersedes 53101-76840i202401

NO PAINT REQ., F SPORT(DESIGN); NO PAINT REQ.,F SPORT

main53101-76A40supersedes 53101-76840i202401

NO PAINT REQ., F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE &*RCTB); NO PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)

53114AGRILLE, RADIATOR, INNER

main53114-76010i202207-202305

main53114-76020supersedes 53114-76010i202207

F SPORT; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); F SPORT(DESIGN); F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-76060i202207-202305

main53122-76080supersedes 53122-76060i202207

F SPORT; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); F SPORT(DESIGN); F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)

53123ACUSHION, RADIATOR GRILLE

main53123-76020i202207

53145GCLIP, RADIATOR GRILLE

main53145-60030×12i202207-202305

53395JSEAL, HOOD TO FRONT END PANEL

main53395-76030i202207-202305

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9016750063

main90167-50063

9046708229

main90467-08229
