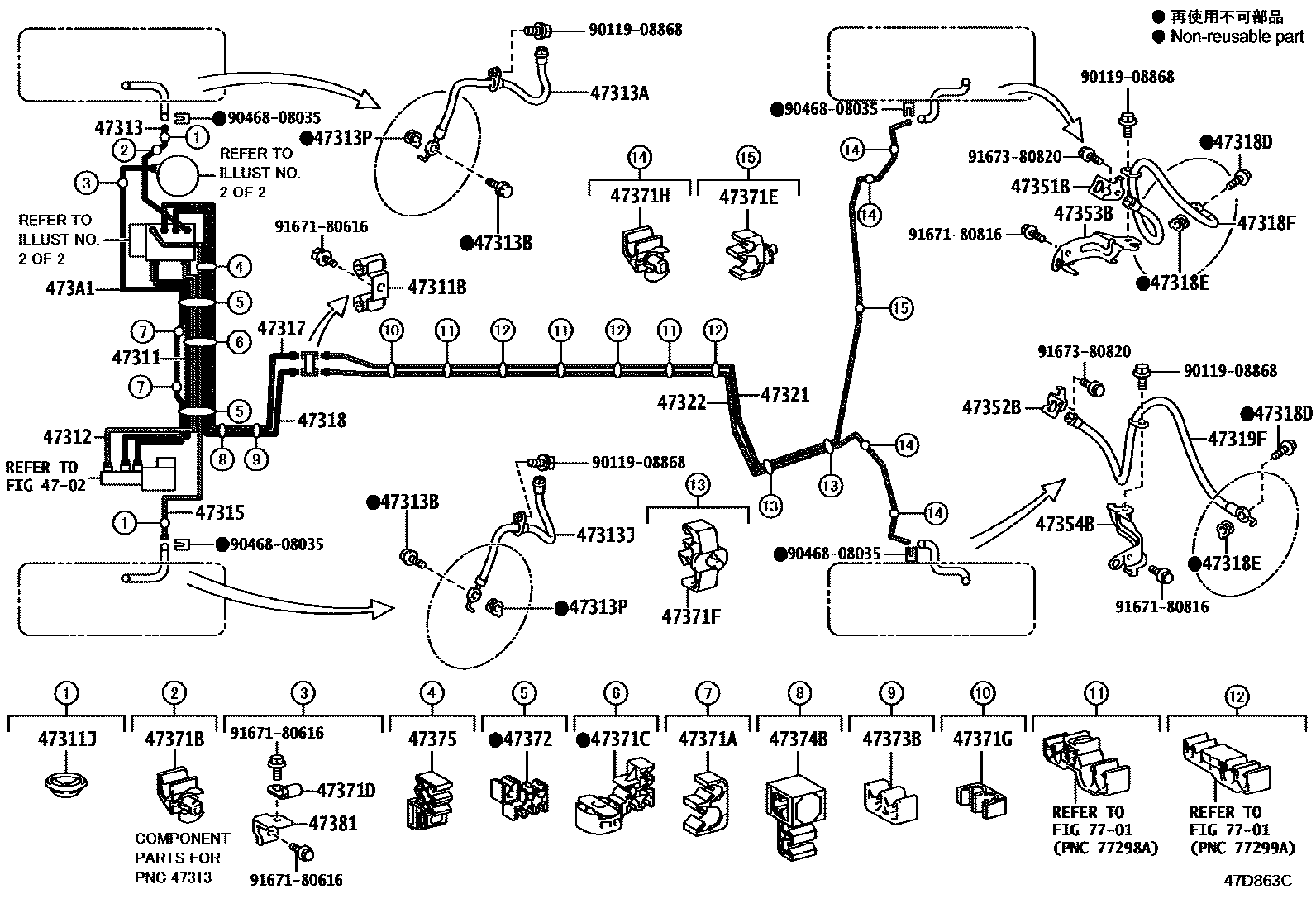

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE ACTUATOR 0005 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-12D00iKMA10202207-202305

main47311-47110iMZAH11,16202401

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iMZAH10,15202207

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-25037×2iMZAH11,16202401

47312TUBE, FRONT BRAKE, NO.2

main47312-12830iKMA10202207-202305

main47312-47090iMZAH11,16202401

47313TUBE, FRONT BRAKE, NO.3

main47313-12A80iKMA10202207-202305

main47313-47090iMZAH11,16202401

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H46iMZAH1#202207-202210

main90947-02K97iKMA10202211-202305

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iKMA10202207-202305

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H47iMZAH1#202207-202210

main90947-02K98iKMA10202211-202305

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iMZAH10,15202207

47315TUBE, FRONT BRAKE, NO.5

main47315-12670iKMA10202207-202305

main47315-47080iMZAH11,16202401

47317TUBE, FRONT BRAKE, NO.7

main47317-12650iKMA10202207-202305

main47317-47080iMZAH11,16202401

47318TUBE, FRONT BRAKE, NO.8

main47318-12780iKMA10202207-202305

main47318-47070iMZAH11,16202401

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iKMA10202207-202305

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iKMA10202207-202305

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H69iMZAH10,15202207

main90947-02J43iKMA10202303-202305

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H70iMZAH10,15202207

main90947-02J44iKMA10202303-202305

47321TUBE, REAR BRAKE, NO.1

main47321-12410iMZAH11,16202401

main47321-76030iKMA10202303-202305

47322TUBE, REAR BRAKE, NO.2

main47322-12570iMZAH11,16202401

main47322-76050iKMA10202303-202305

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iKMA10202207-202305

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iKMA10202207-202305

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-10110iKMA10202207-202305

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-10060iKMA10202207-202305

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33380×2iKMA10202207-202305

main90949-01D91×2iMZAH11,16202401

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01E10iKMA10202207-202305

47371CCLAMP, BRAKE TUBE, NO.7

main47371-76050iKMA10202207-202305

47371DCLAMP, BRAKE TUBE, NO.8

main90461-10854iKMA10202207-202305

47371ECLAMP, BRAKE TUBE, NO.9

main77285-12170iMZAH10,15202207

47371FCLAMP, BRAKE TUBE, NO.10

main47371-76030×6iKMA10202303-202305

main77286-12230×2iMZAH10,15202207

main77286-47050×2iMZAH11,16202401

47371GCLAMP, BRAKE TUBE, NO.11

main90464-00904iKMA10202207-202305

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01E10×3iKMA10202303-202305

47372CLAMP, BRAKE TUBE, NO.2

main47371-76040×2iKMA10202207-202305

main90949-01E40×3iMZAH11,16202401

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D91iKMA10202207-202305

main90949-01D92iMZAH11,16202401

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E33iKMA10202207-202305

main90949-01E79iMZAH11,16202401

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E51iKMA10202207-202305

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-47070iKMA10202207-202305

473A1TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER

main473A1-76030iKMA10202207-202305

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9046808035

main90468-08035

9167180616

main91671-80616

9167180816

main91671-80816

9167380820

main91673-80820
