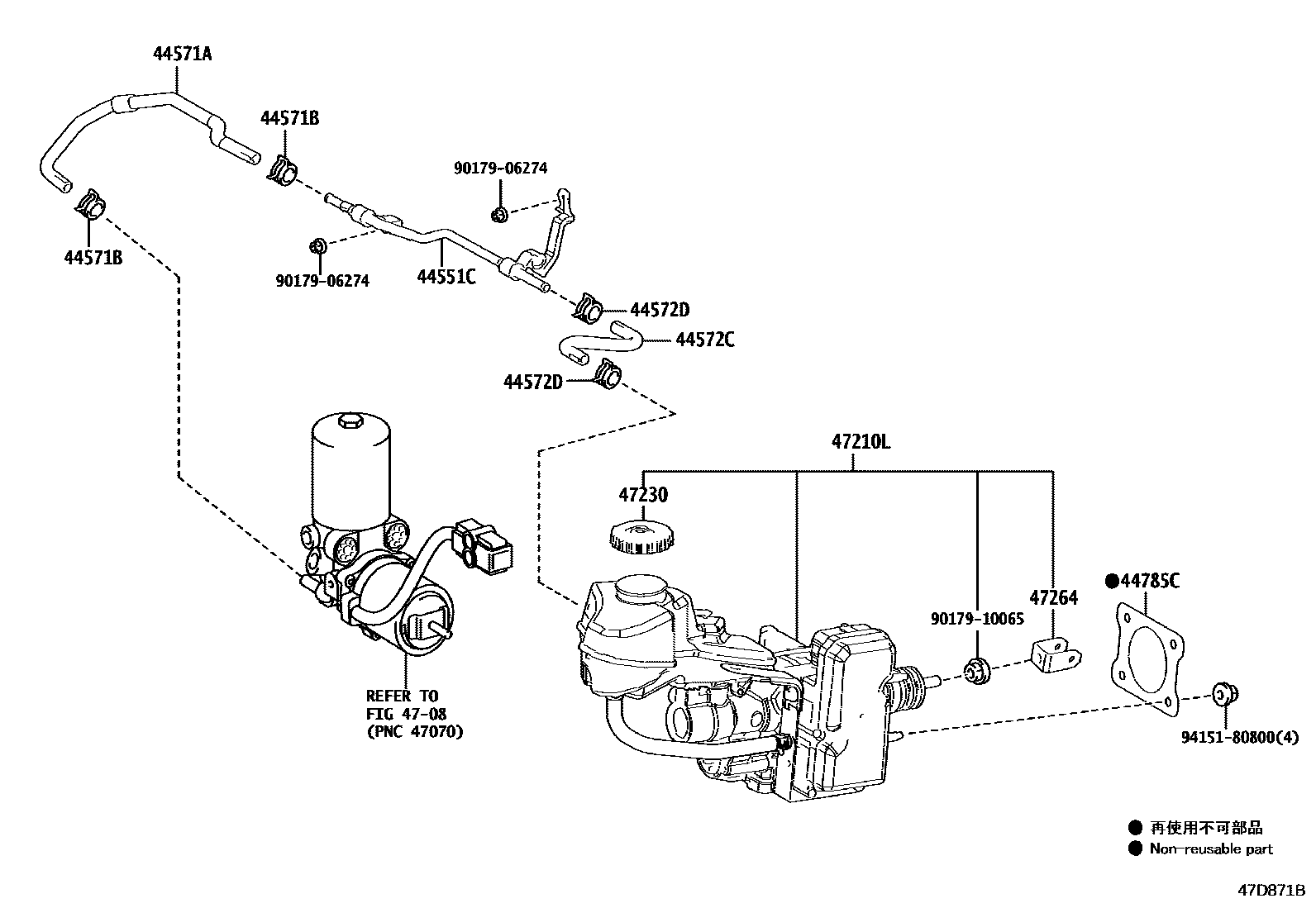

BRAKE MASTER CYLINDER
44551CTUBE, BRAKE ACTUATOR, NO.1
44571AHOSE, BRAKE ACTUATOR, NO.1
44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
44572CHOSE, BRAKE ACTUATOR, NO.2
44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
44785CGASKET, BRAKE BOOSTER
4708BRAKE TUBE & CLAMP
47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER
KOREA SPEC; KOREA SPEC& LUXURY PACKAGE; KOREA SPEC& PREMIUM PACKAGE; KOREA SPEC&F SPORT
TIRE & DISC WHEEL-225/50R18,SUMMER TIRE,GRAY PAINTED
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47264CLEVIS, MASTER CYLINDER PUSH ROD
9017906274
main90179-06274
9017910065
main90179-10065
9415180800
main94151-80800
13 parts on this diagram · 2 diagrams in section
