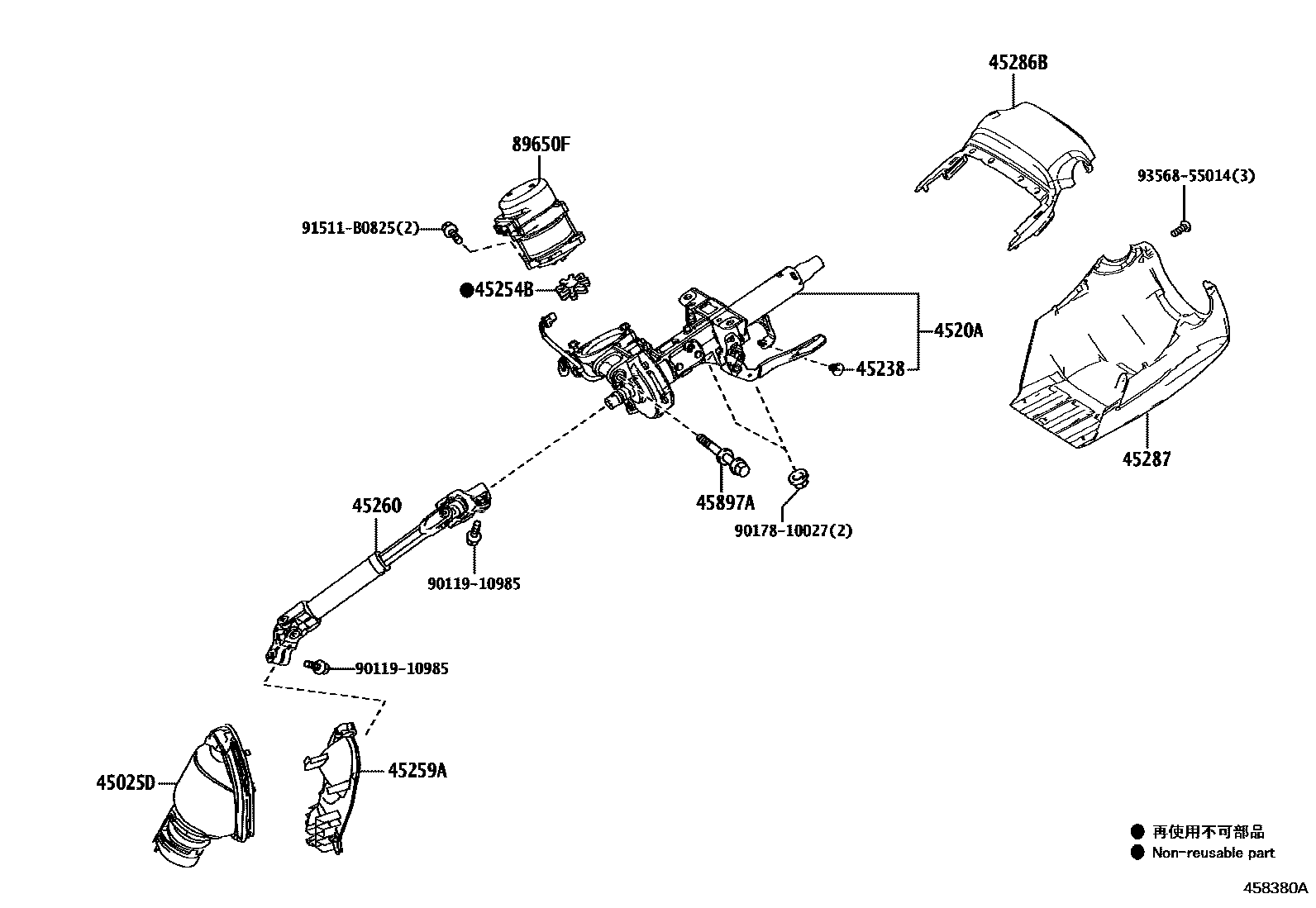

STEERING COLUMN & SHAFT

0001 1MANUAL TILT & TELESCOPIC 0002 1POWER TILT & TELESCOPIC

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-76010iMZAH11,16202401

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-76040supersedes 4520A-76070iKMA10202303-202305

main4520A-76110supersedes 4520A-76080iMZAH11,16202401-202512

STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010supersedes 45238-52010iKMA10202303-202305

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMZAH11,16202401

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-76030iMZAH10,15202207

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-76030iKMA10202207-202305

45286BCOVER, STEERING COLUMN, UPR

main45286-76020-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-76020-C0iMZAH10,15202207

BLACK,TRIM1#,2#,3#,4#,8#

main45024-76030-C0supersedes 45024-76020-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iMZAH10,15202207

main90119-10A34iMZAH11,16202401

89650FCOMPUTER ASSY, POWER STEERING W/MOTOR

main89650-76530iMZAH10,15202207

main89650-76610iMZAH11,16202401

main89650-76560supersedes 89650-76550iKMA10202303-202305

TIRE & DISC WHEEL-225/50R18,SUMMER TIRE,GRAY PAINTED

9011910985

main90119-10985

9017810027

main90178-10027

91511B0825

main91511-B0825

9356855014

main93568-55014

14 parts on this diagram · 2 diagrams in section
