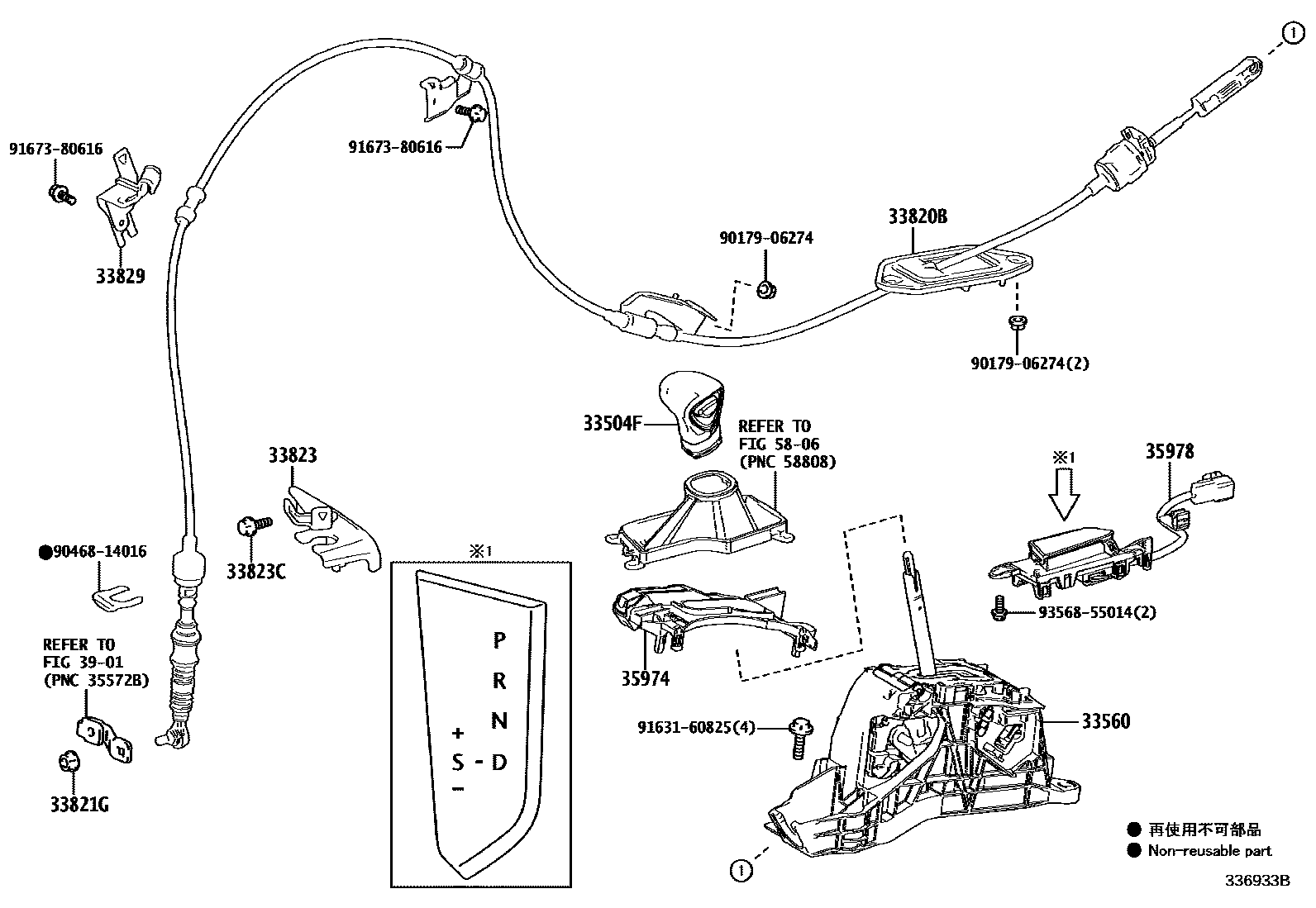

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-33200-C0iMZAH10,15202207

BLACK,TRIM1#,2#,4#,8#

main33504-76090-C3iKMA10202303-202305

BLACK/BLACK,TRIM1#,2#,4#

main33504-78030-C0iMZAH11,16202401

BLACK,TRIM1#,2#,4#,8#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-76030iMZAH10,15202207

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-76031iMZAH10,15202207

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iMZAH10,15202207

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12350iMZAH10,15202207

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iMZAH10,15202207

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-12180iMZAH10,15202207

35974HOUSING, POSITION INDICATOR, LOWER

main35974-76010iMZAH10,15202207

35978INDICATOR, SHIFT POSITION

main35978-76020iMZAH10,15202207

main35978-76050iKMA10202303-202305

3901

5806

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

9167380616

main91673-80616

9356855014

main93568-55014

16 parts on this diagram · 3 diagrams in section
