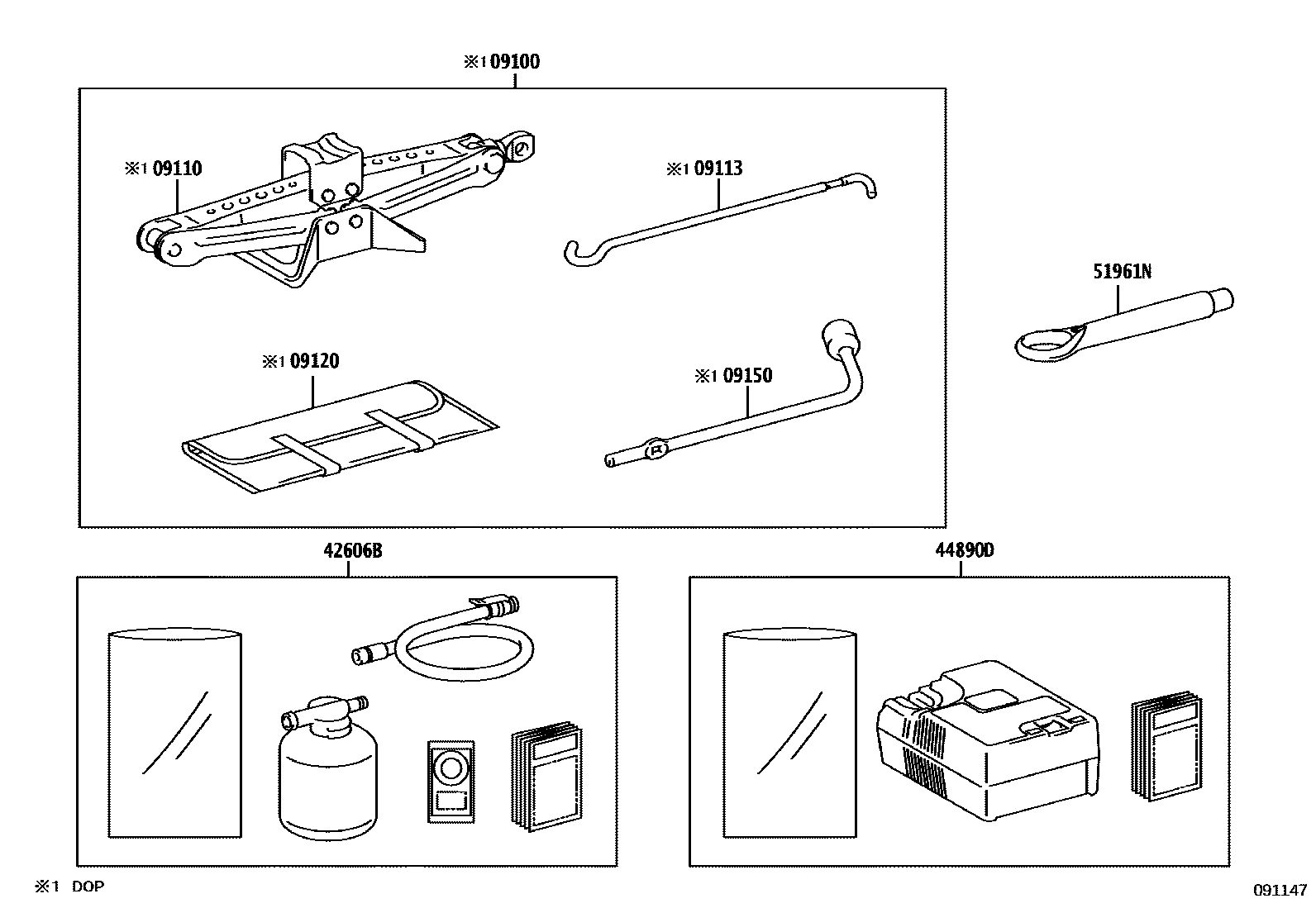

STANDARD TOOL

09100TOOL SET, STANDARD

JACK-WITH(DOP)&TOOL(PLANT INSTALL)-WITH

09110JACK ASSY

JACK-WITH(DOP)&TOOL(PLANT INSTALL)-WITH

09113HANDLE, JACK

JACK-WITH(DOP)&TOOL(PLANT INSTALL)-WITH

09120BAG, TOOL

JACK-WITH(DOP)&TOOL(PLANT INSTALL)-WITH

09150WRENCH, HUB NUT BOX

JACK-WITH(DOP)&TOOL(PLANT INSTALL)-WITH

42606BREPAIR KIT, TUBELESS TIRE

main42606-46040i202303-202305

main42606-33010i202207-202212

KOREA SPEC&TIRE & DISC WHEEL-215/60R17, ALL SEASON,GRAY PAINTED; KOREA SPEC&TIRE & DISC WHEEL-215/60R17,ALL SEASON TIRE,SILVER PAINTED

KOREA SPEC&TIRE & DISC WHEEL-215/60R17, ALL SEASON,GRAY PAINTED

44890DCOMPRESSOR ASSY, AIR

main44890-42050i202303-202305

main44890-12011i202207-202212

KOREA SPEC&TIRE & DISC WHEEL-215/60R17, ALL SEASON,GRAY PAINTED; KOREA SPEC&TIRE & DISC WHEEL-215/60R17,ALL SEASON TIRE,SILVER PAINTED

51961NHOOK, TRANSPORT

main51961-33010×3i202207-202305

8 parts on this diagram · 1 diagram in section
