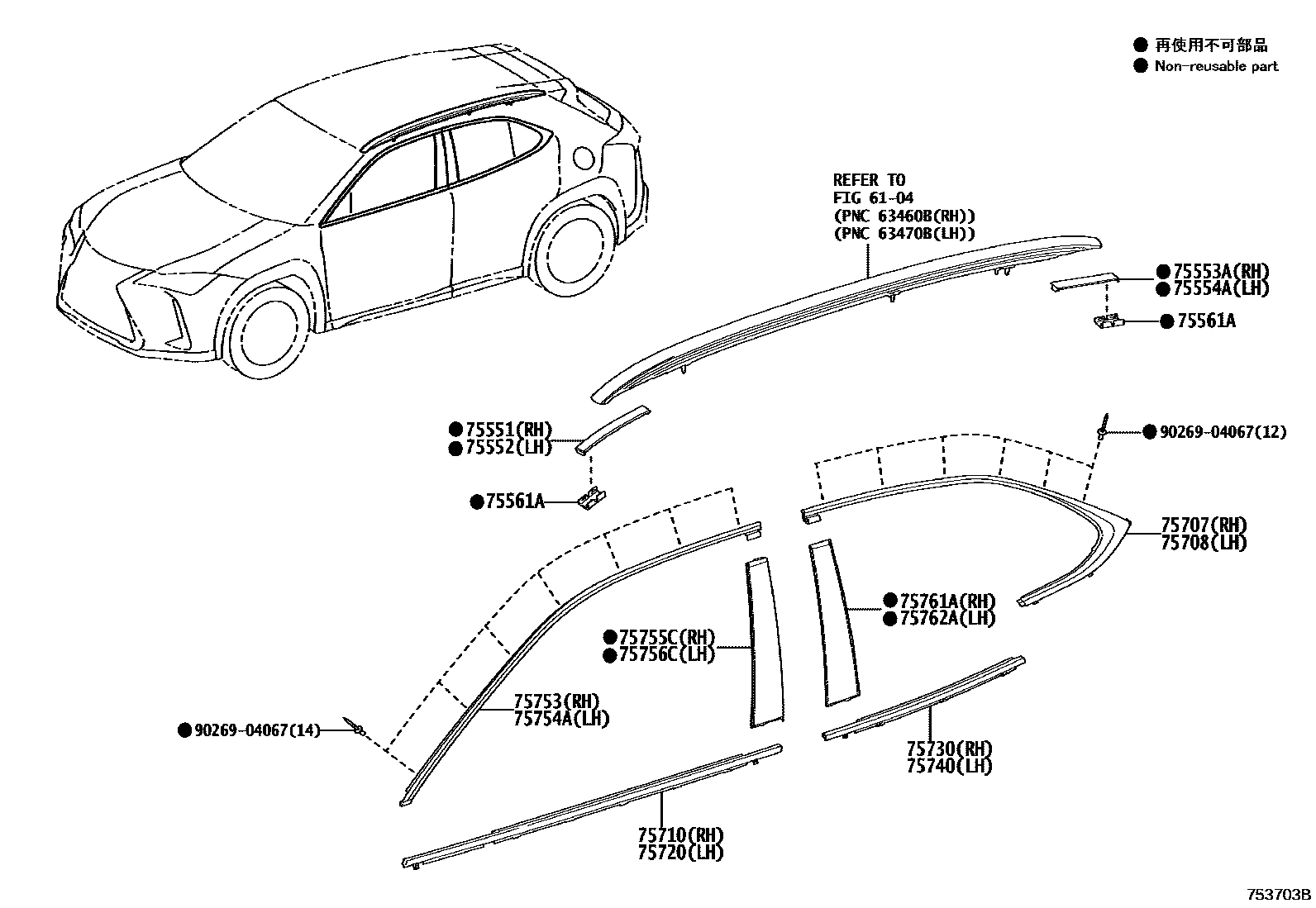

SIDE MOULDING
6104ROOF PANEL & BACK WINDOW GLASS
75551MOULDING, ROOF DRIP SIDE FINISH, RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
75552MOULDING, ROOF DRIP SIDE FINISH, LH
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
9026904067
main90269-04067
19 parts on this diagram · 2 diagrams in section
