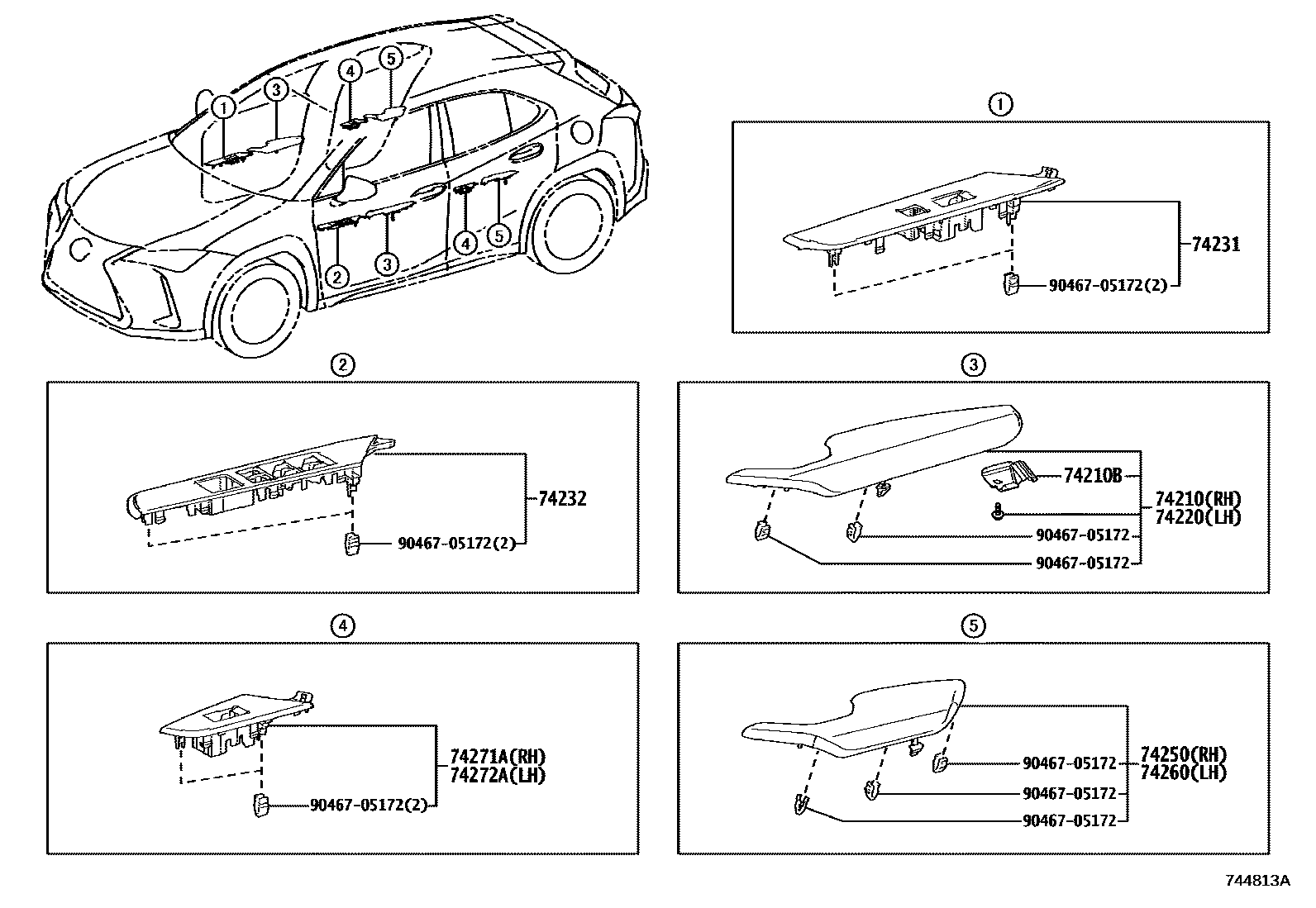

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
RICH CREAM,TRIM00
WHITE,TRIM01
WHITE ASH,TRIM1#,8#
BLACK,TRIM20,21
RED,TRIM3#
OCHER,TRIM4#
BLUE,TRIM02,23; BLUE,TRIM02,23,25
74210BBRACKET, ARMREST SET
RH
LH
74220ARMREST ASSY, FRONT, LH
RICH CREAM,TRIM00
WHITE,TRIM01
WHITE ASH,TRIM1#,8#
BLACK,TRIM20,21
RED,TRIM3#
OCHER,TRIM4#
BLUE,TRIM02,23; BLUE,TRIM02,23,25
74231PANEL, FRONT ARMREST BASE, UPPER RH
F SPORT; LUXURY PACKAGE
74232PANEL, FRONT ARMREST BASE, UPPER LH
F SPORT; LUXURY PACKAGE
74250ARMREST ASSY, REAR RH
RICH CREAM,TRIM00
WHITE,TRIM01
WHITE ASH,TRIM1#,8#
BLACK,TRIM20,21
RED,TRIM3#
OCHER,TRIM4#
BLUE,TRIM02,23; BLUE,TRIM02,23,25
74260ARMREST ASSY, REAR LH
RICH CREAM,TRIM00
WHITE,TRIM01
WHITE ASH,TRIM1#,8#
BLACK,TRIM2#
RED,TRIM3#
OCHER,TRIM4#
BLUE,TRIM02,23; BLUE,TRIM02,23,25
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
F SPORT; LUXURY PACKAGE
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
F SPORT; LUXURY PACKAGE
9046705172
main90467-05172
10 parts on this diagram · 2 diagrams in section
