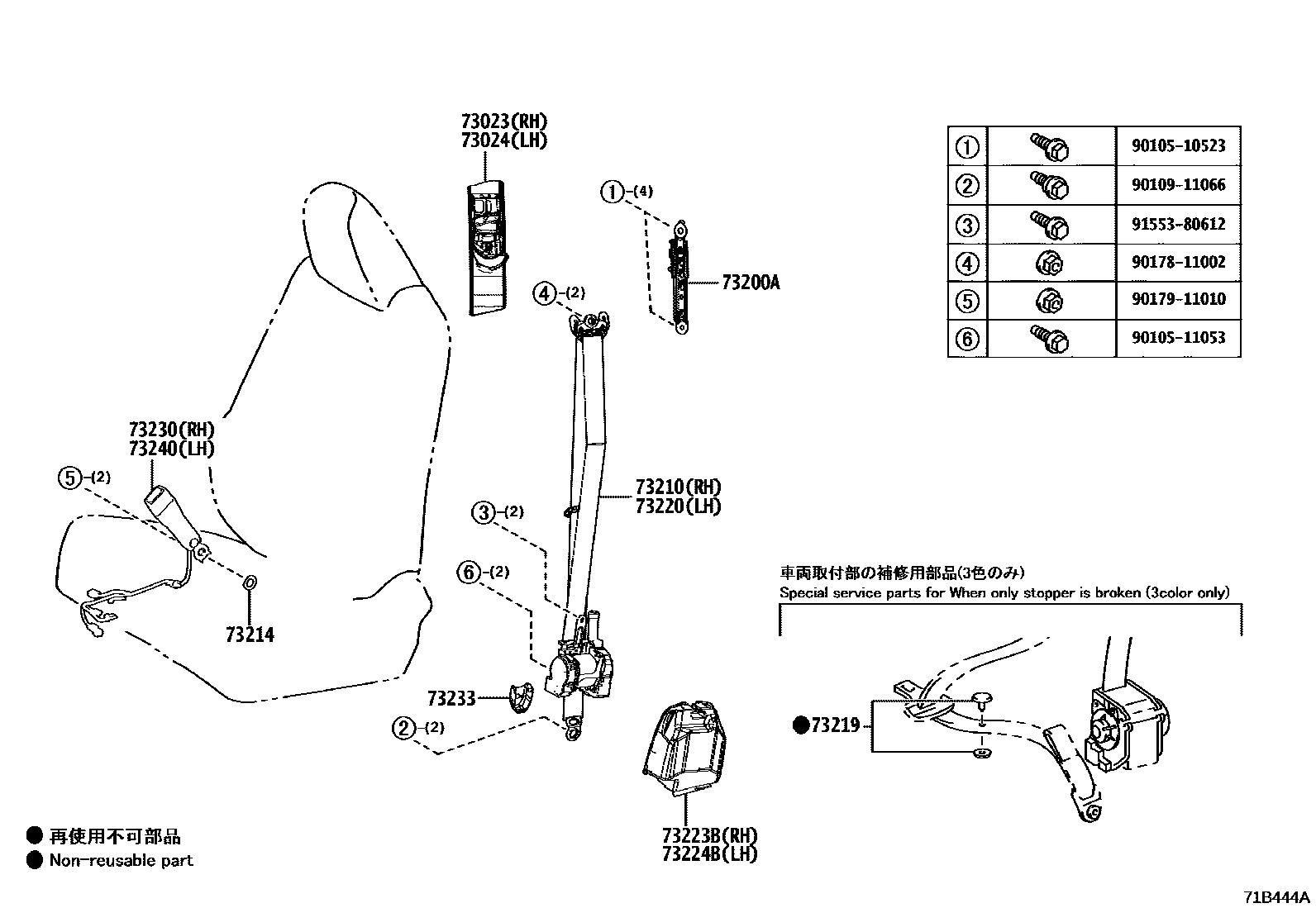

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
BLACK,TRIM0#,1#,2#,3#,4#,8#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
BLACK,TRIM0#,1#,2#,3#,4#,8#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM01,02,1#,20,21,23,3#,4#,8#
BLUE,TRIM02,23
BLUE,TRIM02,23,25
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM01,02,1#,20,21,23,3#,4#,8#
BLUE,TRIM02,23
BLUE,TRIM02,23,25
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM0#,1#,2#,3#,4#,8#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM0#,1#,2#,3#,4#,8#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM0#,1#,2#,3#,4#,8#
9010510523
main90105-10523
9010511053
main90105-11053
9010911066
main90109-11066
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
18 parts on this diagram · 2 diagrams in section
