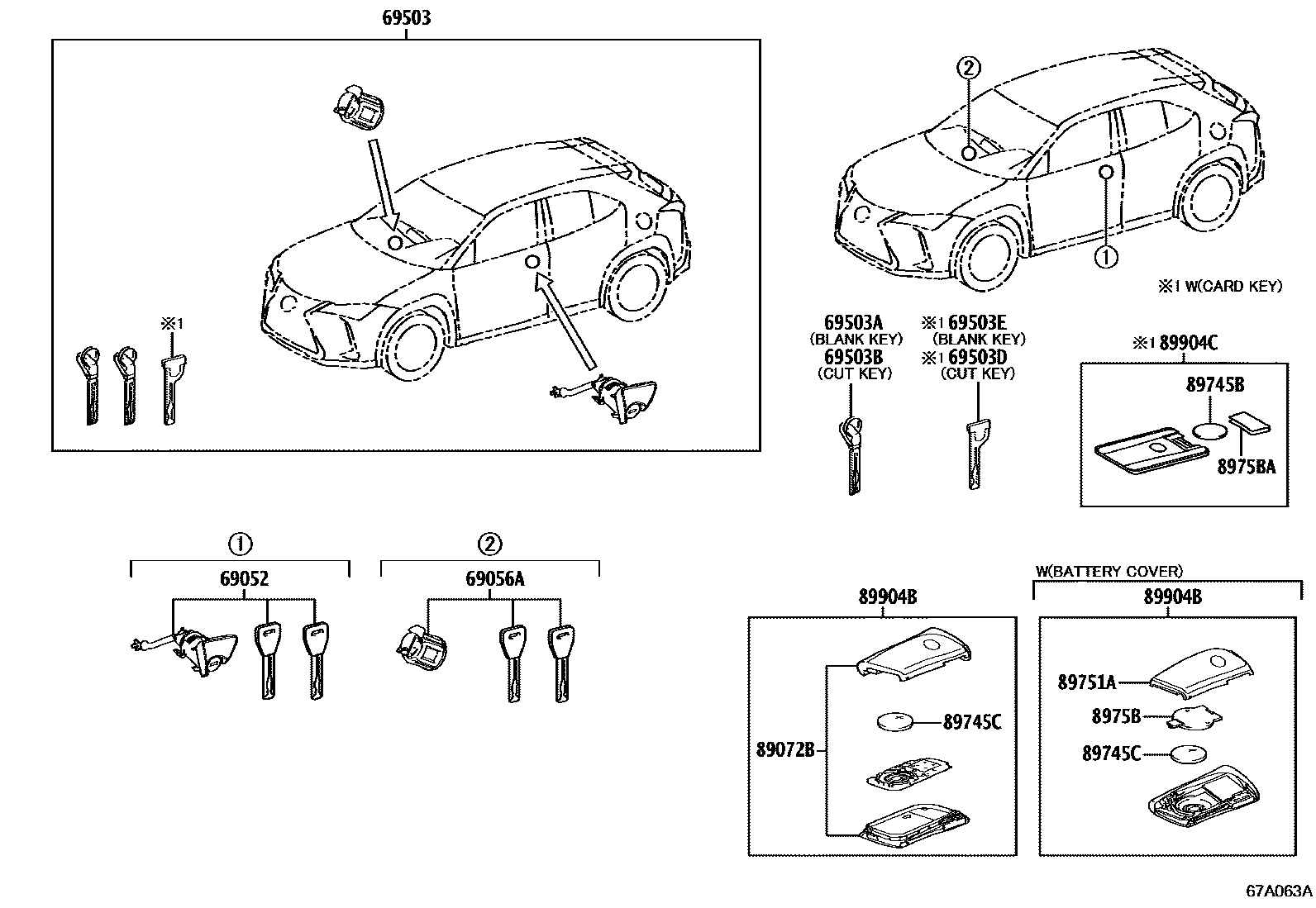

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
SMART KEY(CARD TYPE)-WITH
69503AKEY, BLANK
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
MASTER KEY,SMART KEY(CARD TYPE)-WITH
69503EKEY, BLANK(CARD KEY)
MASTER KEY
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
HANDS FREE POWER BACK DOOR-WITH
HANDS FREE POWER BACK DOOR-WITH
89745BBATTERY, TRANSMITTER(CARD KEY)
CR2412,SMART KEY(CARD TYPE)-WITH
89745CBATTERY, TRANSMITTER
CR2032
CR2032
89751ACOVER, TRANSMITTER HOUSING
KOREA SPEC; KOREA SPEC&HANDS FREE POWER BACK DOOR-WITH
8975BCOVER, TRANSMITTER BATTERY HOUSING
KOREA SPEC; KOREA SPEC&HANDS FREE POWER BACK DOOR-WITH
8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)
SMART KEY(CARD TYPE)-WITH
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
HANDS FREE POWER BACK DOOR-WITH
HANDS FREE POWER BACK DOOR-WITH
KOREA SPEC
KOREA SPEC&HANDS FREE POWER BACK DOOR-WITH
HANDS FREE POWER BACK DOOR-WITH
HANDS FREE POWER BACK DOOR-WITH
HANDS FREE POWER BACK DOOR-WITH
KOREA SPEC
KOREA SPEC&HANDS FREE POWER BACK DOOR-WITH
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
SMART KEY(CARD TYPE)-WITH
SMART KEY(CARD TYPE)-WITH
SMART KEY(CARD TYPE)-WITH
SMART KEY(CARD TYPE)-WITH
KOREA SPEC&SMART KEY(CARD TYPE)-WITH
SMART KEY(CARD TYPE)-WITH
SMART KEY(CARD TYPE)-WITH
KOREA SPEC&SMART KEY(CARD TYPE)-WITH
15 parts on this diagram · 1 diagram in section
