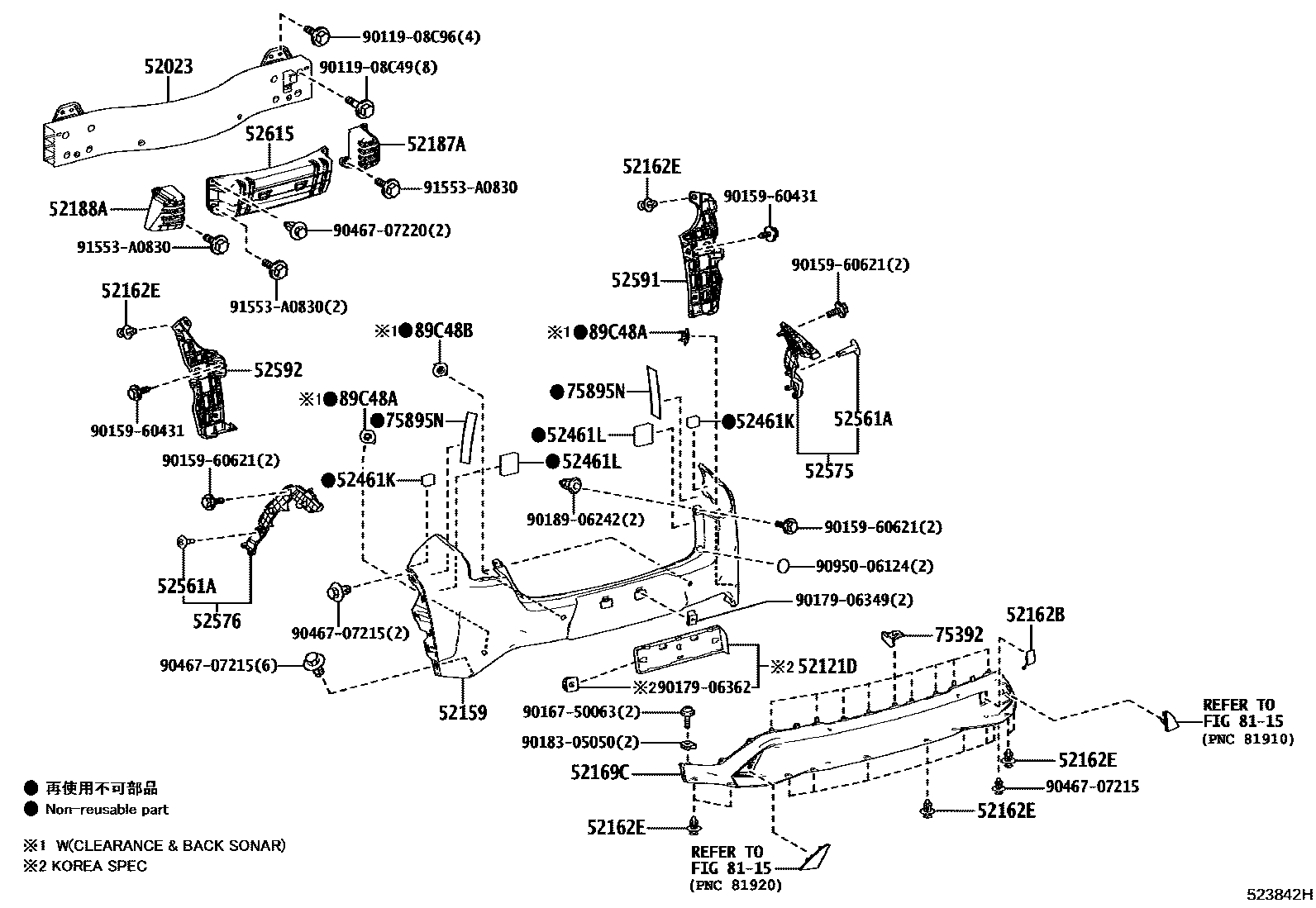

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52121DBRACKET, REAR LICENSE PLATE MOUNTING
KOREA SPEC&LUXURY PACKAGE; KOREA SPEC&PREMIUM PACKAGE
52159COVER, REAR BUMPER
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
52162BPLATE, REAR BUMPER, NO.1
F SPORT; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
F SPORT; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
F SPORT; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
NO PAINT REQ.,F SPORT; NO PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT); NO PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); NO PAINT REQ.,KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
52187AREINFORCEMENT, REAR BUMPER ARM, RH
52188AREINFORCEMENT, REAR BUMPER ARM, LH
52461KPAD, REAR BUMPER, NO.1
52461LPAD, REAR BUMPER, NO.2
52561ACLIP(FOR REAR BUMPER RETAINER)
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
75392RETAINER, OUTSIDE MOULDING
75895NTAPE, MOULDING, NO.1
8115REFLEX REFLECTOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVERME.,1J4,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),AMBER CS.,4X2,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1,RH; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVERME.,1J4,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),AMBER CS.,4X2,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1,LH; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1,LH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVERME.,1J4,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),AMBER CS.,4X2,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1,RH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,RH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1,RH; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVERME.,1J4,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),AMBER CS.,4X2,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1,LH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC CHROME,1L1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,LH; F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1,LH; PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1,LH
9011908C49
main90119-08C49
9011908C96
main90119-08C96
9015960431
main90159-60431
9015960621
main90159-60621
9016750063
main90167-50063
9017906349
main90179-06349
9017906362
main90179-06362
9018305050
main90183-05050
9018906242
main90189-06242
9046707215
main90467-07215
9046707220
main90467-07220
9095006124
main90950-06124
91553A0830
main91553-A0830
34 parts on this diagram · 2 diagrams in section
